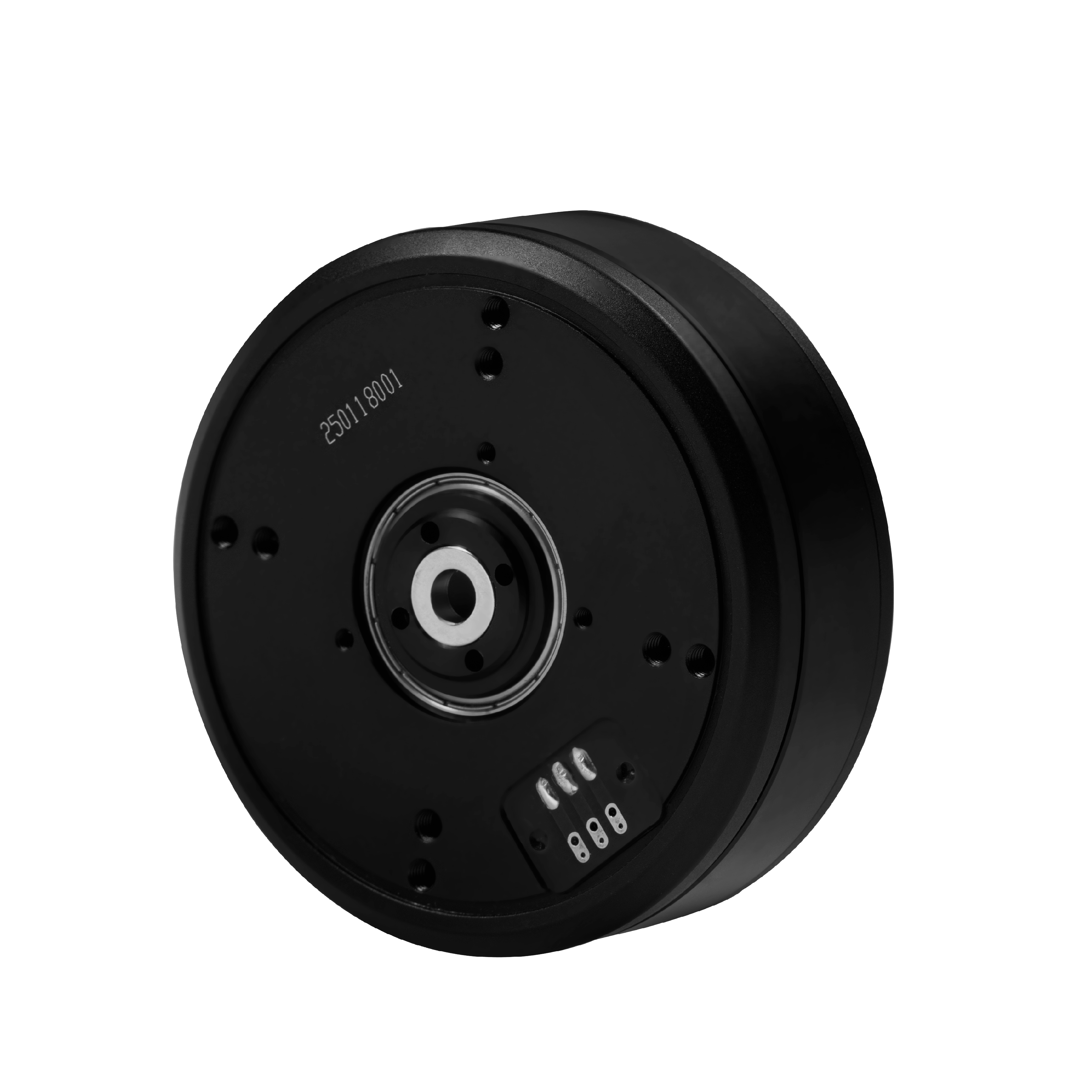

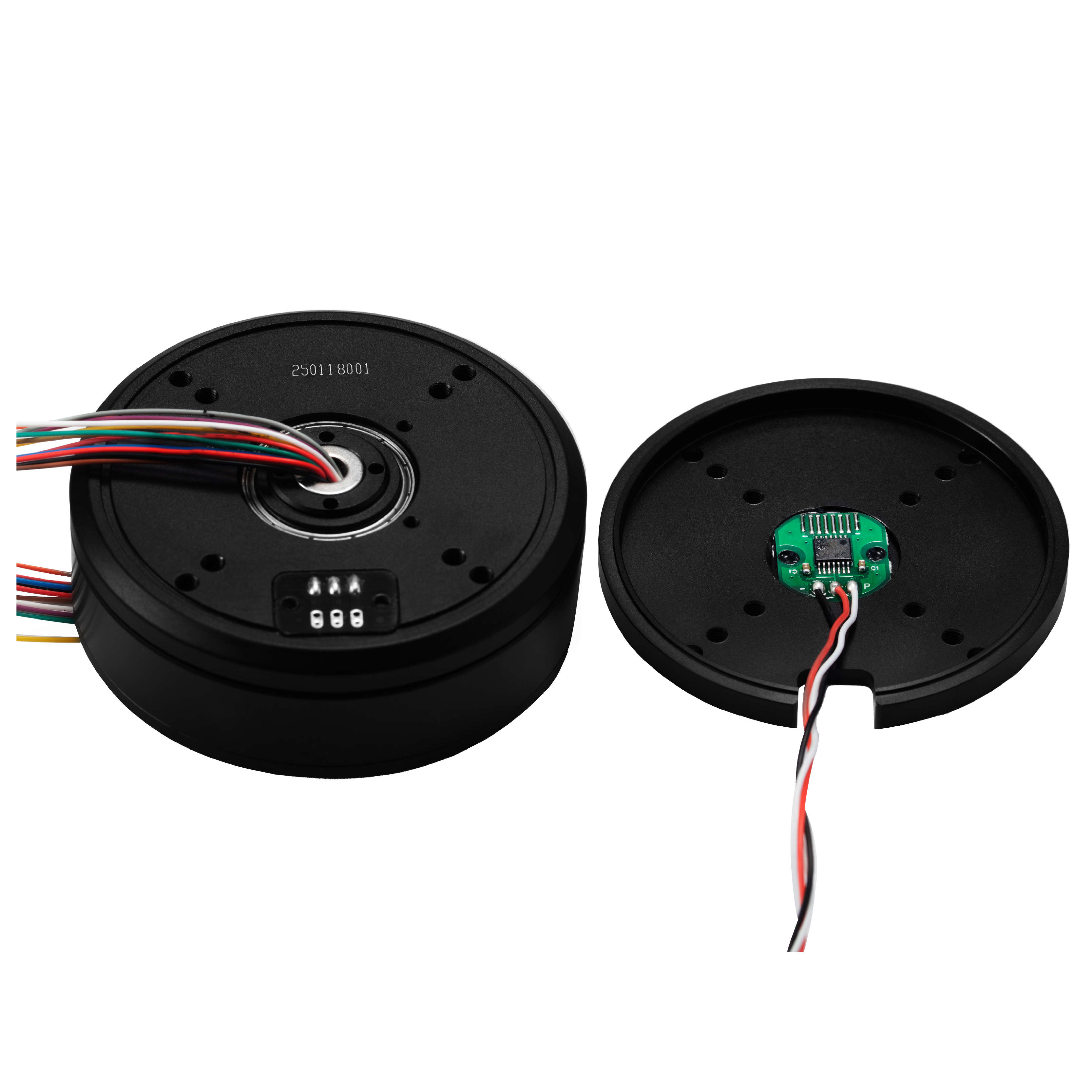

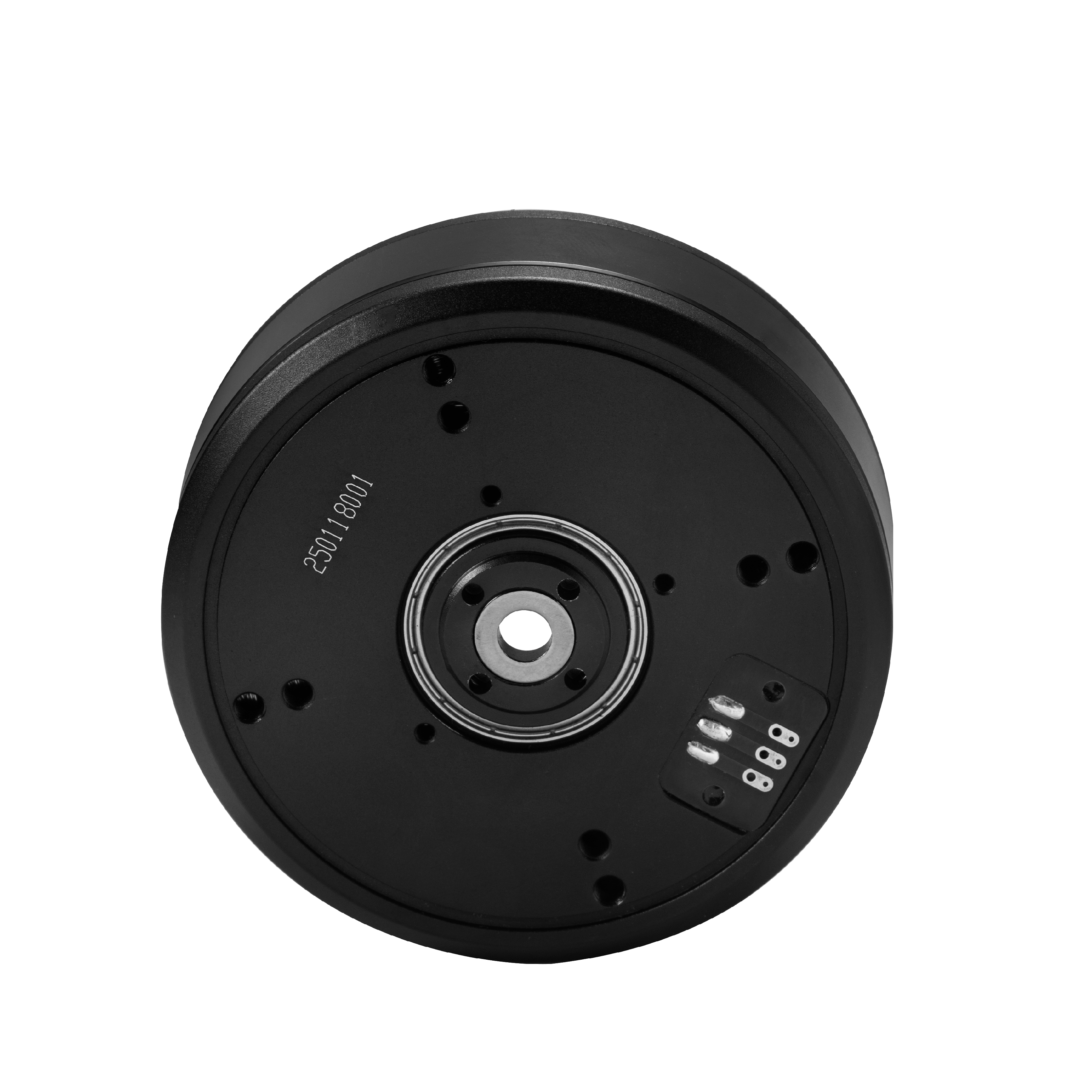

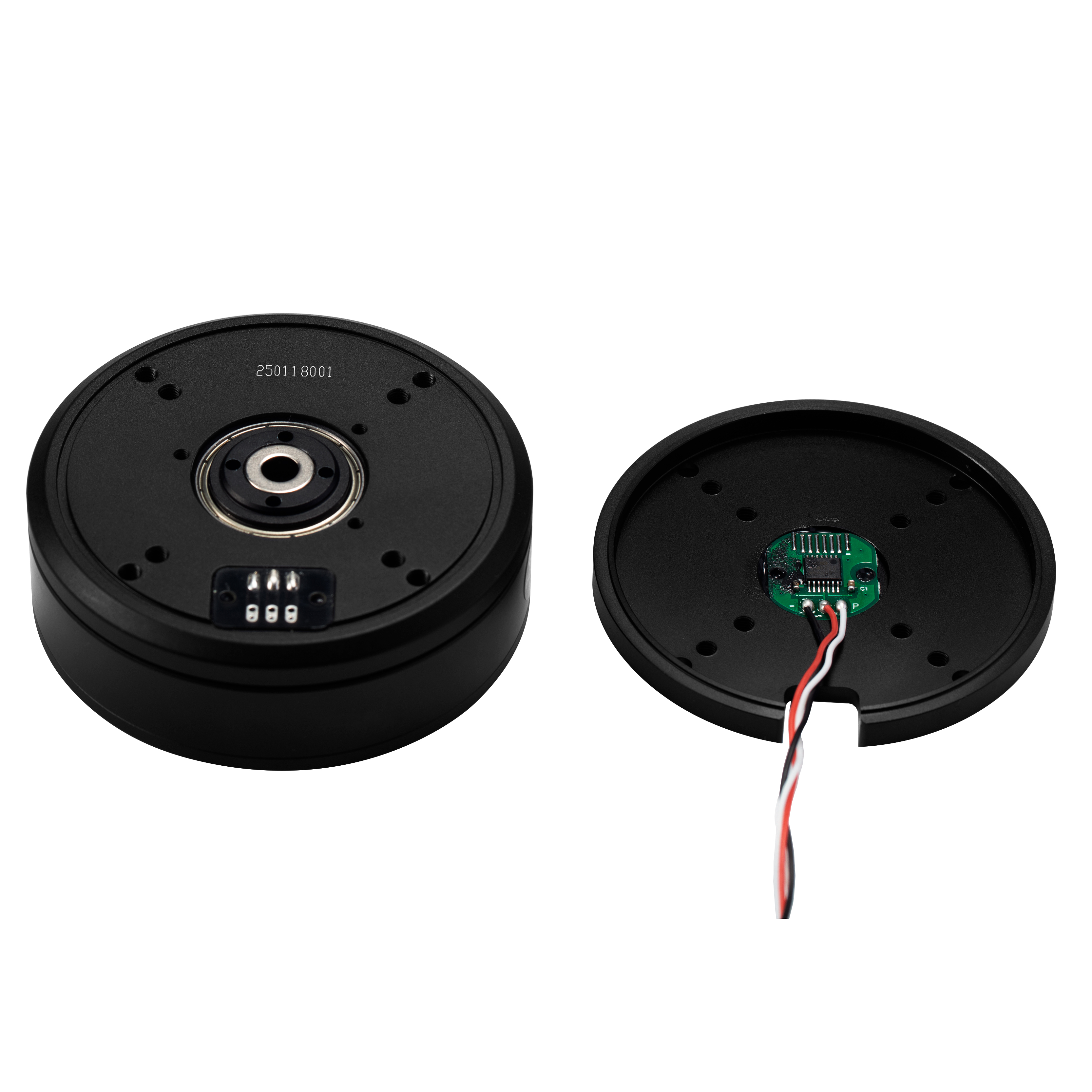

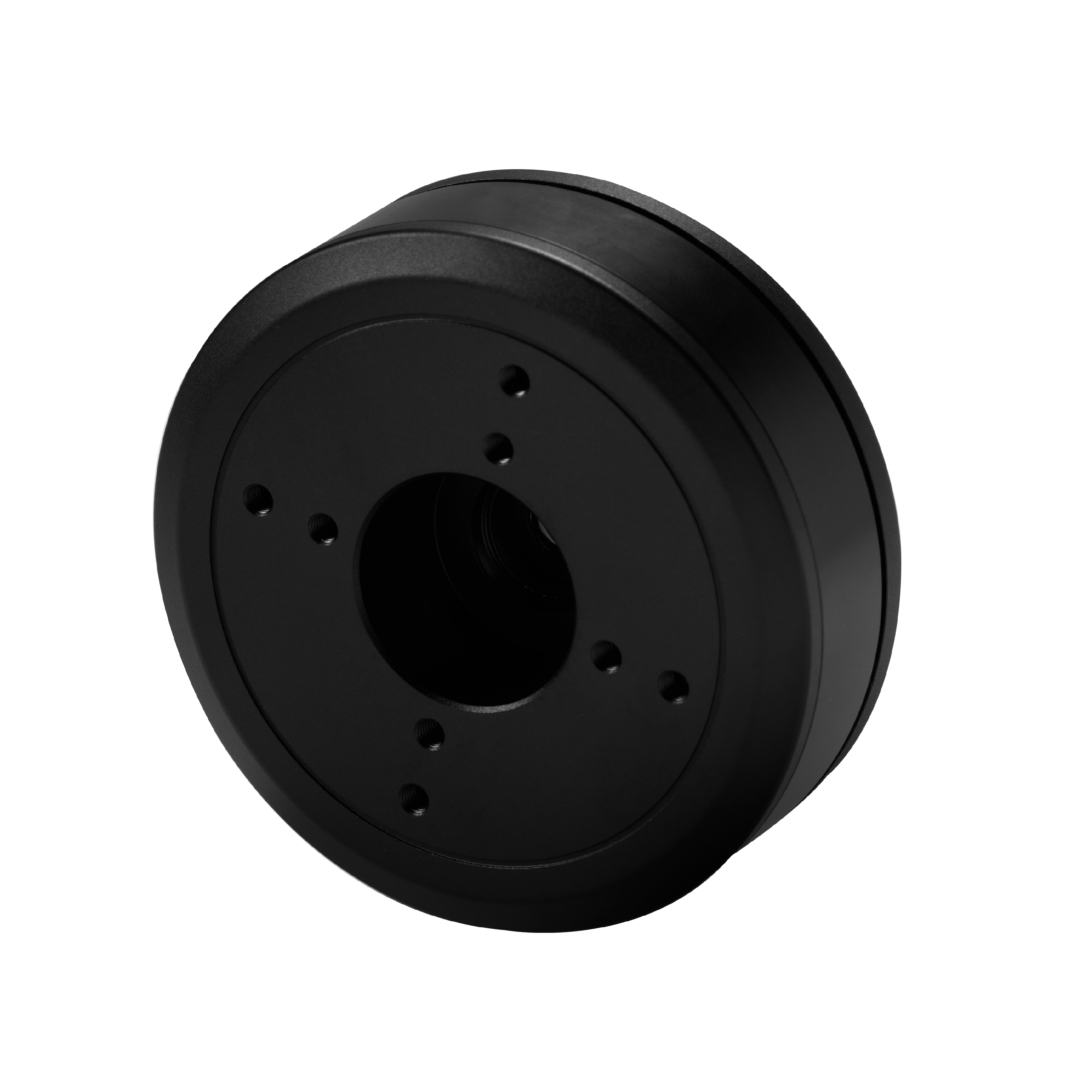

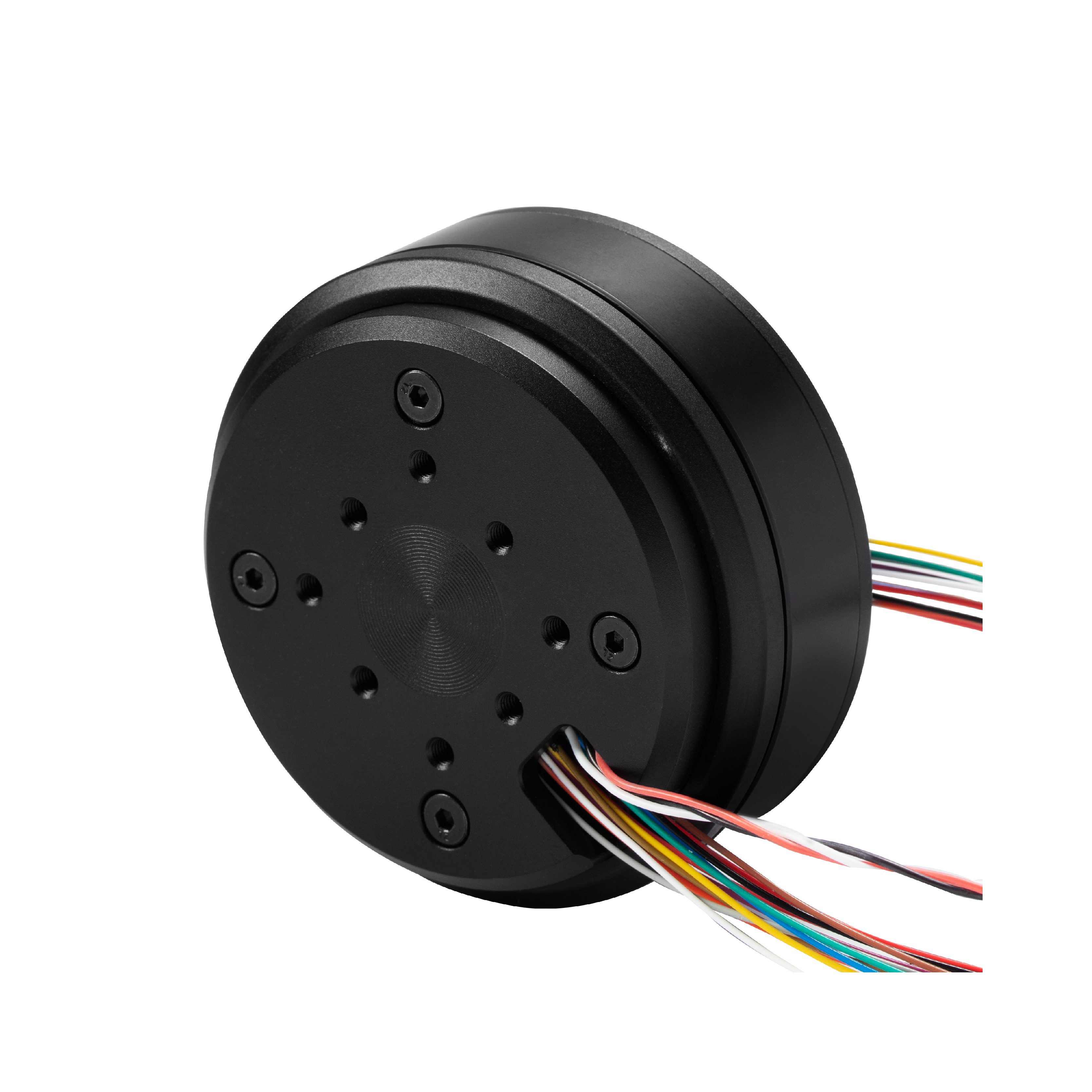

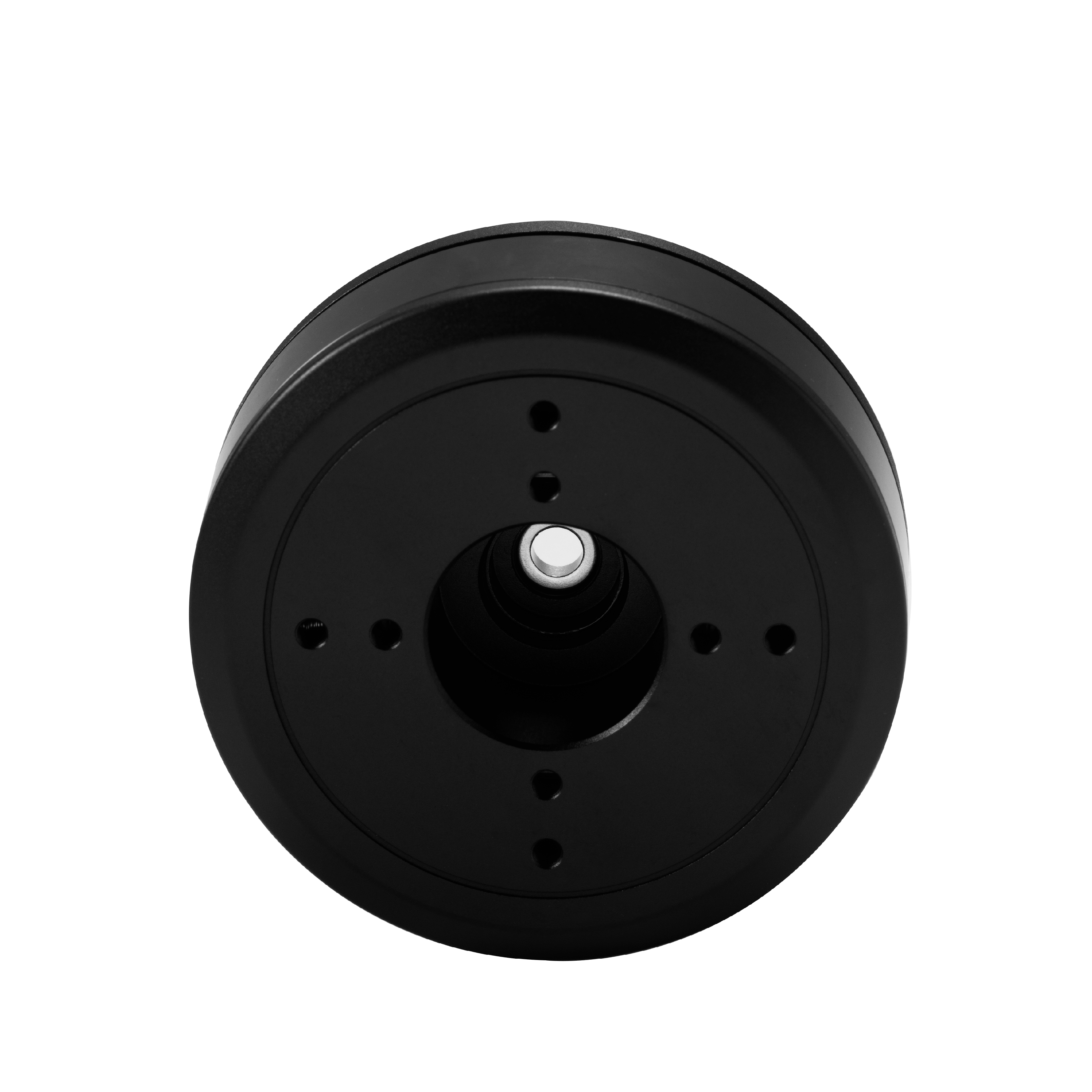

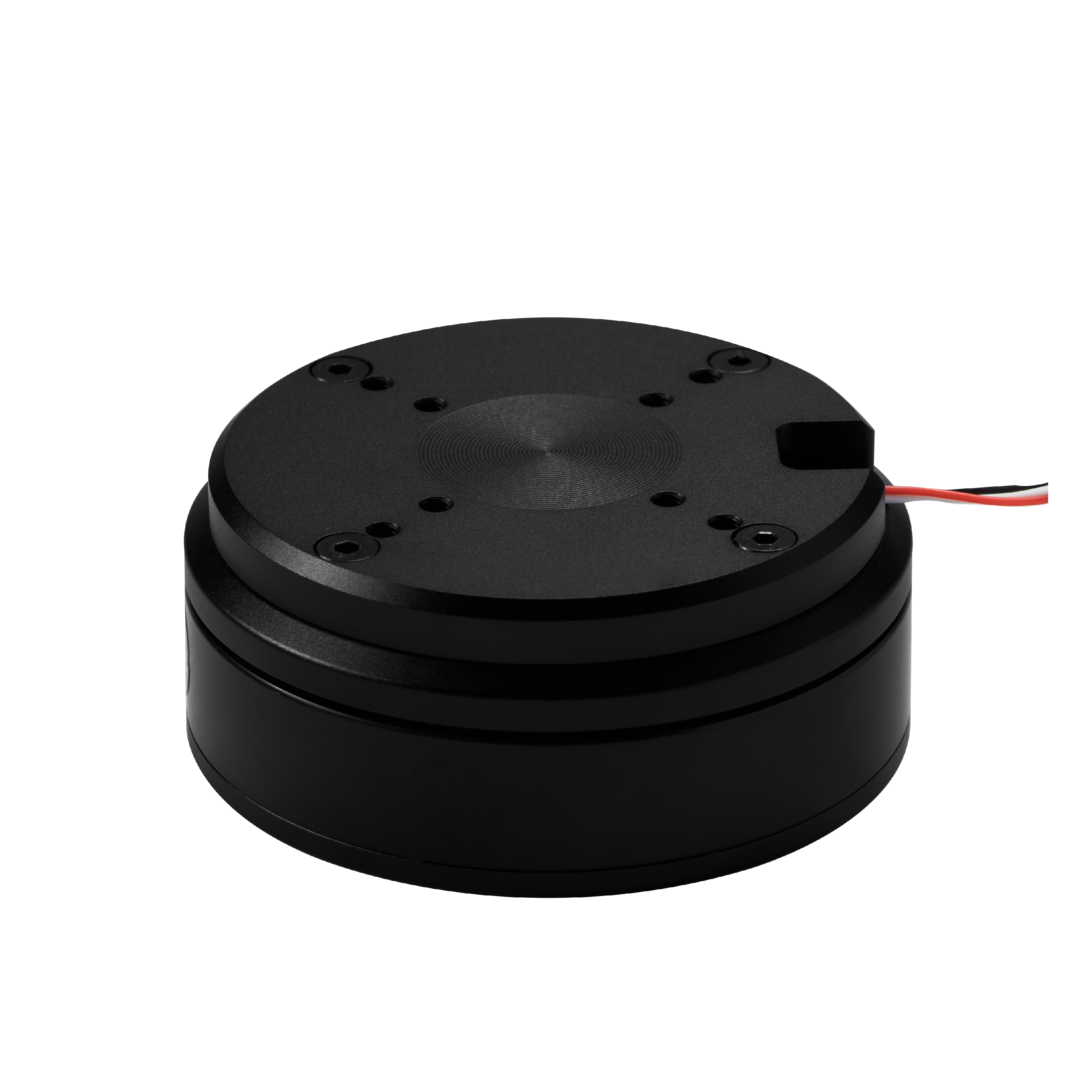

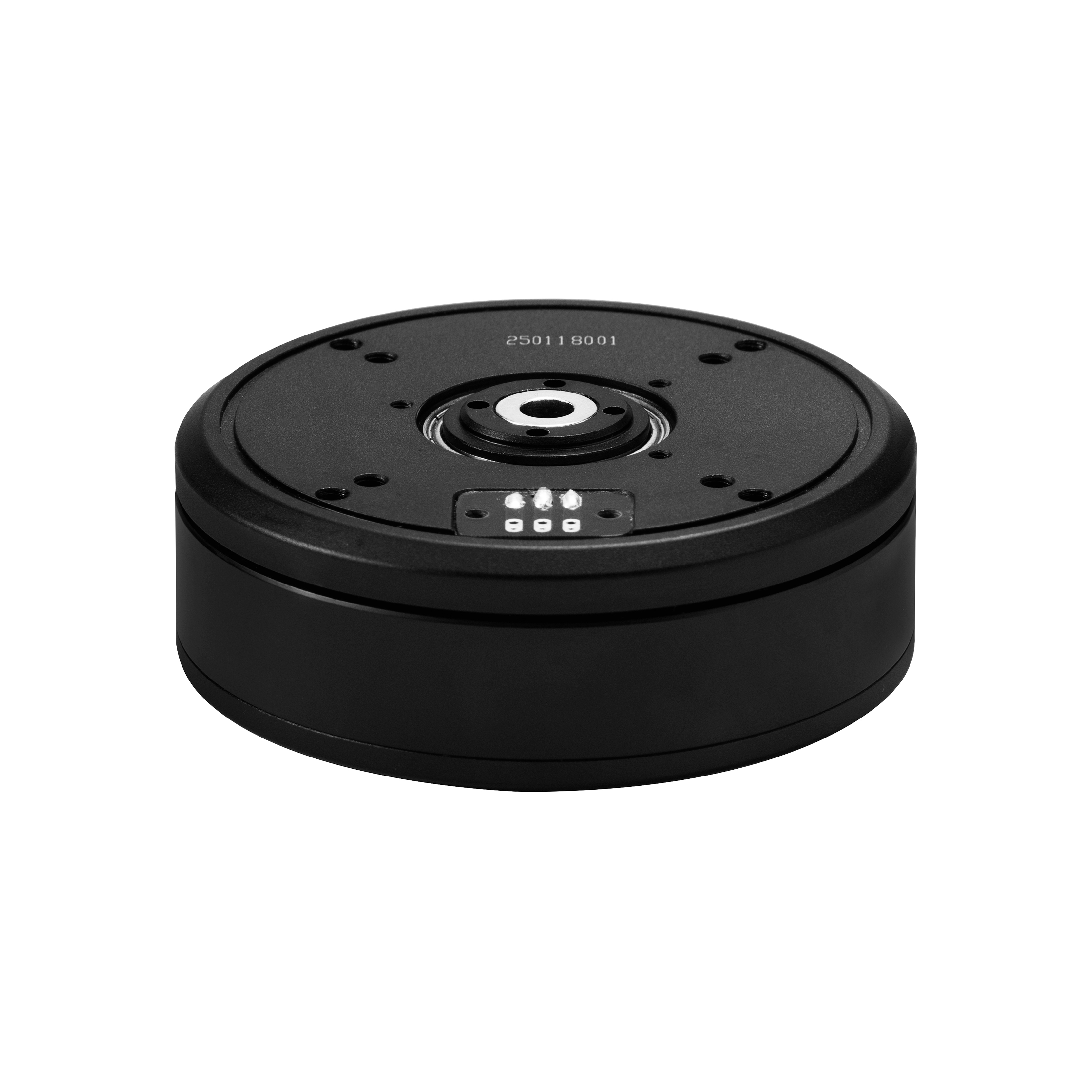

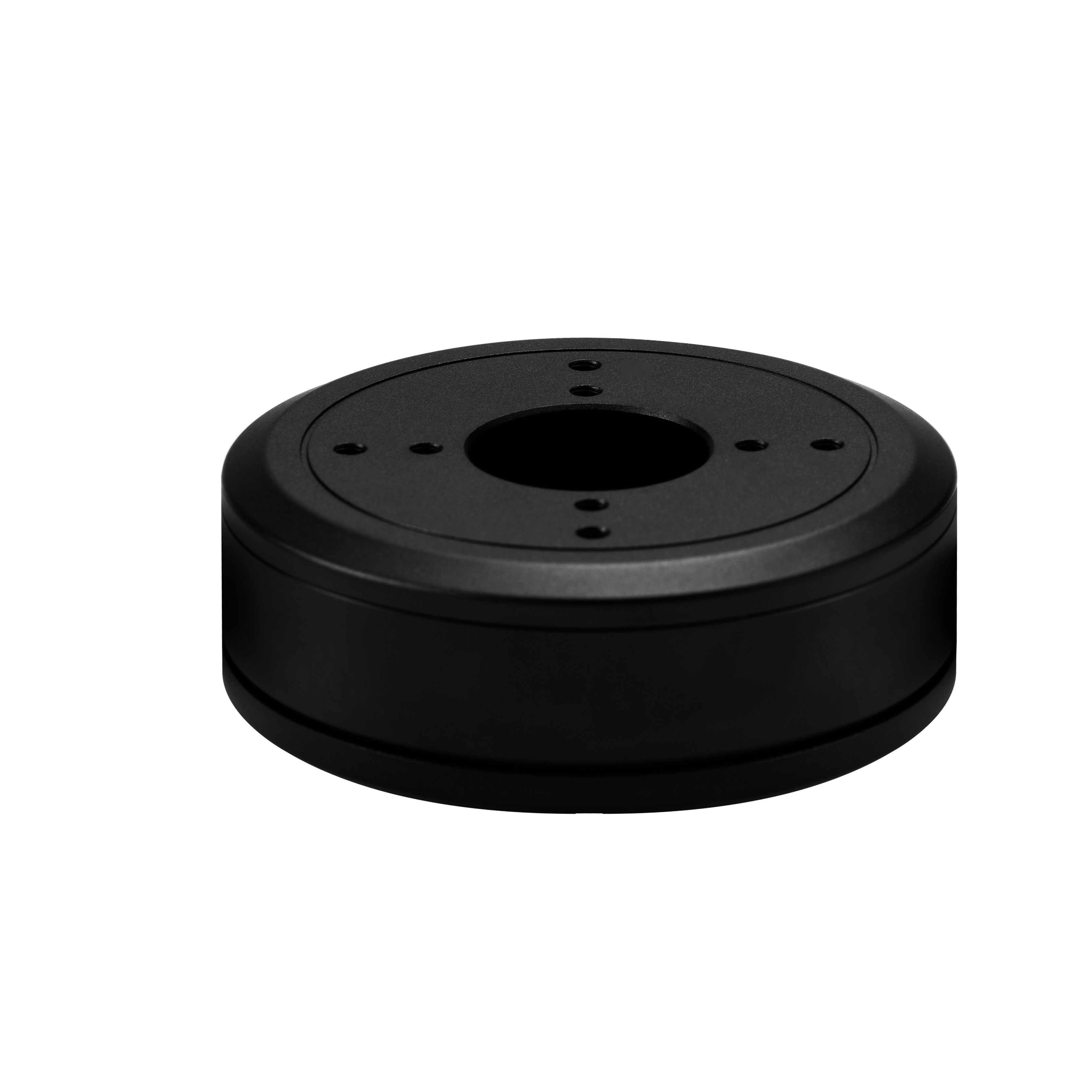

GB6010

型号 GB6010
品牌 SteadyWin
产品详情

GB6010.pdf

GB6010.STEP

GB6010带后盖.STEP


参数/型号单位GB6010
额定电压(Nominal voltage)V36
额定电流(Nominal current)A1.3
额定扭矩(Nominal torque)N.M0.8
额定转速(Nominal speed)rpm294
最大转速(Max speed)rpm564
堵转扭矩(Stall torque)N.M1.59
堵转电流(Stall current)A2.7
绕线匝数(Winding turns of motor)T80
相电阻(Phase resistance)Ω10.58
相电感(Phase inductance)Mh7.36
转速常数(Speed constant)rpm/v15.5
扭矩常数(Torque constant)N.M/A0.61
转子惯量(Rotor inertia)gcm^2748
极对数(Number of pole pairs)Pairs14
电机重量不带编码器(Motor weight without encoder)g242
电机重量带编码器(Motor weight with encoder)g270
工作温度范围(Working temperature)20~80
最高退磁温度(Max demagnetize temperature)120
编码器类型(Encoder type)/AS5048A/AS5600
