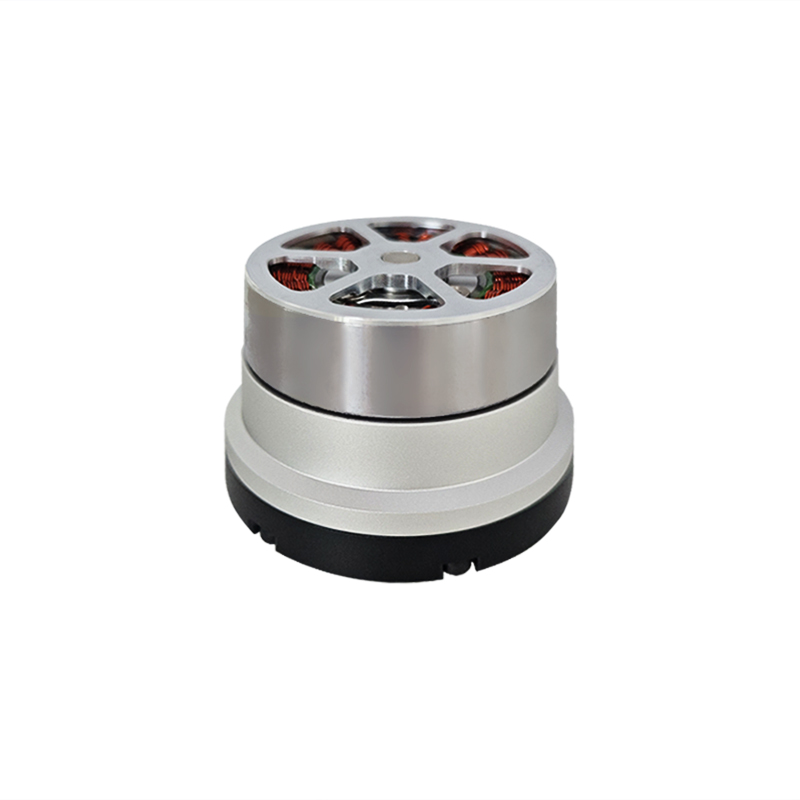

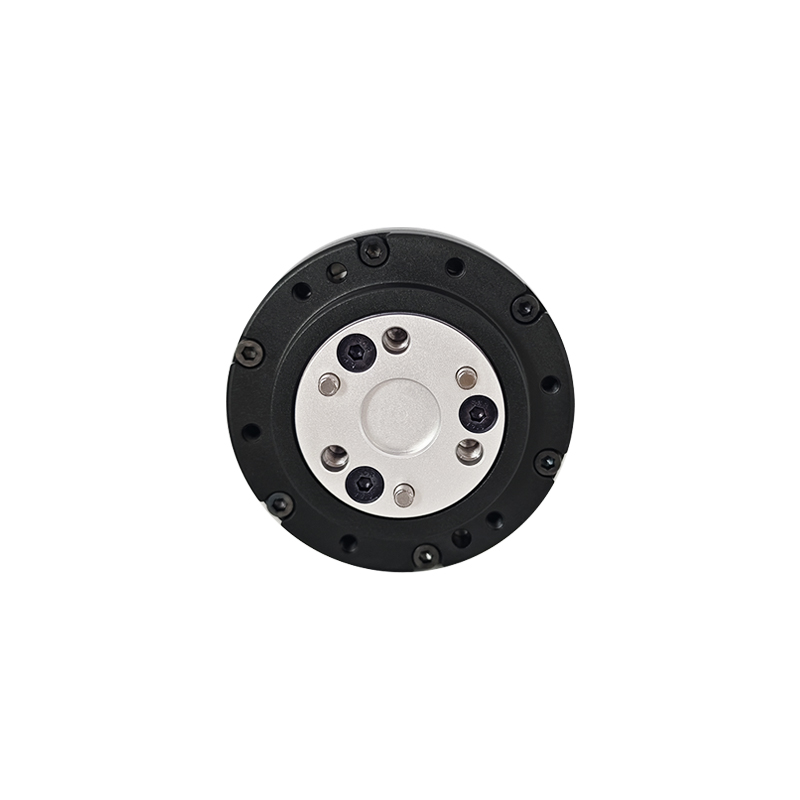

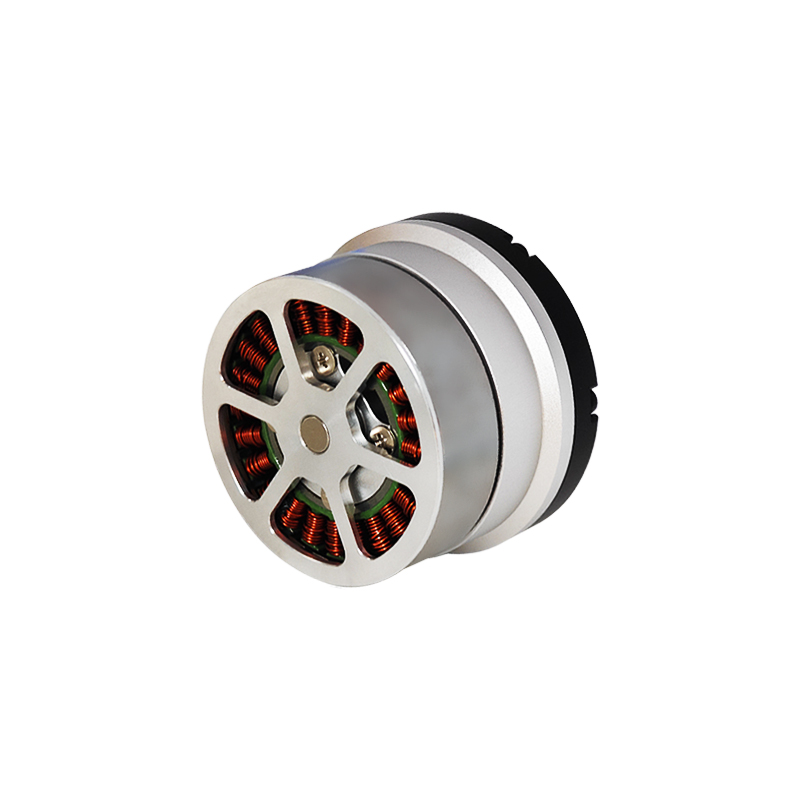

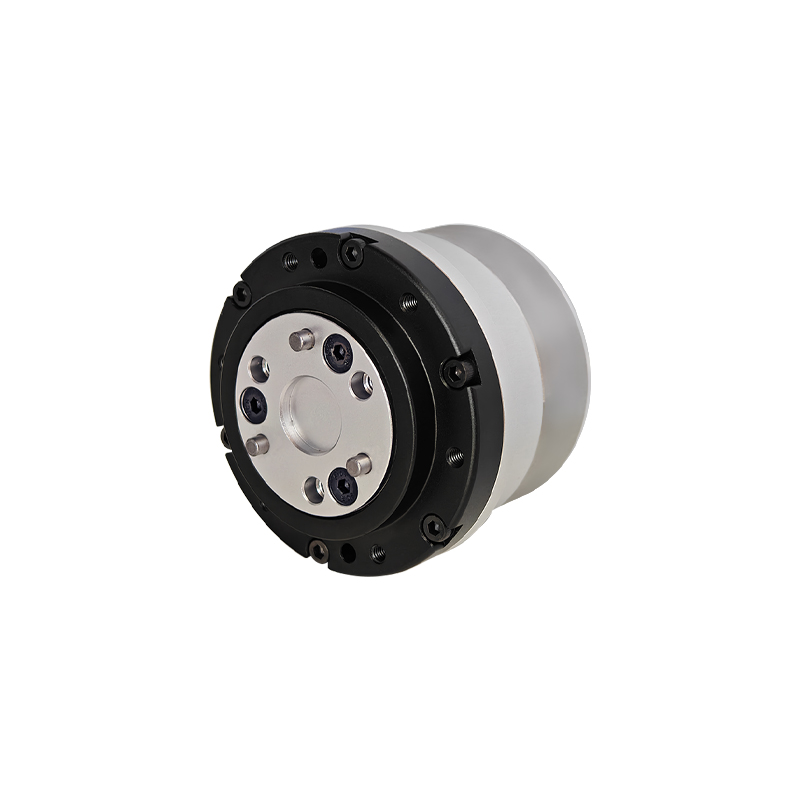

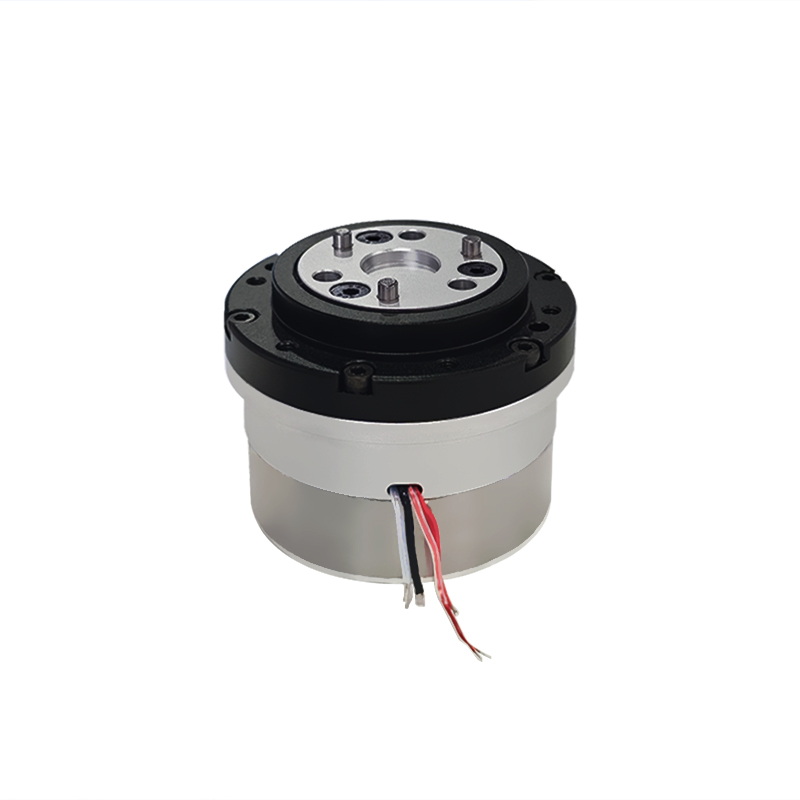

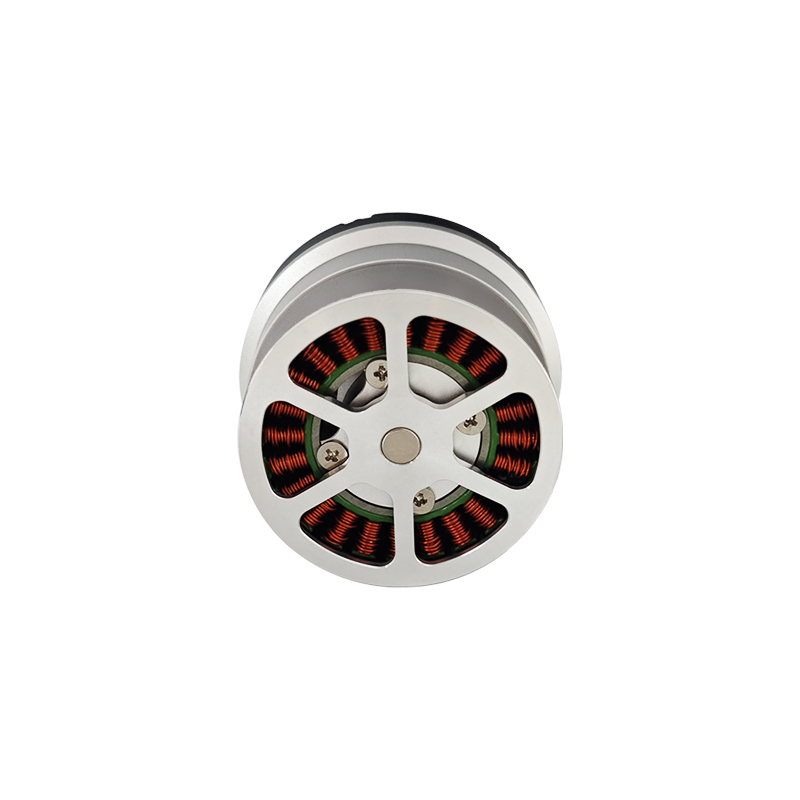

WGG4310-36

型号： WGG4310-36
品牌： SteadyWin
产品详情
WGG4310-36
绕组方式(Winding Type)/Y
测试电压(Testing Voltage)V24
额定功率(Rated Power)
W
84
额定扭矩(Nominal Torque)N.M6.6
堵转扭矩(Stall Torque)N.M33.52
减速后额定转速(Nominal Speed after Reducer)RPM93
减速后最大转速(Max Speed after Reducer)RPM107
额定电流(Nominal Current)A3.5
堵转电流(Stall Current)A24.78
相间电阻(Phase to Phase Resistance)Ω0.6
相间电感(Phase to Phase Inductance)mH0.32
转速常数(Speed Constant)rpm/v4.46
扭矩常数(Torque Constant)N.M/A1.6
极对数(Number of Pole Pairs)Pairs14
减速比(Gear Rate)/1:36
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/STEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g319.3
电机尺寸不带驱动(Size without Driver)mmØ55*41.9
轴向最大负载(Max Axial Load)N225
径向最大负载(Max Radial Load)N900
防水防尘等级(Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~65

*注：该参数在室温25℃下基于80A电调测试
