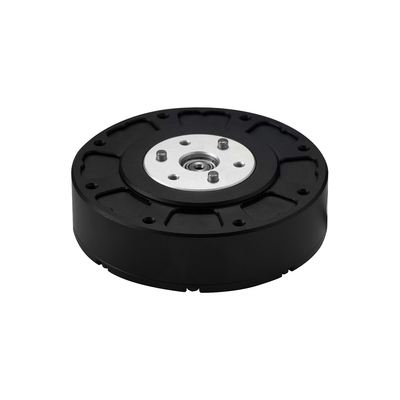

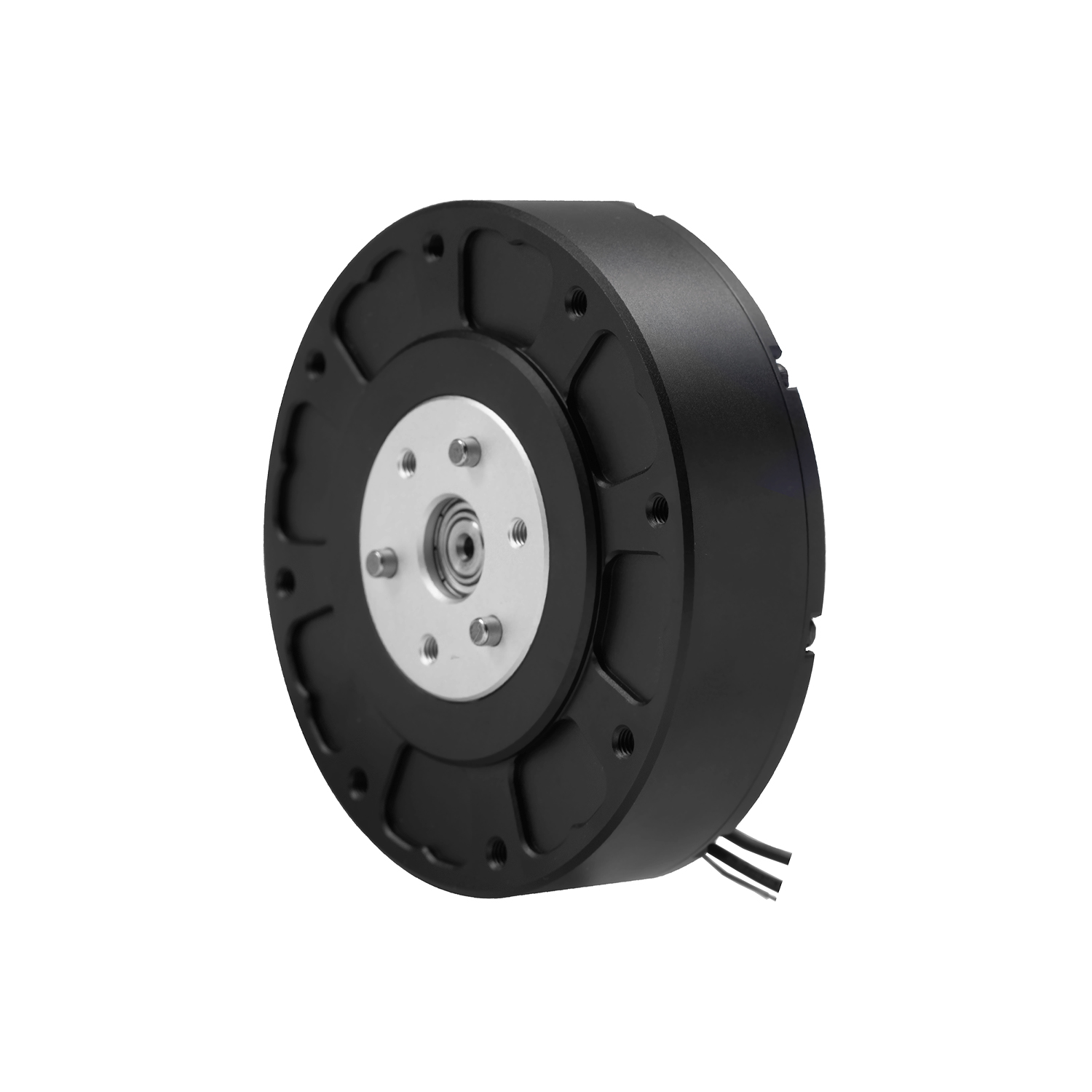

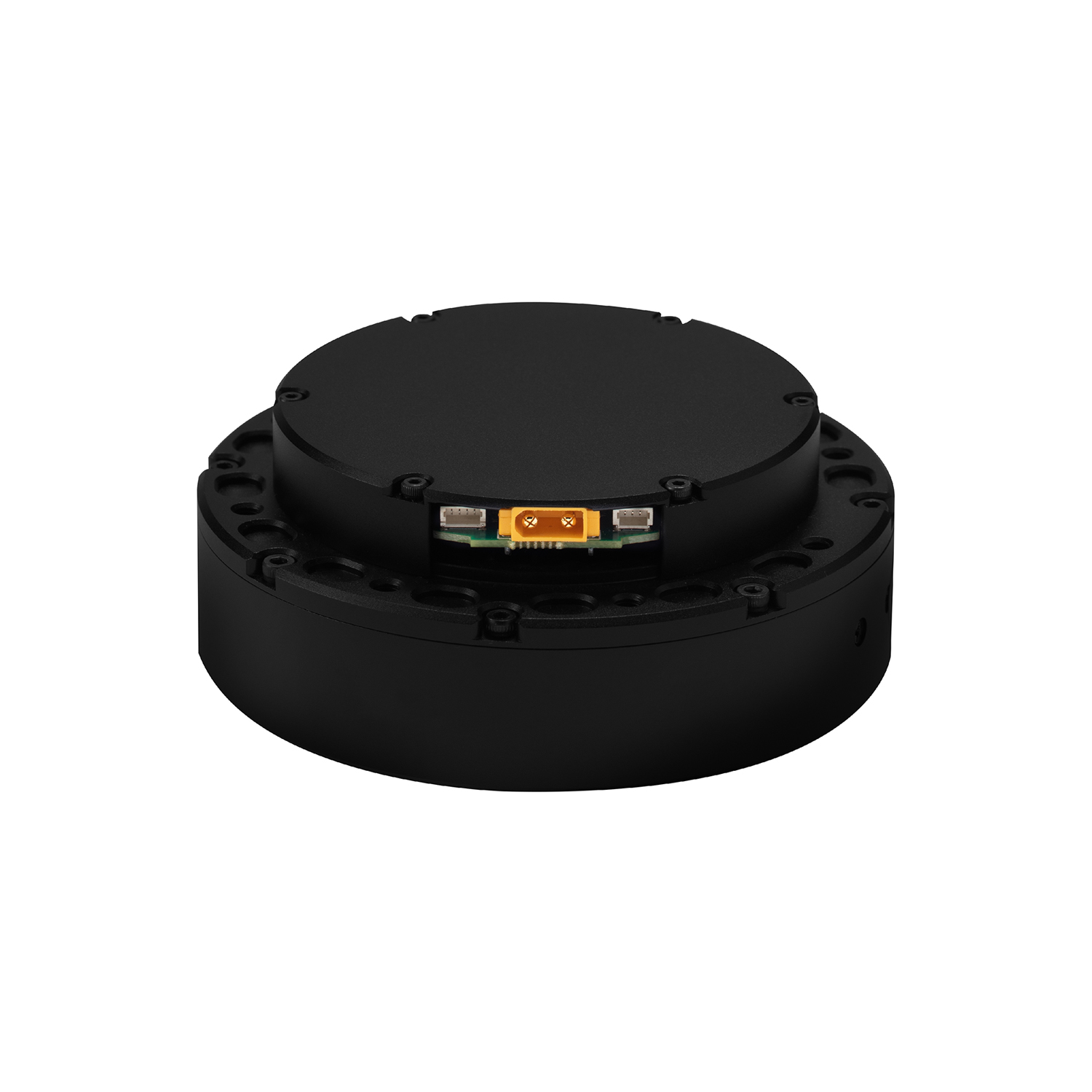

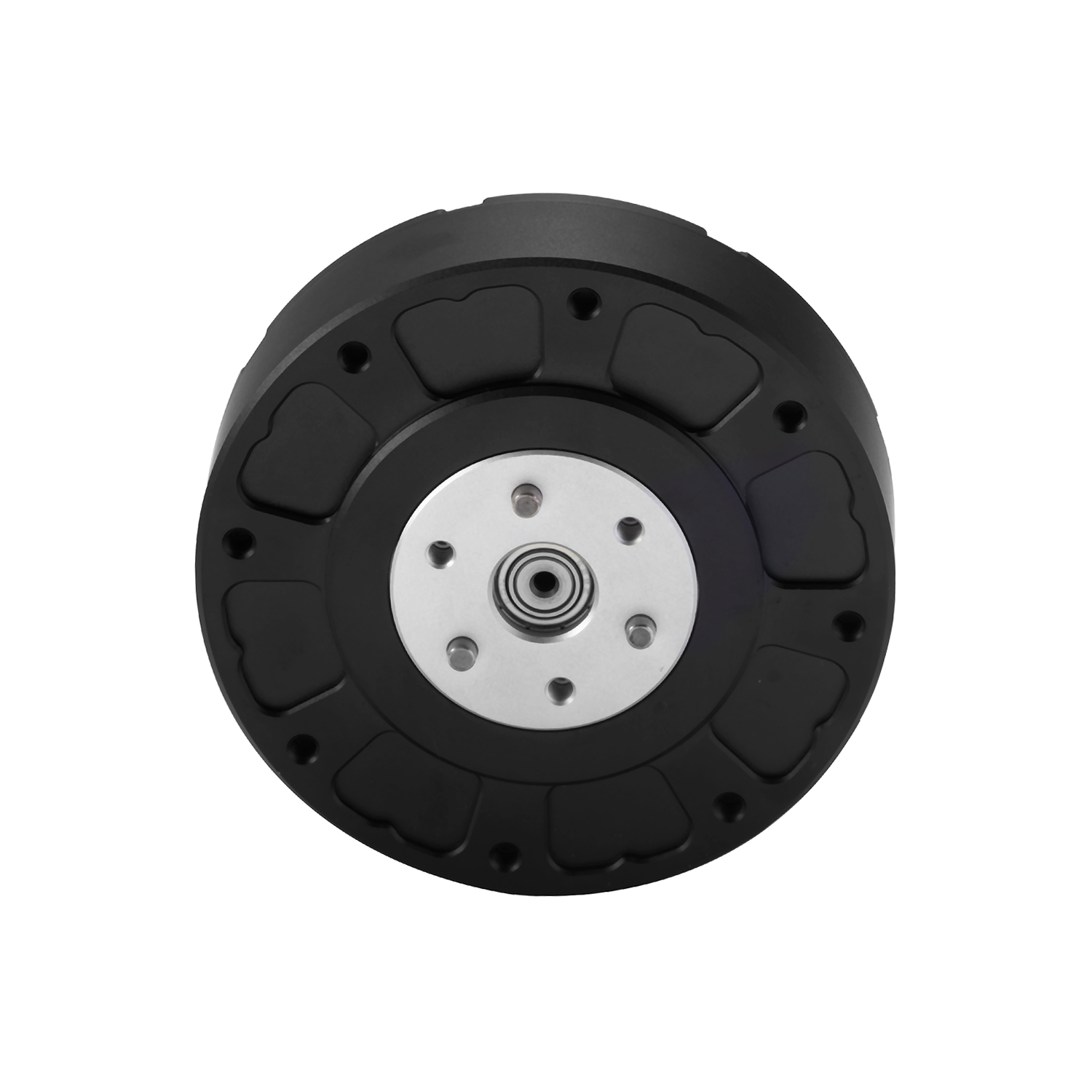

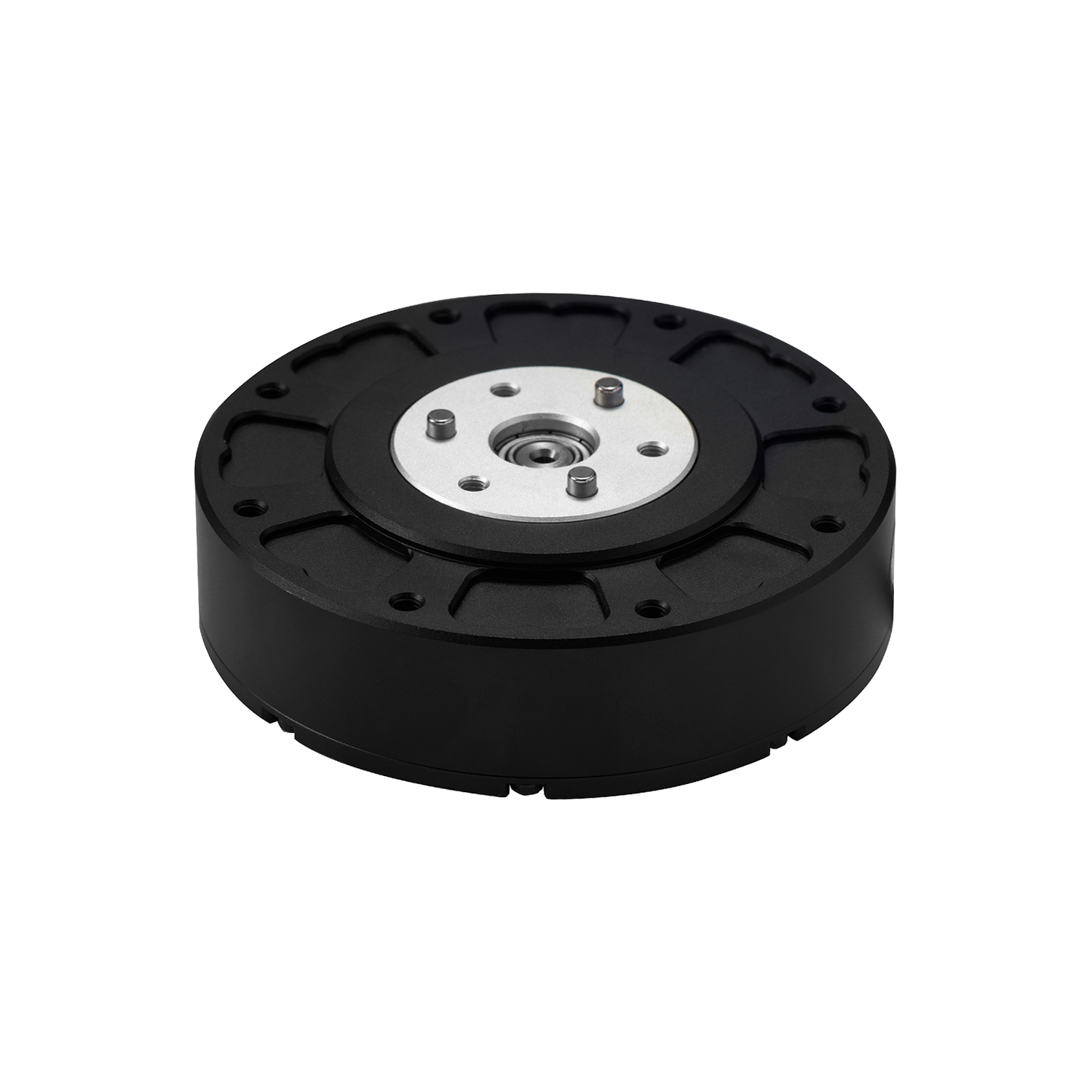

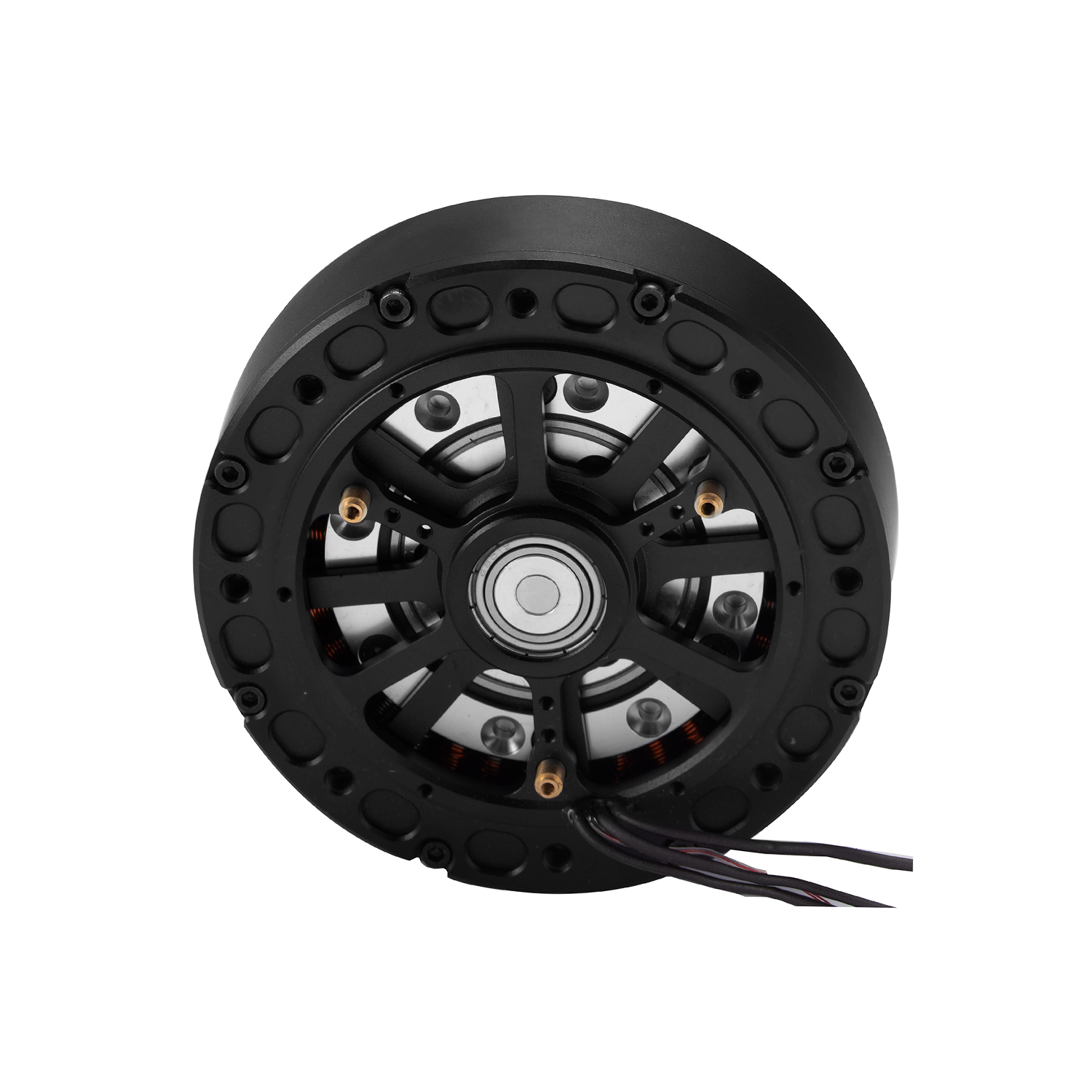

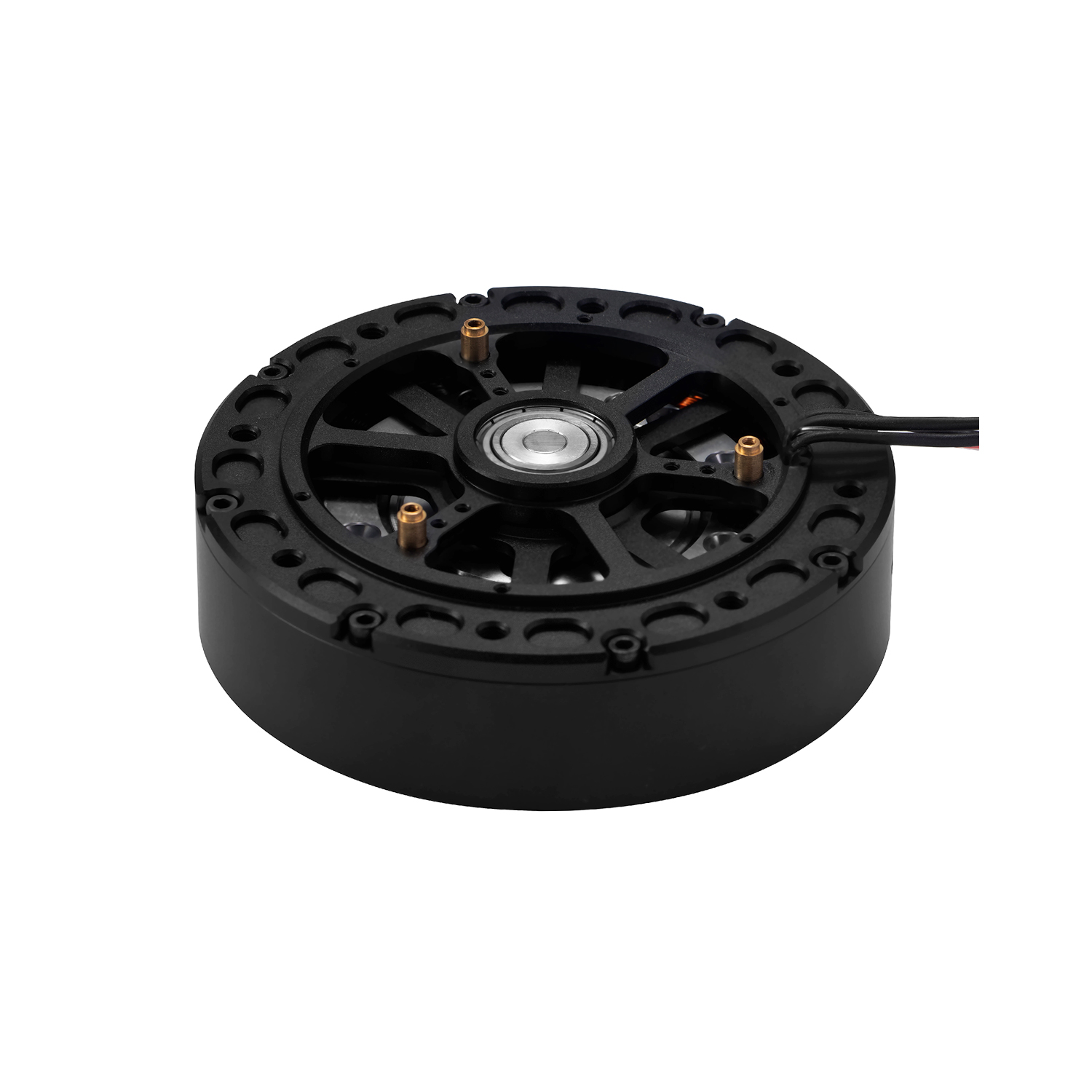

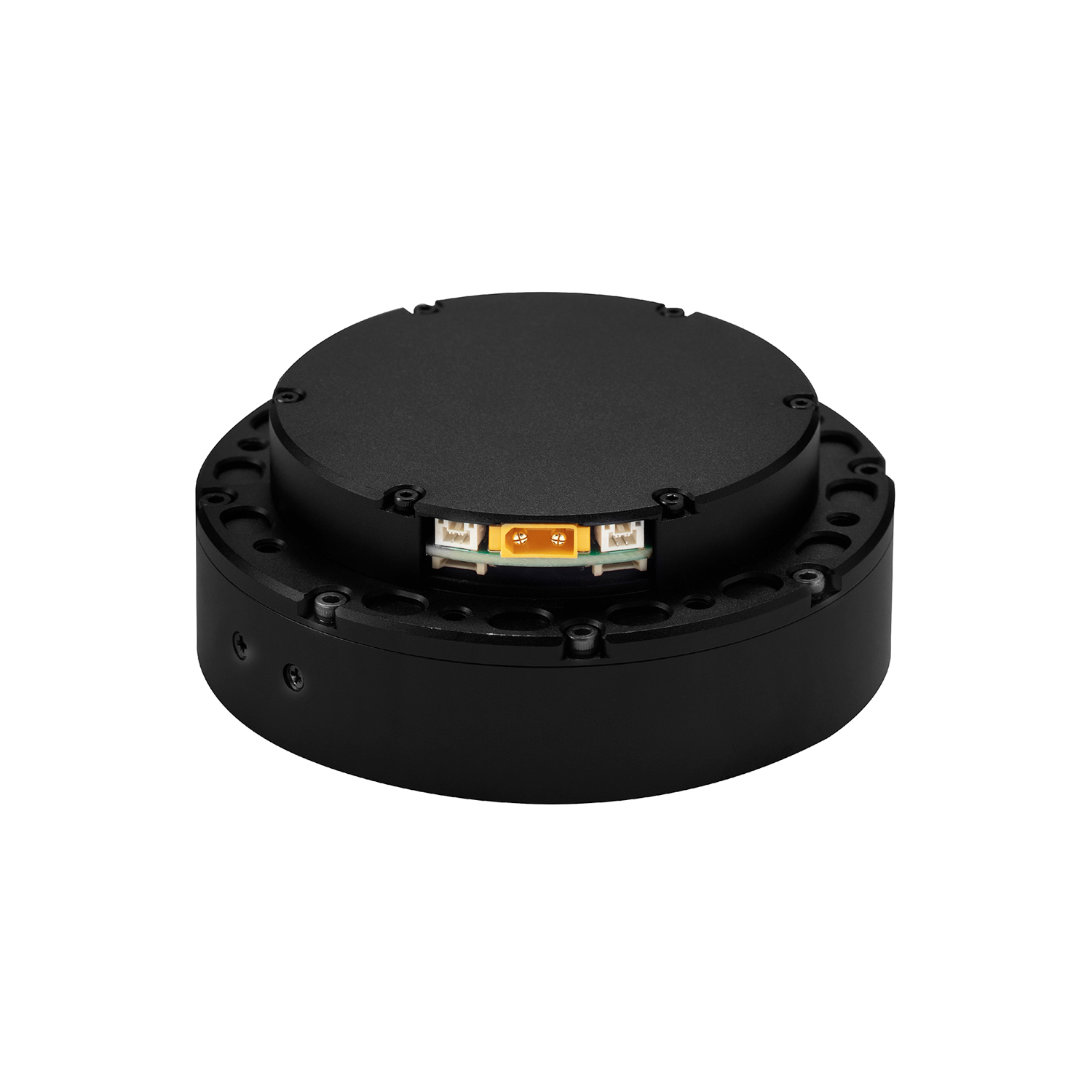

GIM8108-6

型号 GIM8108-6
品牌 SteadyWin
产品详情

GIM8108-6.pdf

GIM8108-6.STEP


GIM8108-6
Specs/Driver TypeUnitSDC303 driverSDC103 driver
额定电压(Nominal Voltage)V2436
电压范围(Voltage Range)V24~4824~48
功率(Power)W125170
额定扭矩(Nominal Torque)N.M66.5
堵转扭矩(Stall Torque)N.M1517
减速后额定转速(Nominal Speed after Reduce)RPM200250
减速后最大转速(Max Speed after Reduce)RPM350650
额定电流(Nominal Current)A514.5
堵转电流(Stall Current)A2045
相电阻(Phase Resistance)Ω0.1320.132
相电感(Phase Inductance)mH0.0620.062
转速常数(Speed Constant)rpm/v10013.8
扭矩常数(Torque Constant)N.M/A0.0910.45
转子惯量(Rotor Inertia)gcm^280042.6
极对数(Number of Pole Pairs)Pairs21
减速比(Gear Rate)/6:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/STELL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g525
电机重量带驱动(Motor Weight with Driver)g567
电机尺寸不带驱动(Size without Driver)mmØ96*34
电机尺寸带驱动(Size with Driver)mmØ96*41.5
轴向最大负载(Max Axial Load)N225
径向最大负载(Max Radial Load)N900
噪音(Noise)dB<60
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)-20~+80

驱动协议(Communication)

/

MIT: CAN

SHS: CAN and RS485
