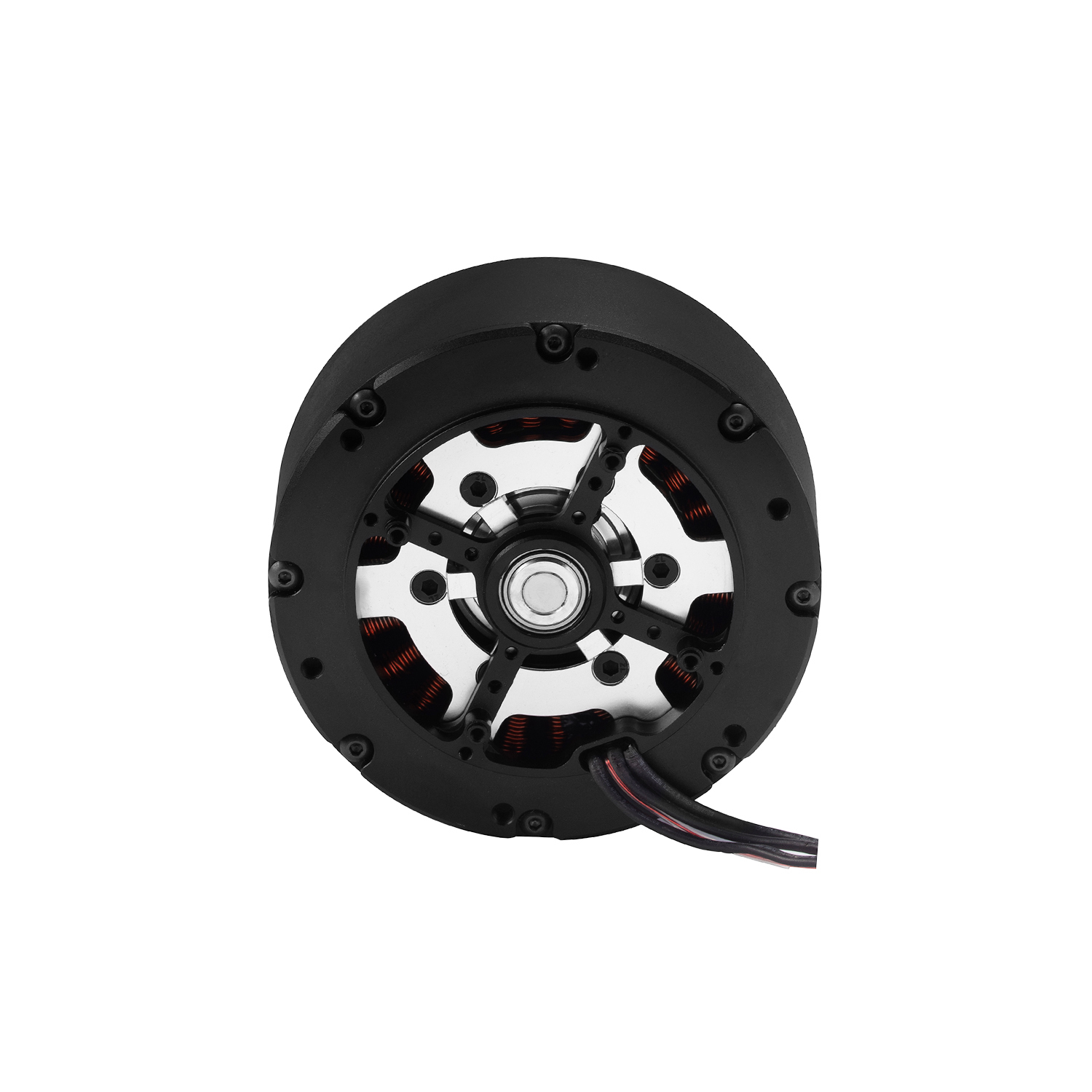

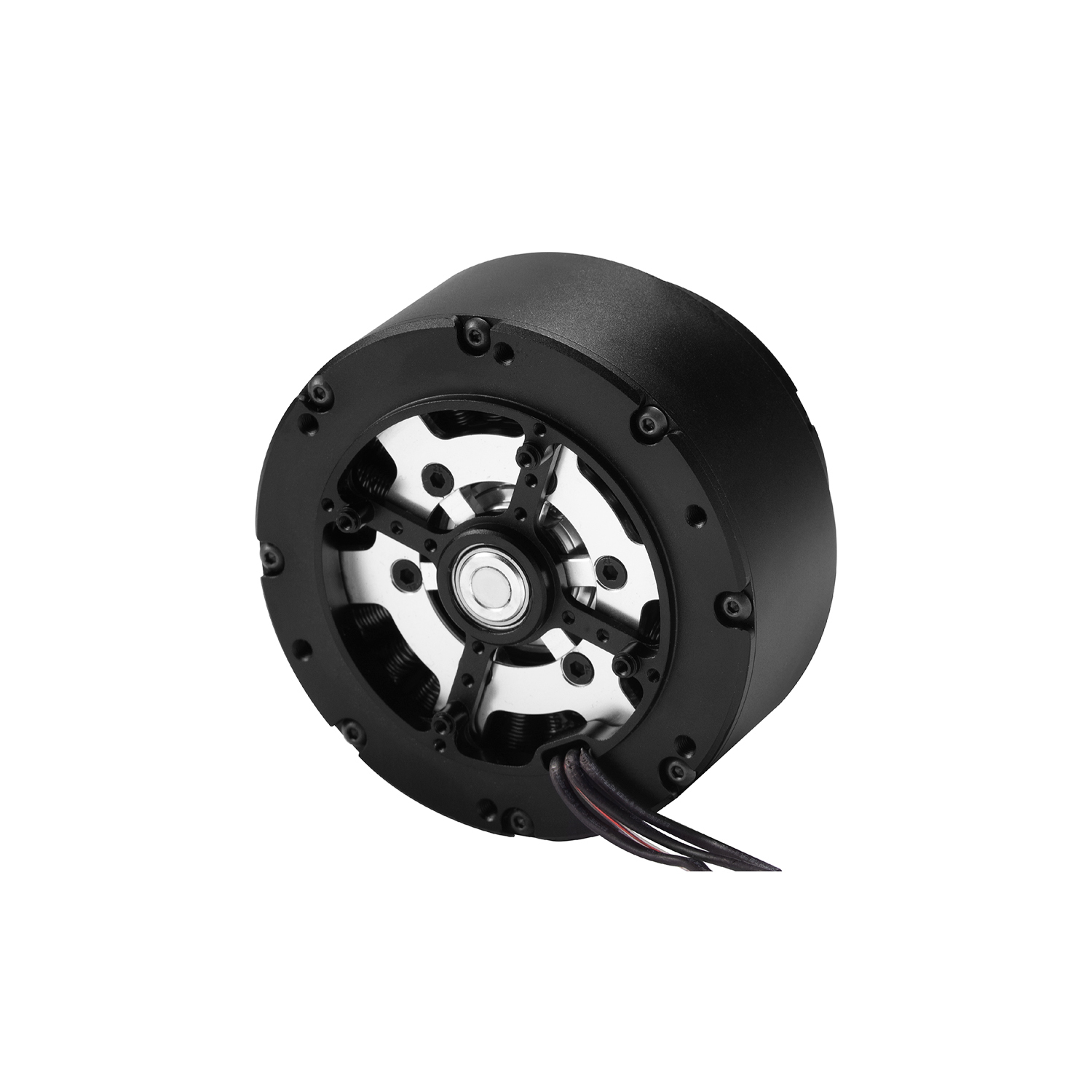

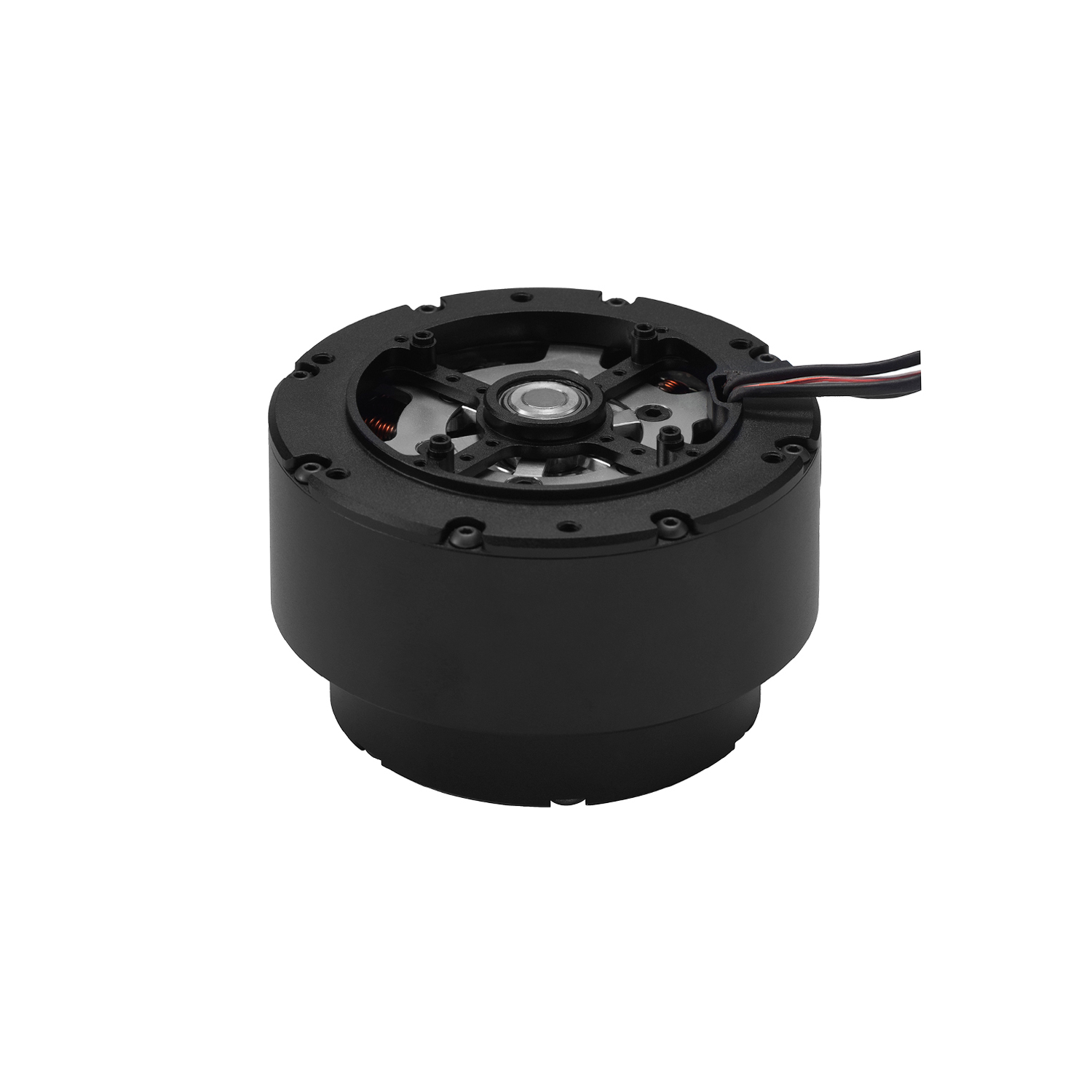

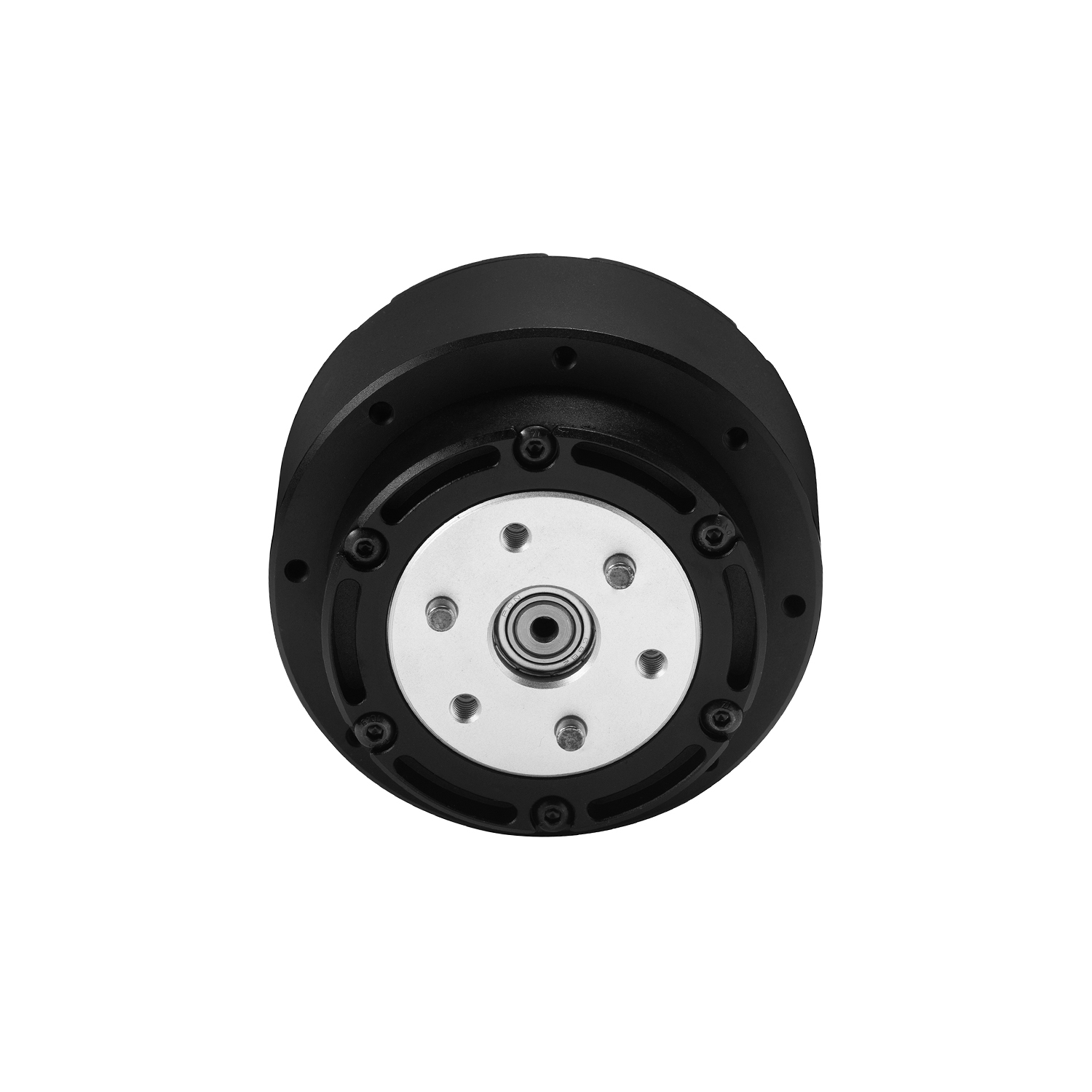

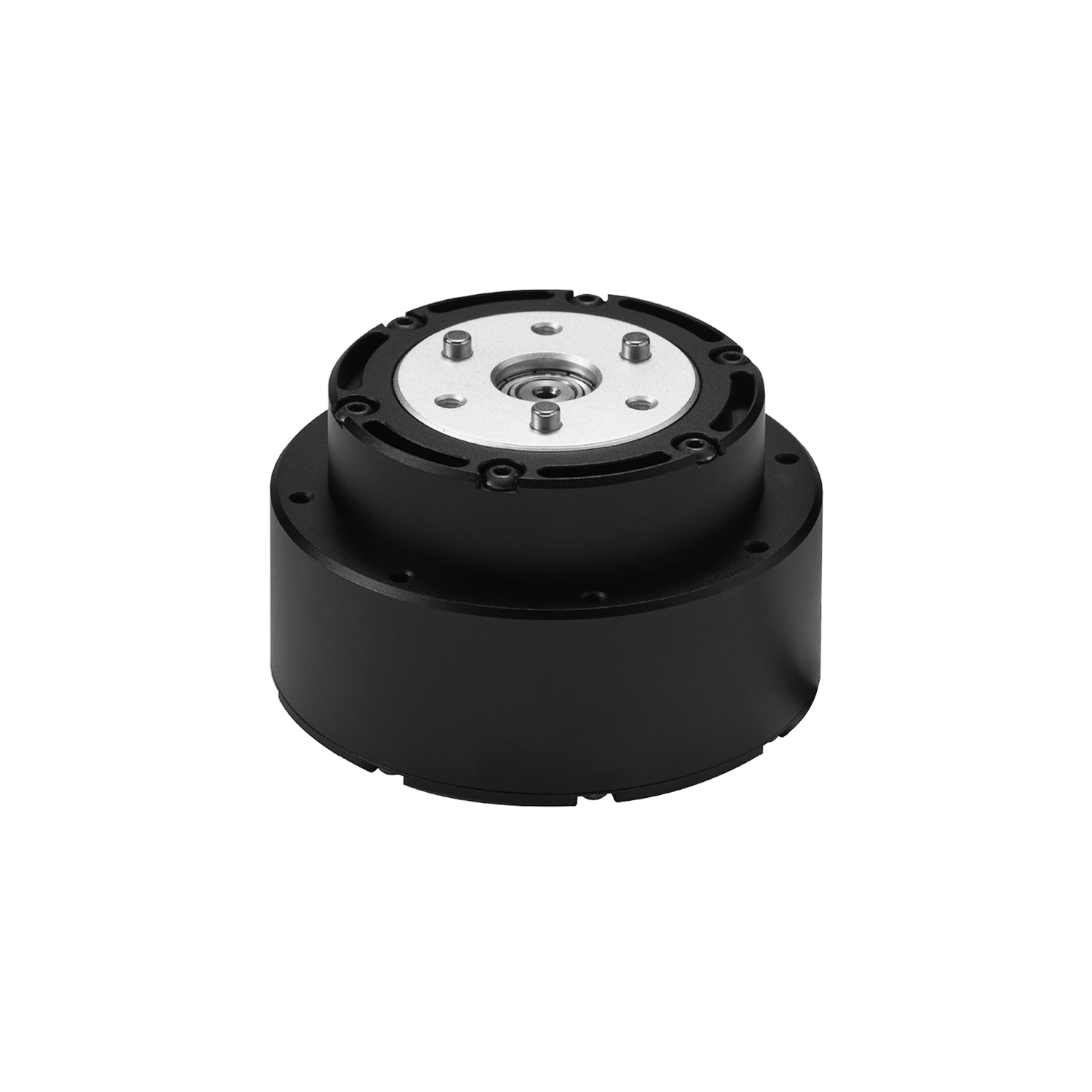

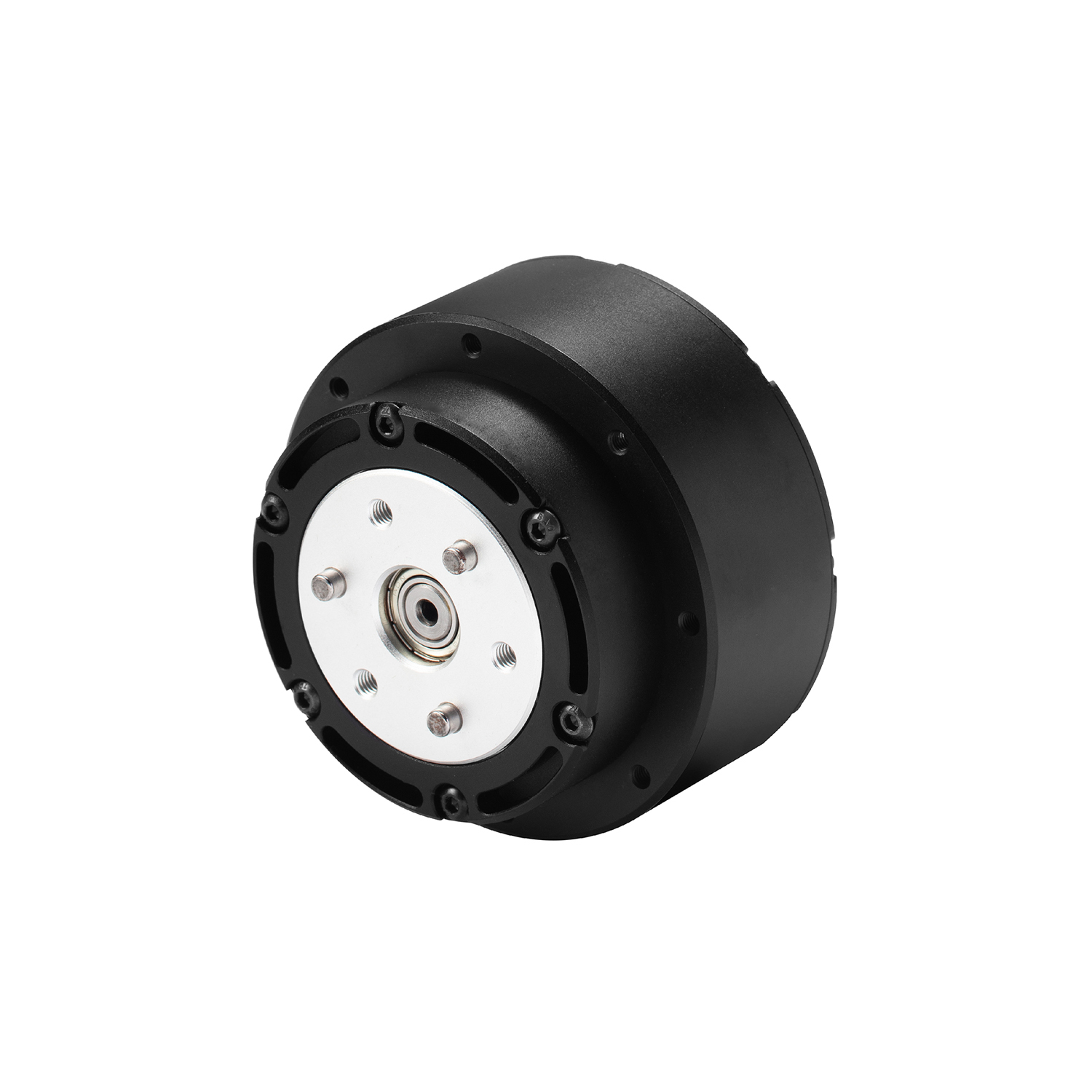

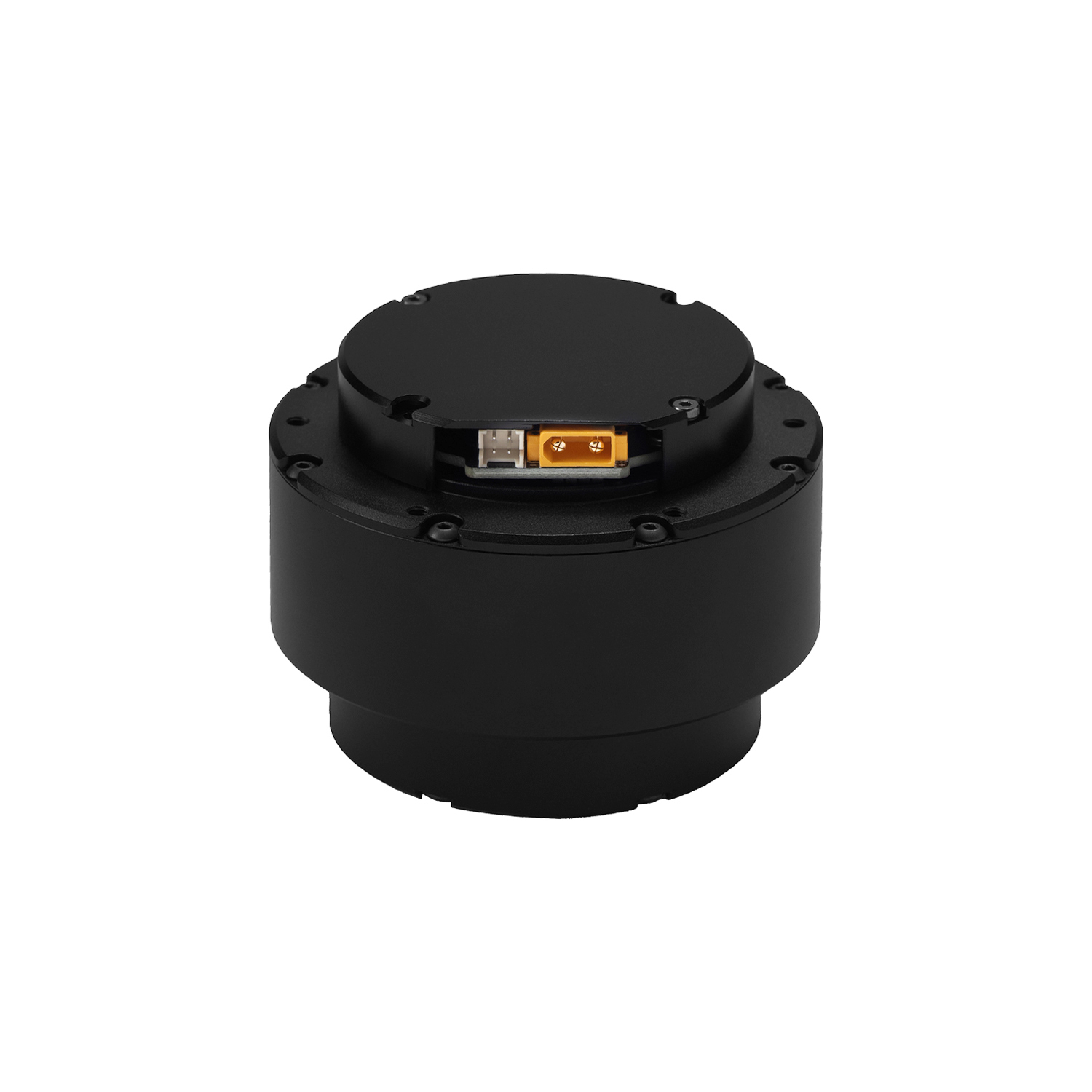

GIM6010-36

型号： GIM6010-36
品牌： SteadyWin
产品详情

2D图下载：

‍GIM6010-36安装尺寸图‍

GIM6010-36带刹车安装尺寸图


3D图下载：

‍GIM6010-36 3D模型图‍

GIM6010-36带刹车3D模型图

‍

GIM6010-36
绕组方式(Winding Type)/YY
驱动板型号(Driver Model)/GDS6GDZ468H
额定电压(Nominal Voltage)V4848
电压范围(Voltage Range)V12~4812~48
功率(Power)W221154
额定扭矩(Nominal Torque)N.M1817.4
堵转扭矩(Stall Torque)N.M4151.5
减速后额定转速(Nominal Speed after Reduce)RPM8565
减速后最大转速(Max Speed after Reduce)RPM97100
额定电流(Nominal Current)A4.63.2
堵转电流(Stall Current)A9.320.12
相间电阻(Phase to Phase Resistance)Ω0.60.6
相间电感(Phase to Phase Inductance)mH0.390.39
转速常数(Speed Constant)rpm/v2.022.08
扭矩常数(Torque Constant)N.M/A4.384.3
极对数(Number of Pole Pairs)Pairs1414
减速比(Gear Rate)/36:136:1
减速器类型(Gear Type)/PlanetaryPlanetary
减速器齿轮材料(Reducer Gear Material)/STEELSTEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin1515
电机重量不带驱动(Motor Weight without Driver)g546546
电机重量带驱动(Motor Weight with Driver)g574574
电机尺寸不带驱动(Size without Driver)mmØ76*45.5Ø76*45.5
电机尺寸带驱动(Size with Driver)mmØ76*56.5Ø76*56.5
轴向最大负载(Max Axial Load)N250250
径向最大负载(Max Radial Load)N10001000
噪音(Noise)dB＜65＜65
通信协议(Communication)/CANCAN & RS485
第二编码器(Second Encoder)/NOYES
电机防水防尘等级(Motor Protection Grade)/IP54IP54
工作温度范围(Working Temperature)℃-20~+80-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit

14

14

是否支持单独编码器(Separate Encoder)/NO
NO
是否支持定制抱闸(Custom Brake)/YESYES
