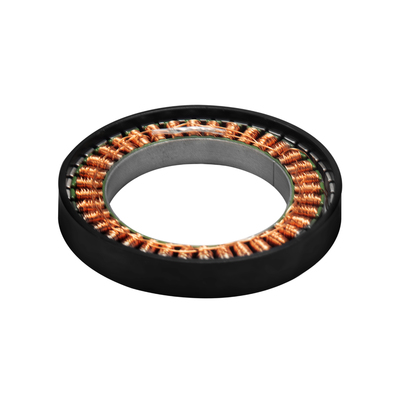

WK8110

Model： WK8110
Brand： SteadyWin
产品详情

WK8110 2D drawing

WK8110 3D model


参数/型号单位WK8110
额定电压(Nominal voltage)V24
额定电流(Nominal current)A2.49
额定扭矩(Nominal torque)N.M0.93
额定转速(Nominal speed)rpm349
最大转速(Max speed)rpm566
堵转扭矩(Stall torque)N.M2.4
堵转电流(Stall current)A6.51
绕线匝数(Winding turns of motor)T30
相间电阻(Interphase resistance)Ω2.29
相间电感(Interphase inductance)Mh2.32
转速常数(Speed constant)rpm/v24
扭矩常数(Torque constant)N.M/A0.39
转子惯量(Rotor inertia)gcm^21716
极对数(Number of pole pairs)Pairs21
工作温度范围(Working temperature)℃-20~80
最高退磁温度(Max demagnetize tempersture)℃120
定子内径(Inner diameter of the stator)mm58.5
电机尺寸(Motor size)mmØ90*14
电机重量(Motor weight)g206
