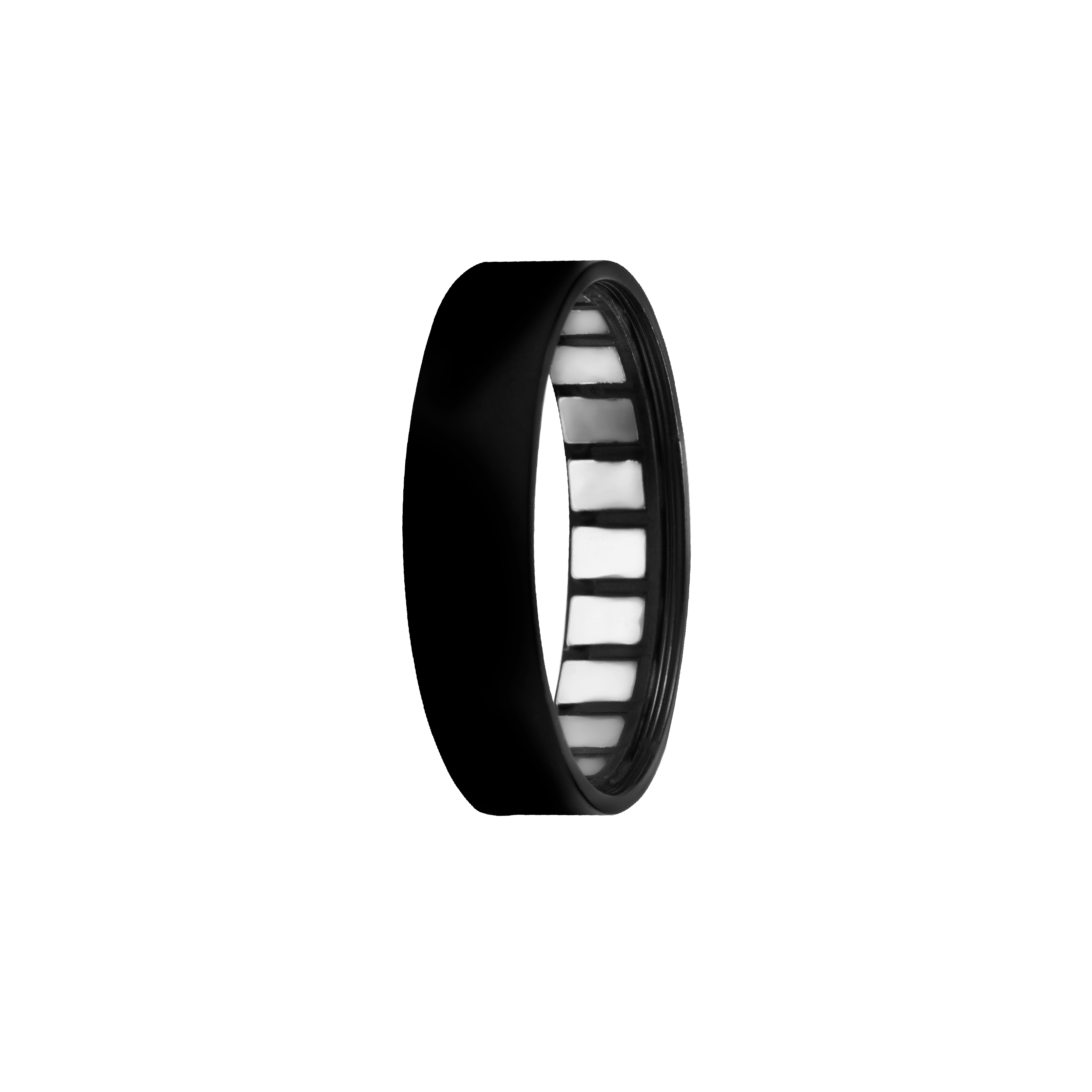

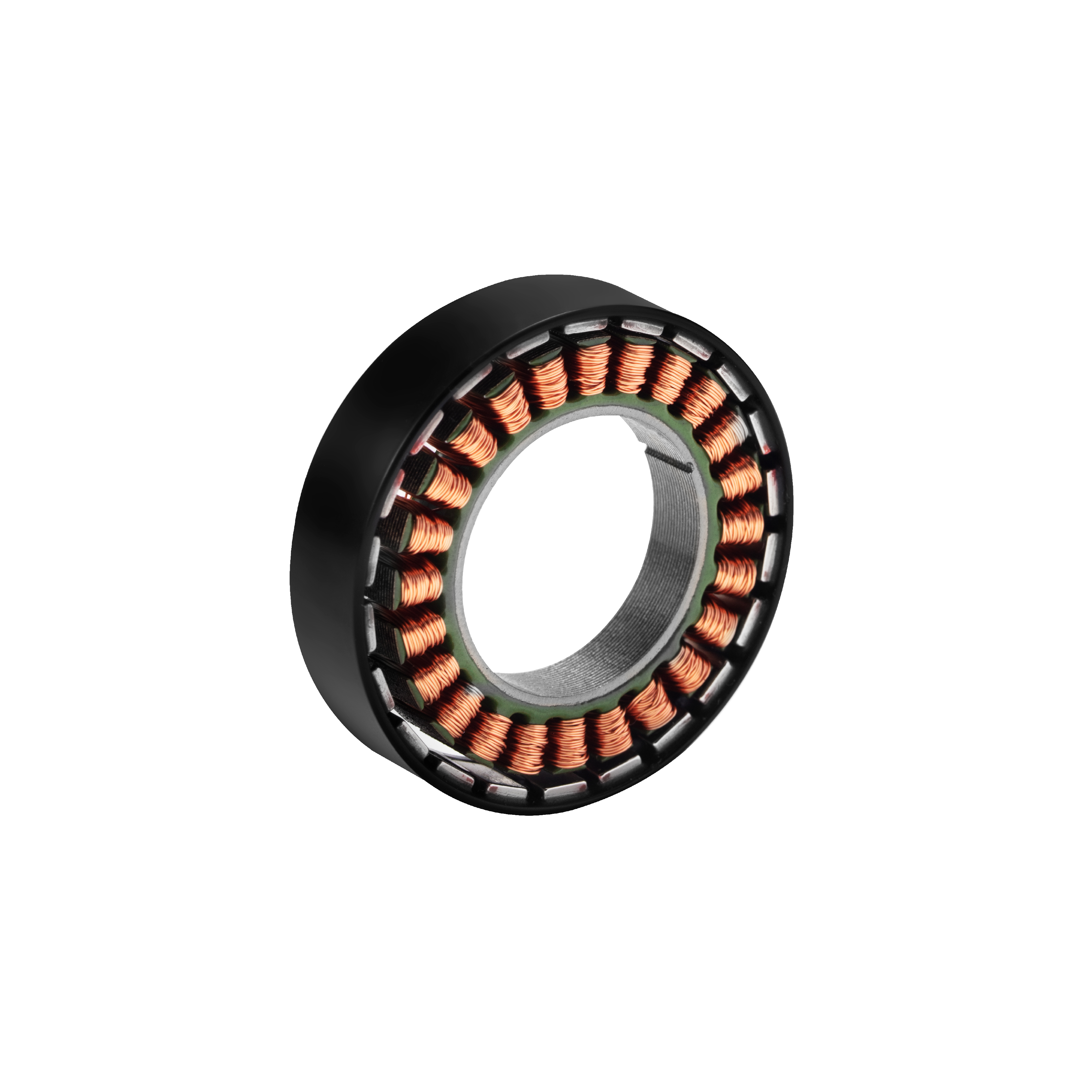

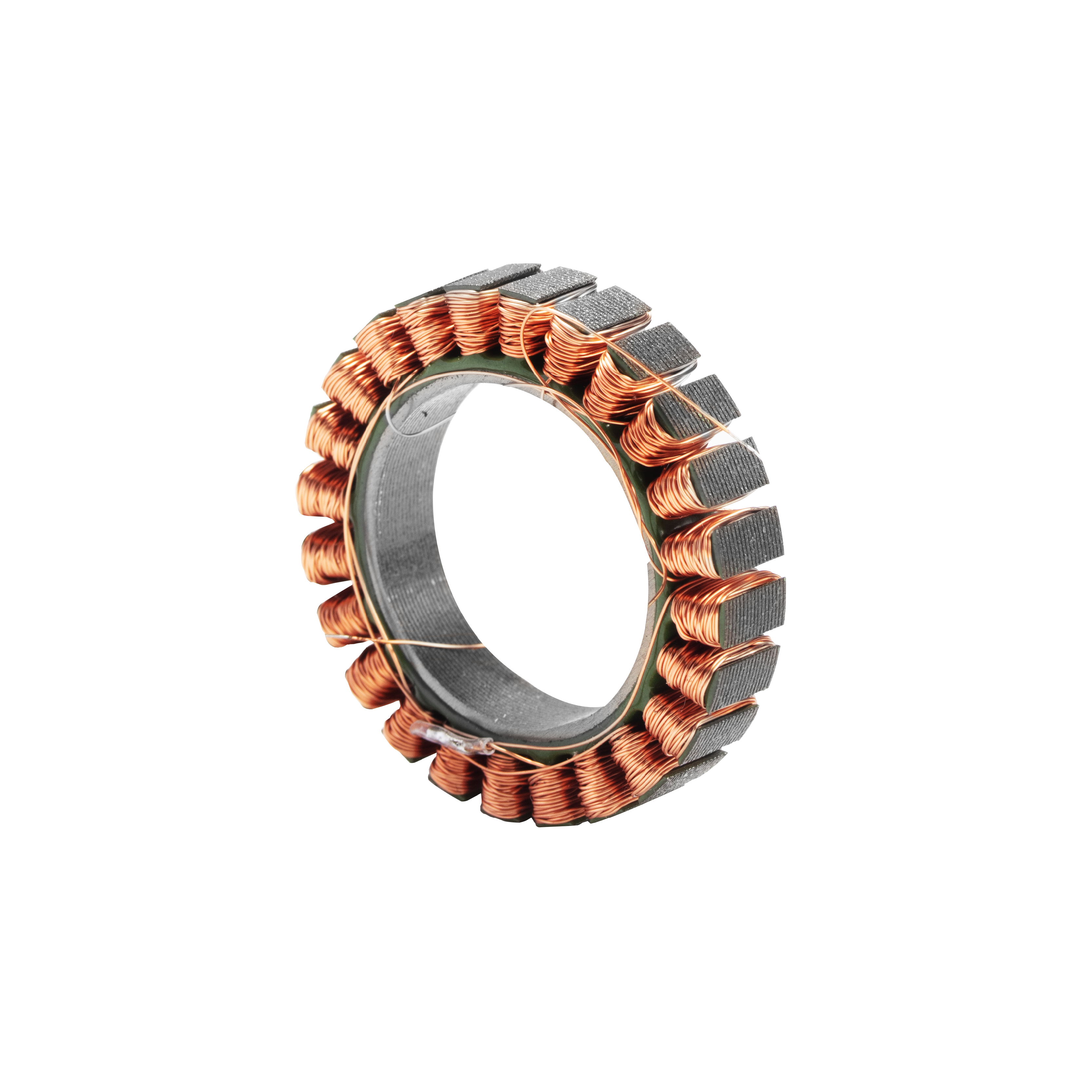

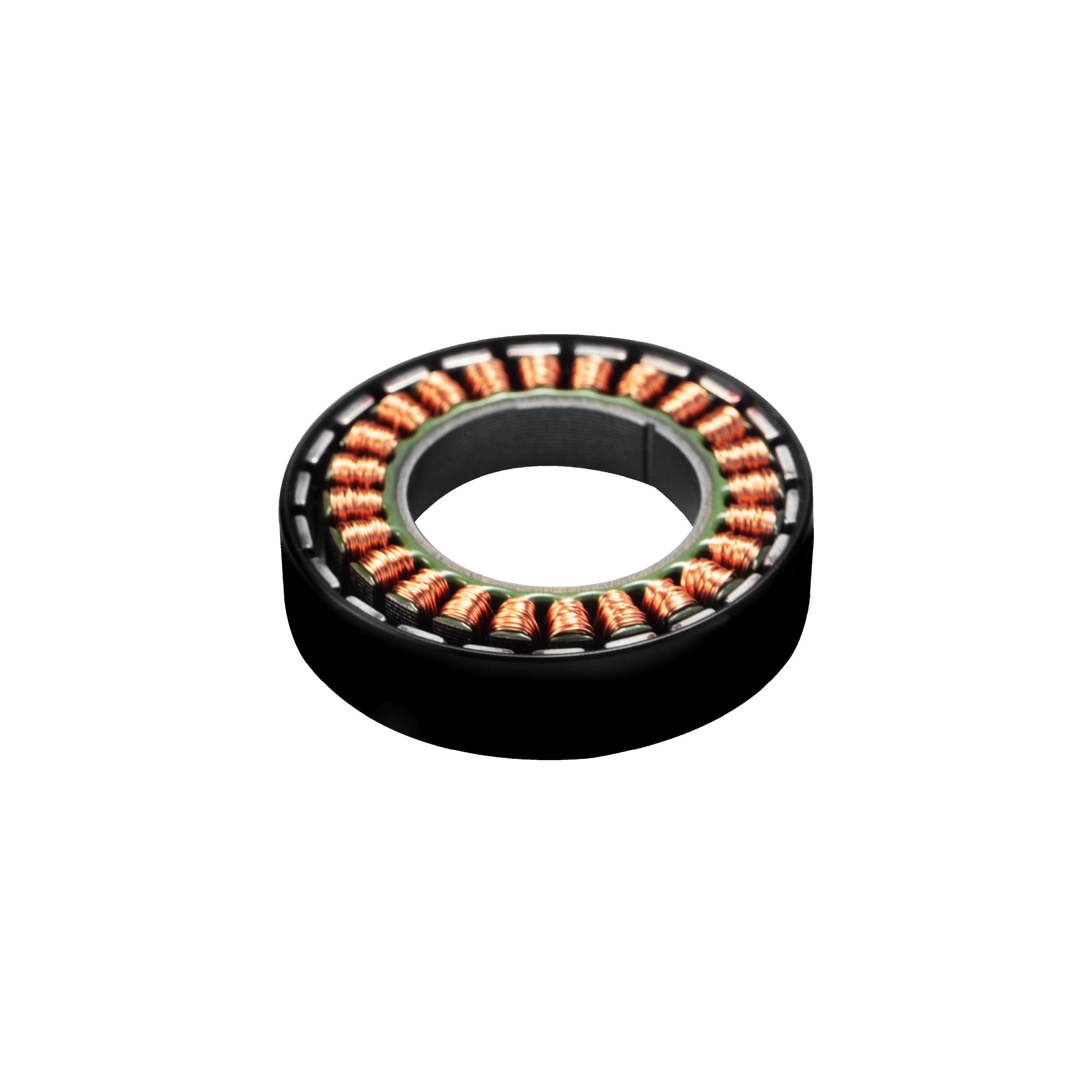

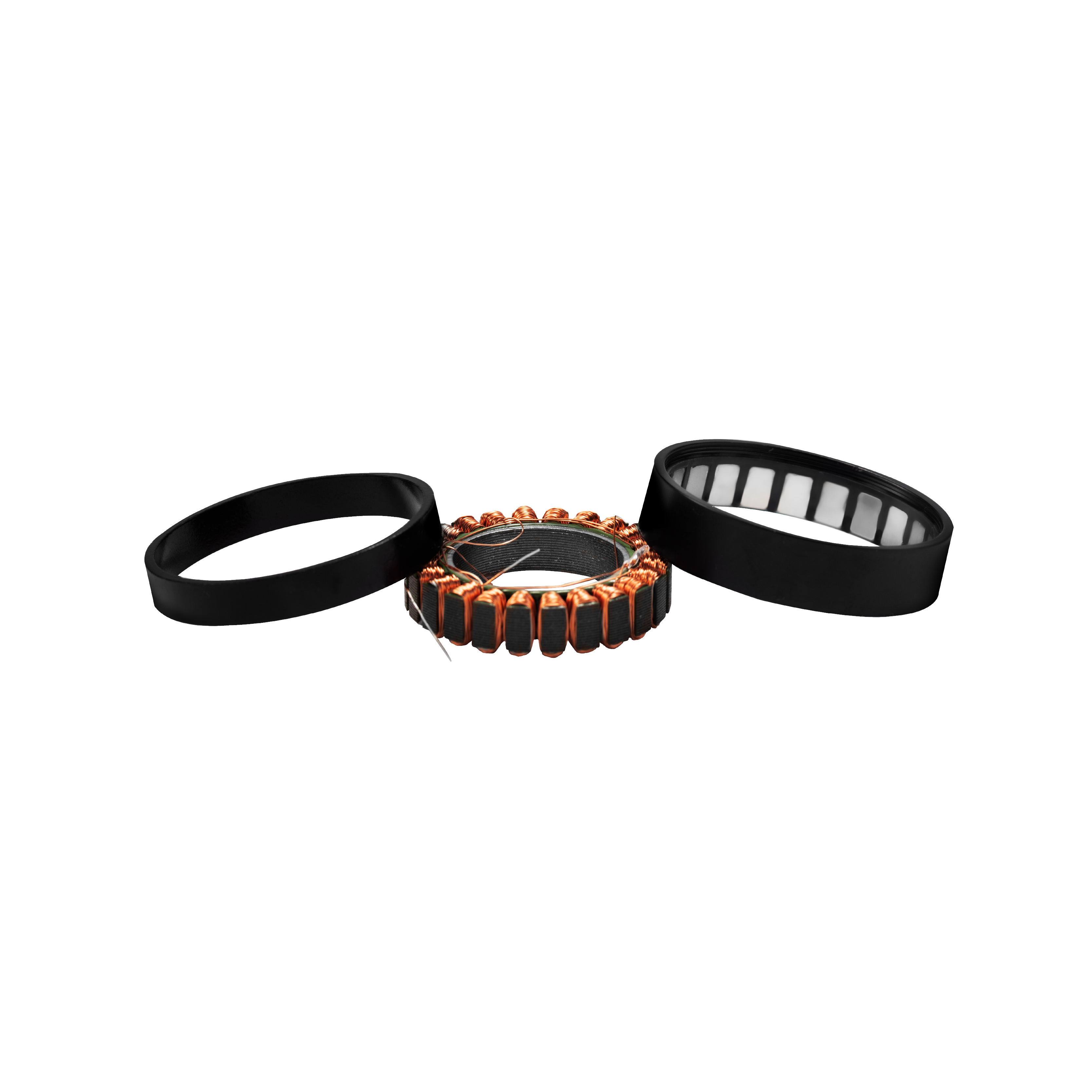

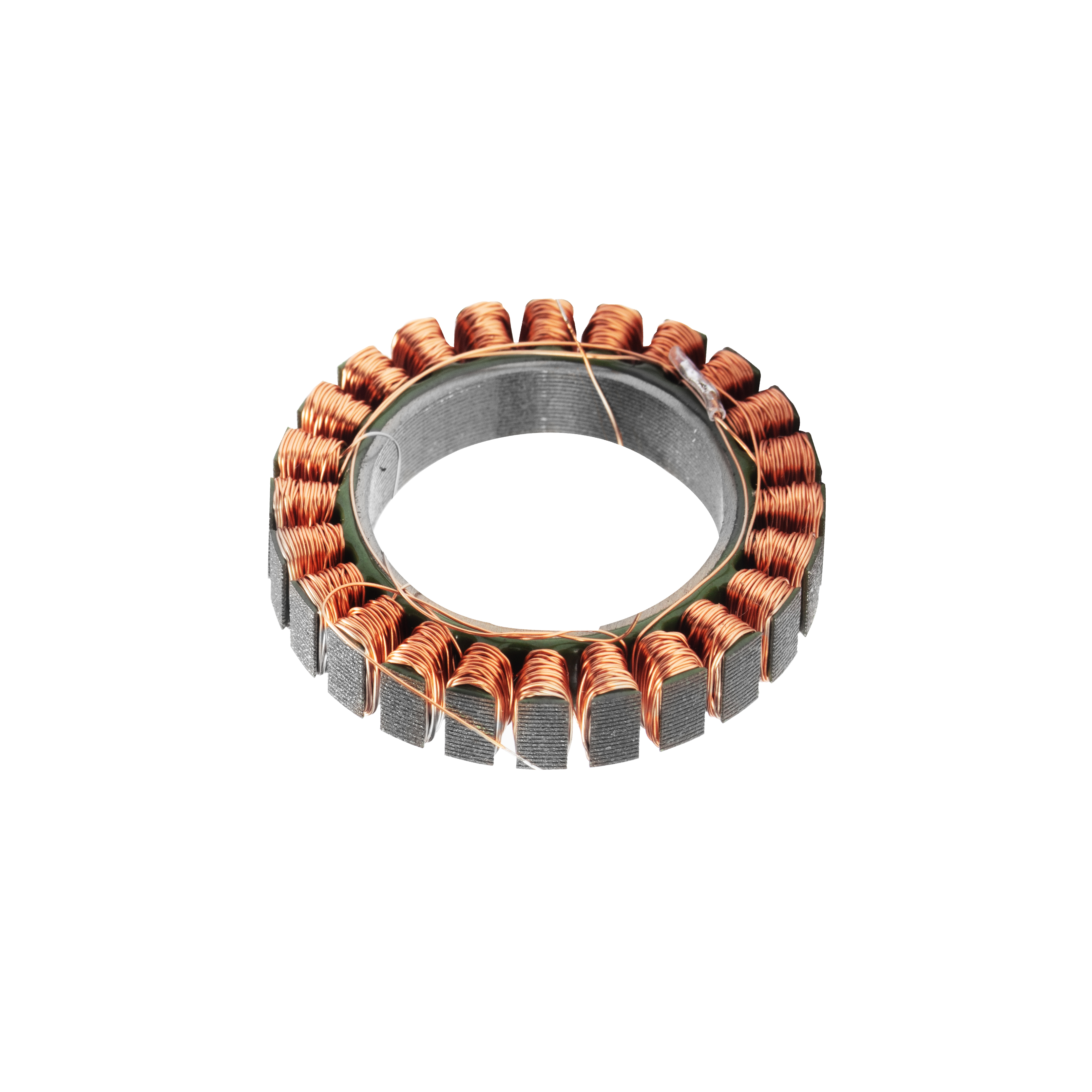

WK3505

Model WK3505
Brand SteadyWin
产品详情

    DRAWINGS DOWNLOAD

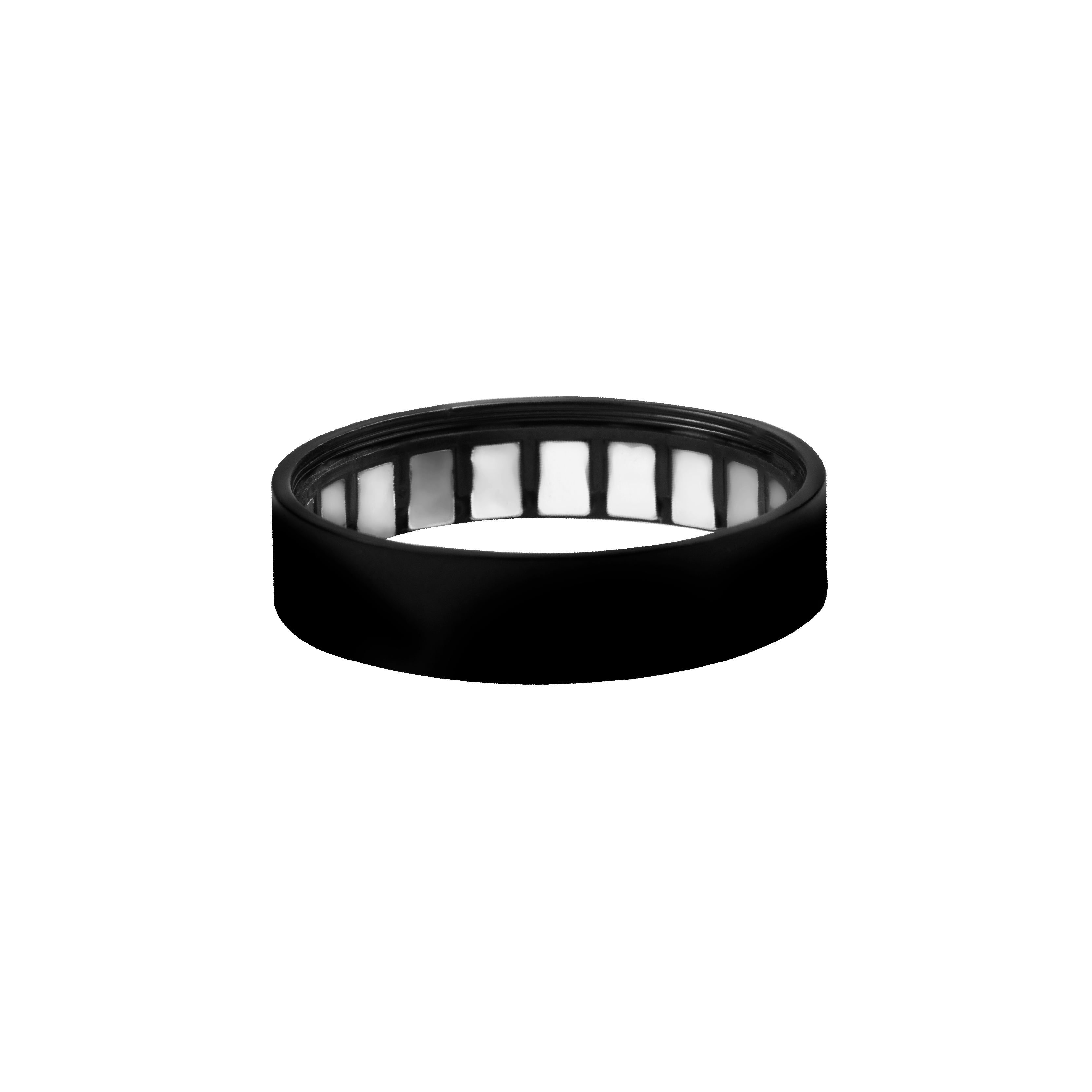

WK3505 magnet steel version installation drawing

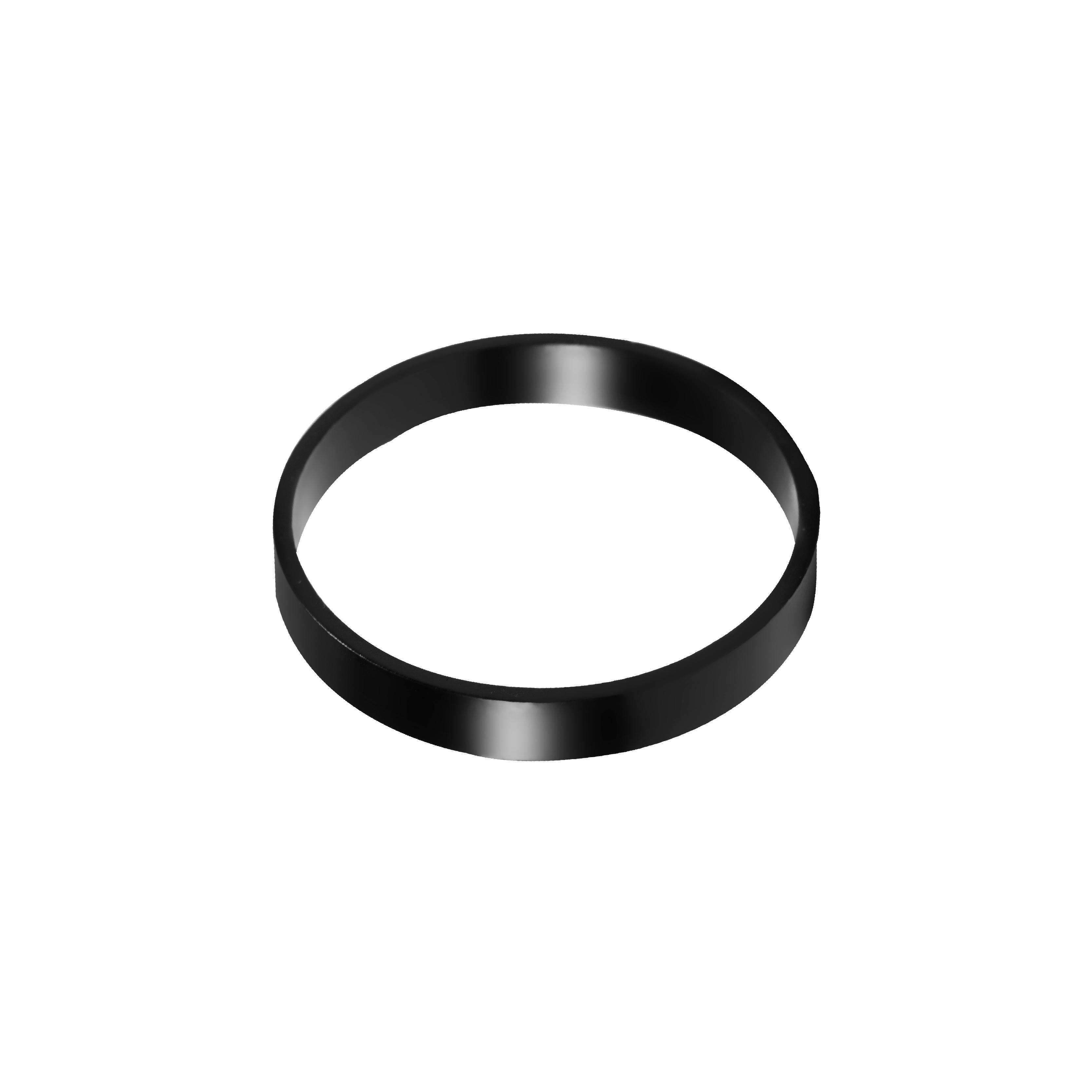

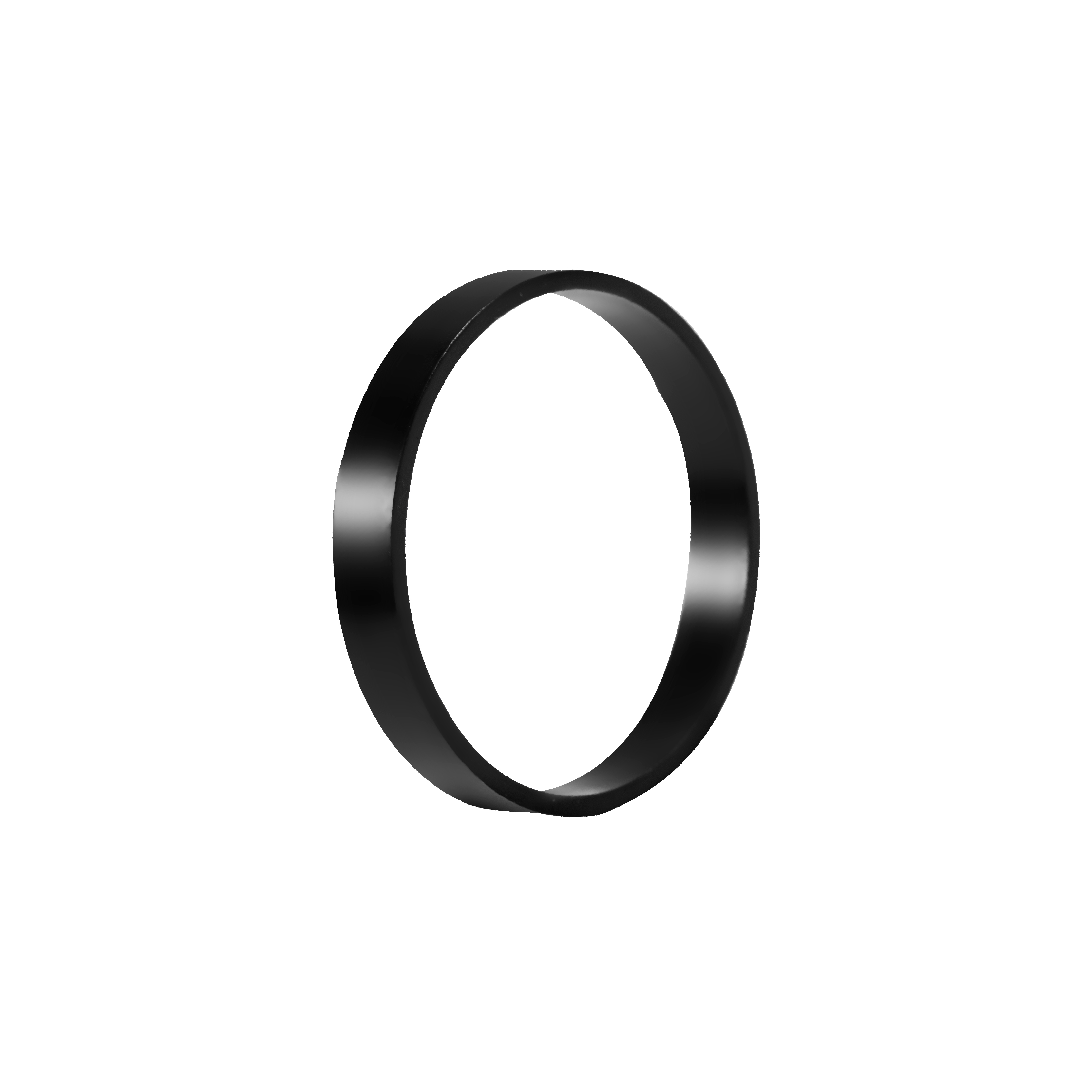

WK3505 magnet ring version installation drawing

WK3505 magnet steel version 3D model

WK3505 magnet ring version 3D model


参数/型号单位WK3505
额定电压(Nominal voltage)V12
额定电流(Nominal current)A1.1
额定扭矩(Nominal torque)N.M0.09
额定转速(Nominal speed)rpm467
最大转速(Max speed)rpm1610
堵转扭矩(Stall torque)N.M0.15
堵转电流(Stall current)A1.9
绕线匝数Winding turns of motor)T40
相电阻(Phase resistance)Ω6.34
相电感(Phase inductance)Mh1.08
转速常数(Speed constant)rpm/v117
扭矩常数(Torque constant)N.M/A0.08
转子惯量(Rotor inertia)gcm^256
极对数(Number of pole pairsPairs11
电机重量(Motor weight)g24/32
工作温度范围(Working temperature)-50~100
最高退磁温度(Max demagnetize tempersture)120
