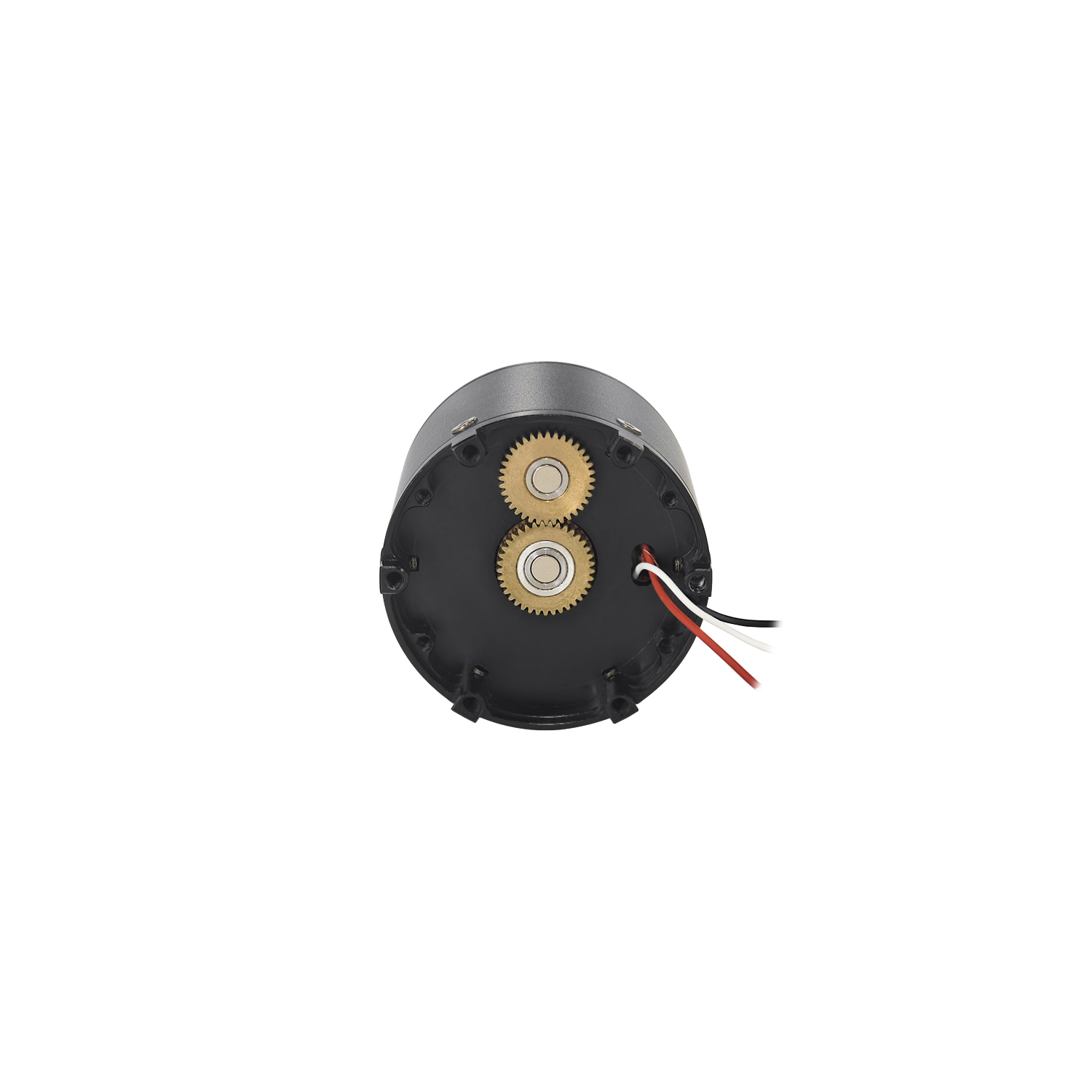

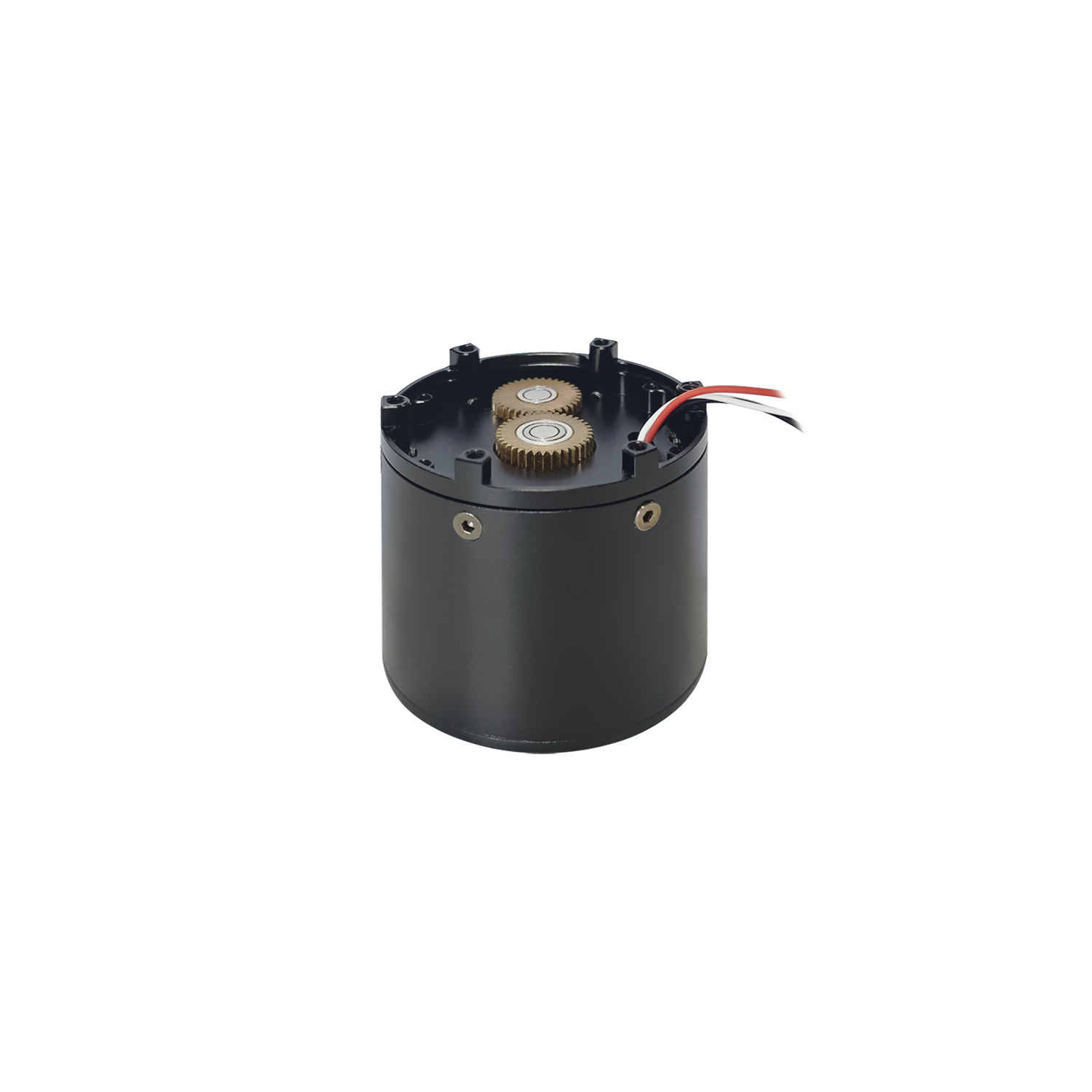

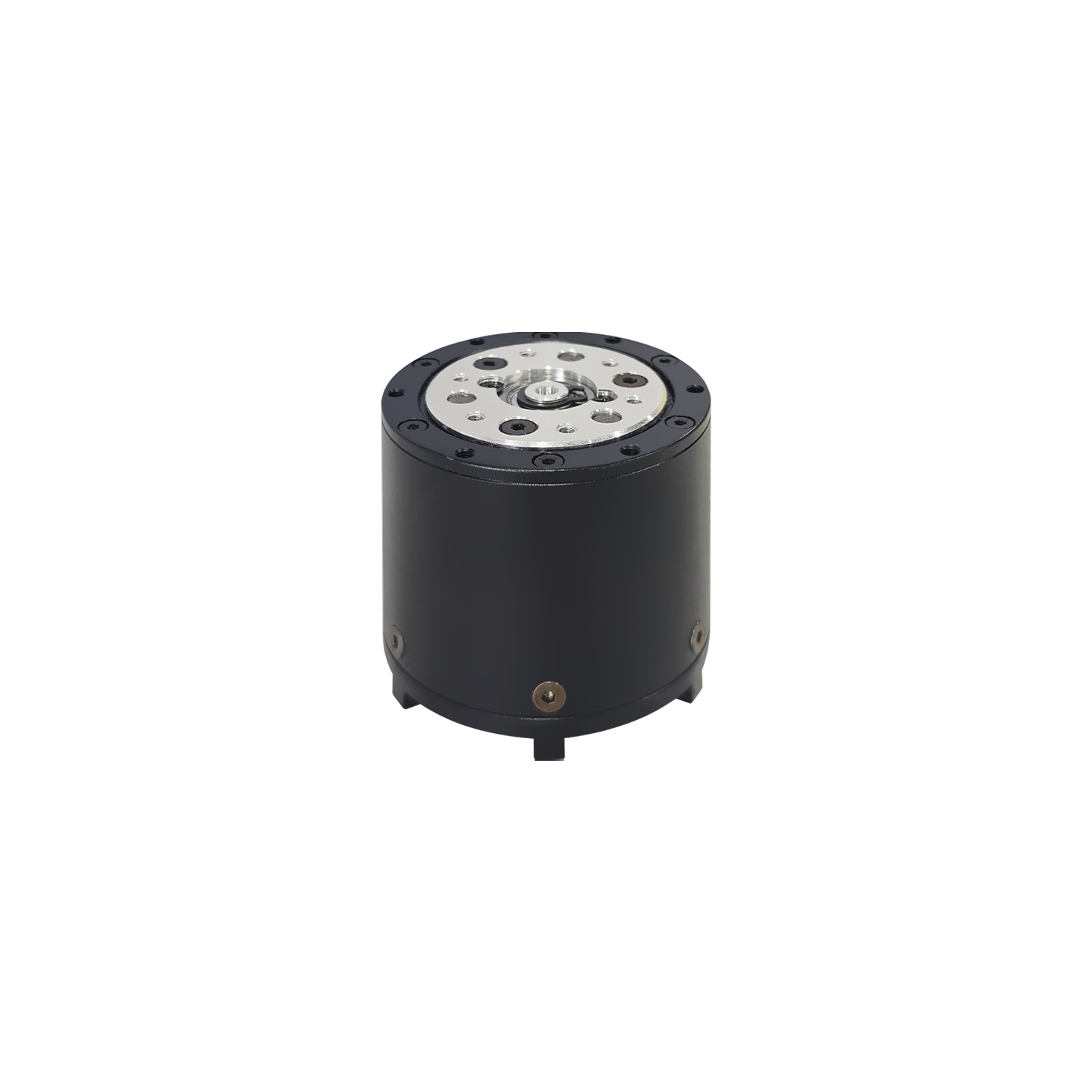

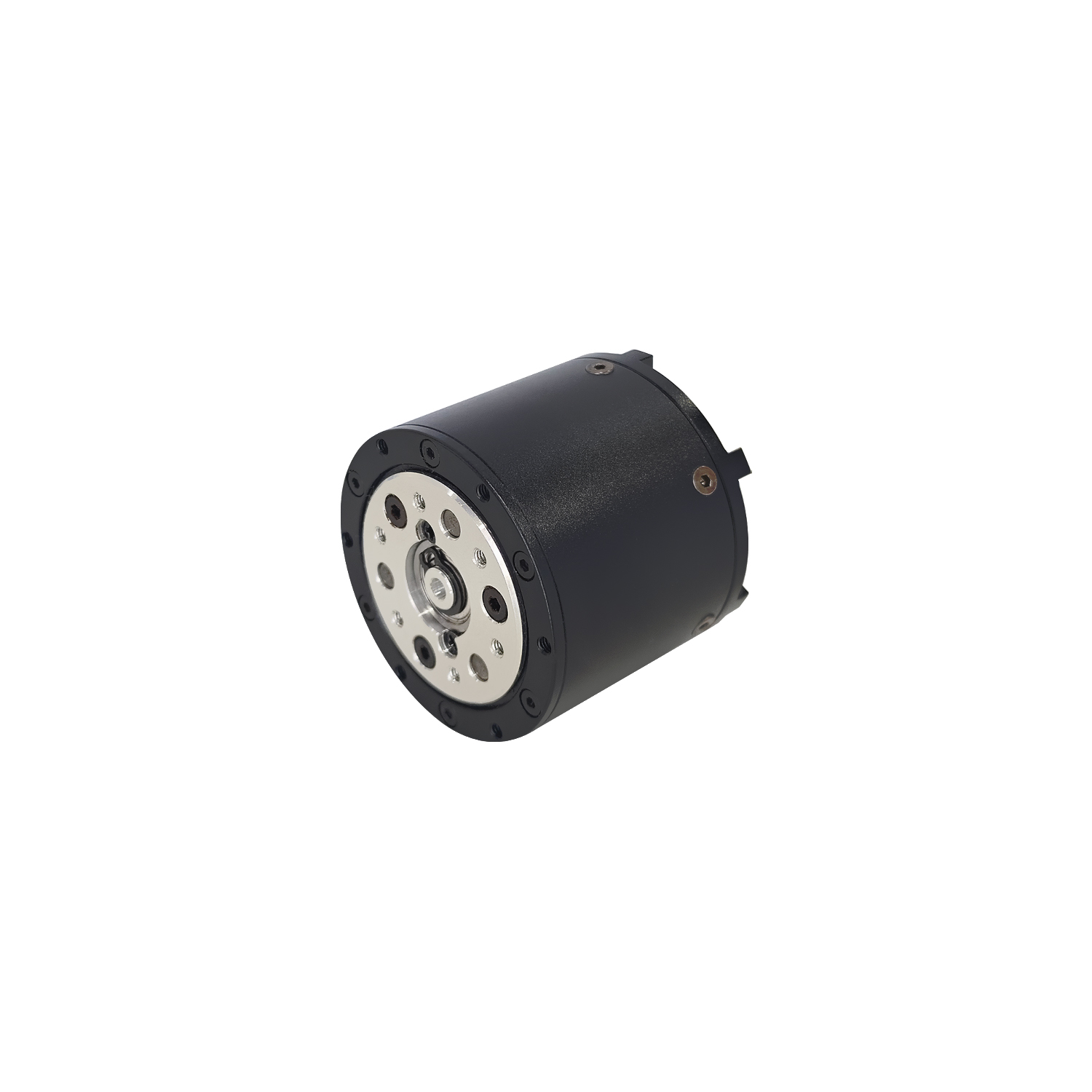

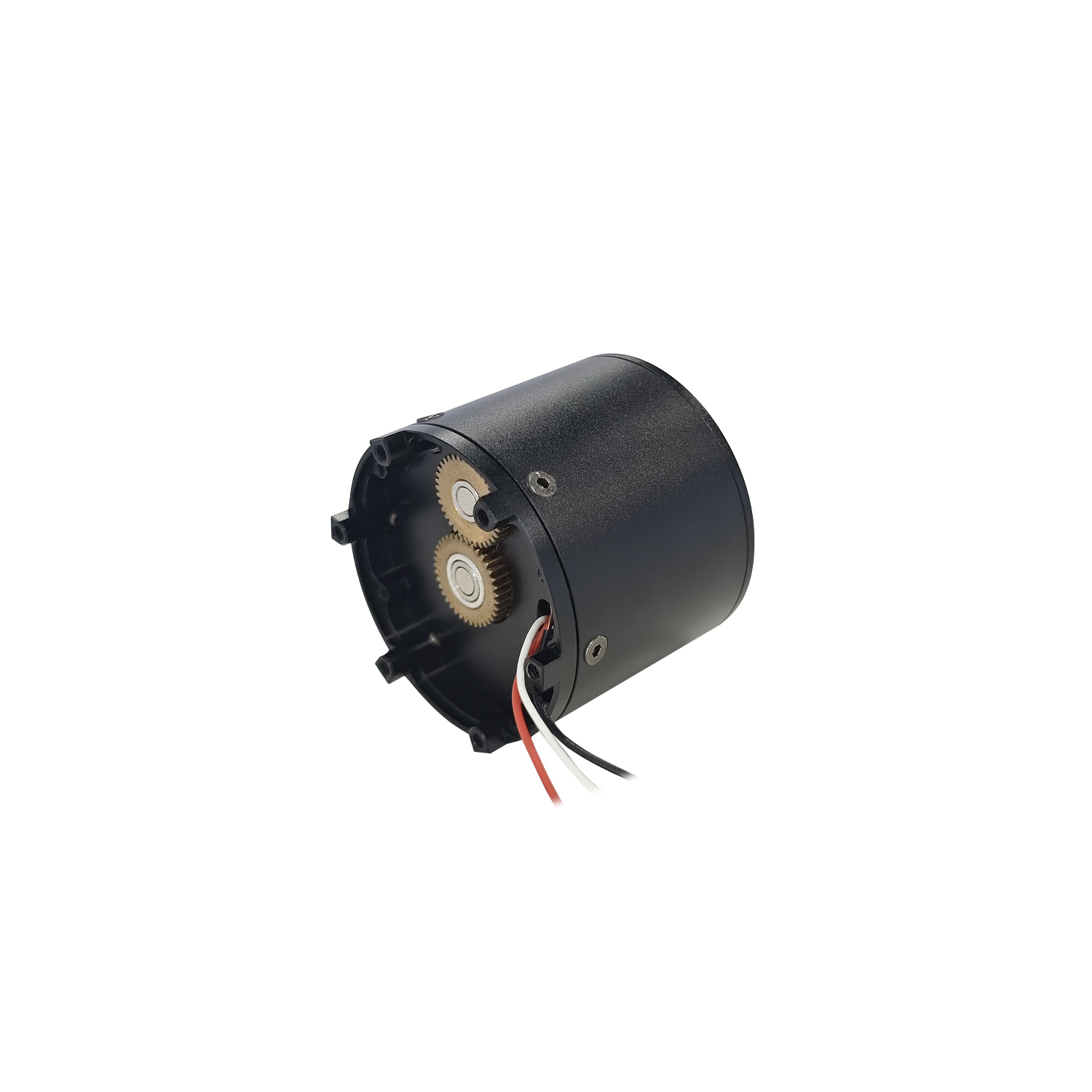

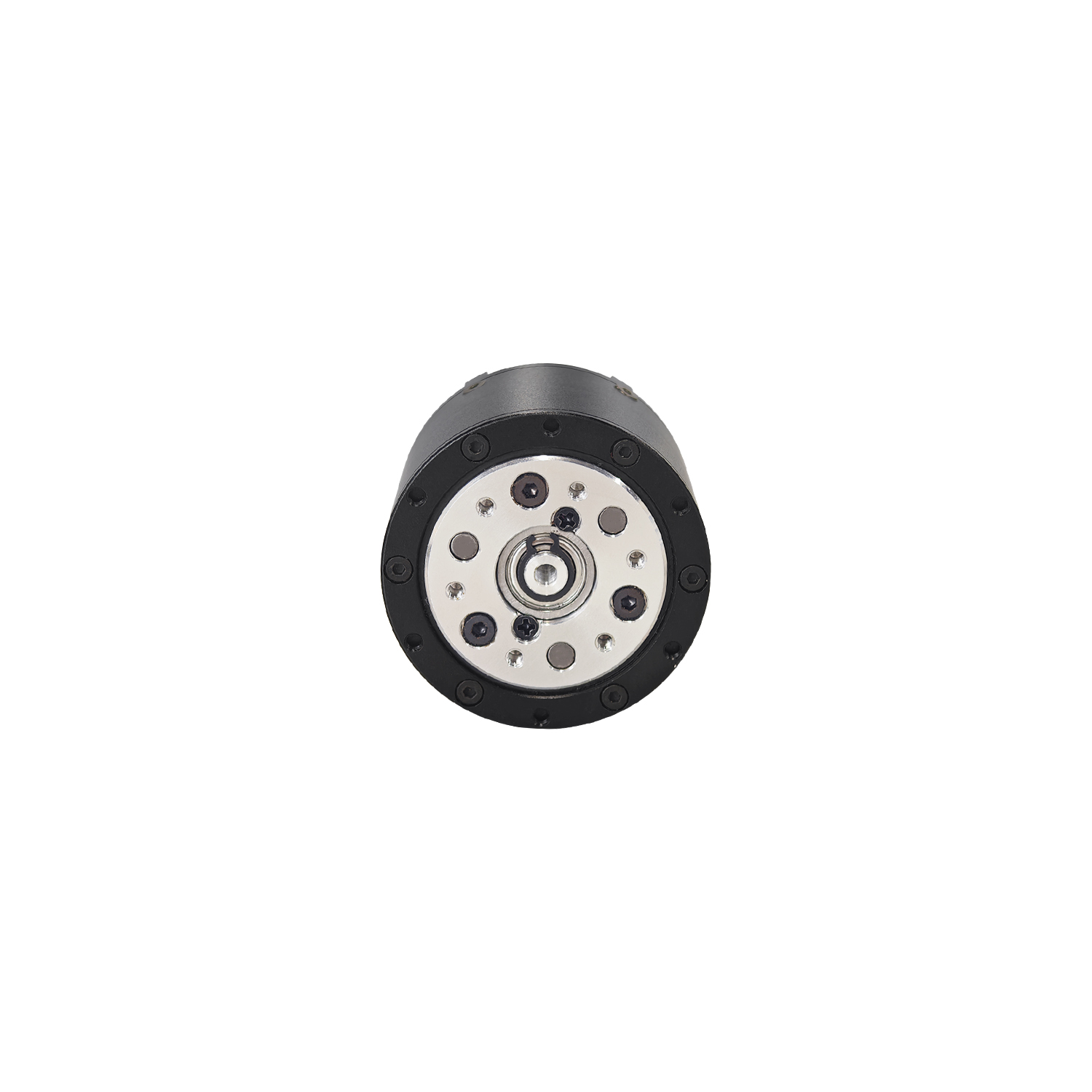

GIM3505-36

Model： GIM3505-36
Brand： SteadyWin
产品详情

DRAWINGS DOWNLOAD：

‍GIM3505-36 2D drawing‍

‍GIM3505-36 3D model


GIM3505-36
绕组方式(Winding Type)/Y
额定电压(Nominal Voltage)V24
电压范围(Voltage Range)V12~40
功率(Power)
W
41
额定扭矩(Nominal Torque)N.M3.12
堵转扭矩(Stall Torque)N.M8.01
减速后额定转速(Nominal Speed after Reduce)RPM55
减速后最大转速(Max Speed after Reduce)RPM97
额定电流(Nominal Current)A1.7
堵转电流(Stall Current)A4.54
相间电阻(Phase to Phase Resistance)Ω4.47
相间电感(Phase to Phase Inductance)mH0.45
转速常数(Speed Constant)rpm/v4.04
扭矩常数(Torque Constant)N.M/A2
极对数(Number of Pole Pairs)Pairs11
减速比(Gear Rate)/36:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/Copper
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g165.3
电机重量带驱动(Motor Weight with Driver)g177
电机尺寸不带驱动(Size without Driver)mmØ45*40.3
电机尺寸带驱动(Size with Driver)mmØ45*44.1
轴向最大负载(Max Axial Load)N75
径向最大负载(Max Radial Load)N300
噪音(Noise)dB＜60
通信协议(Communication)/CAN & RS485
第二编码器(Second Encoder)/YES
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit14
是否支持单独编码器(Separate Encoder)/YES
是否支持定制抱闸(Custom Brake)/YES

‍
