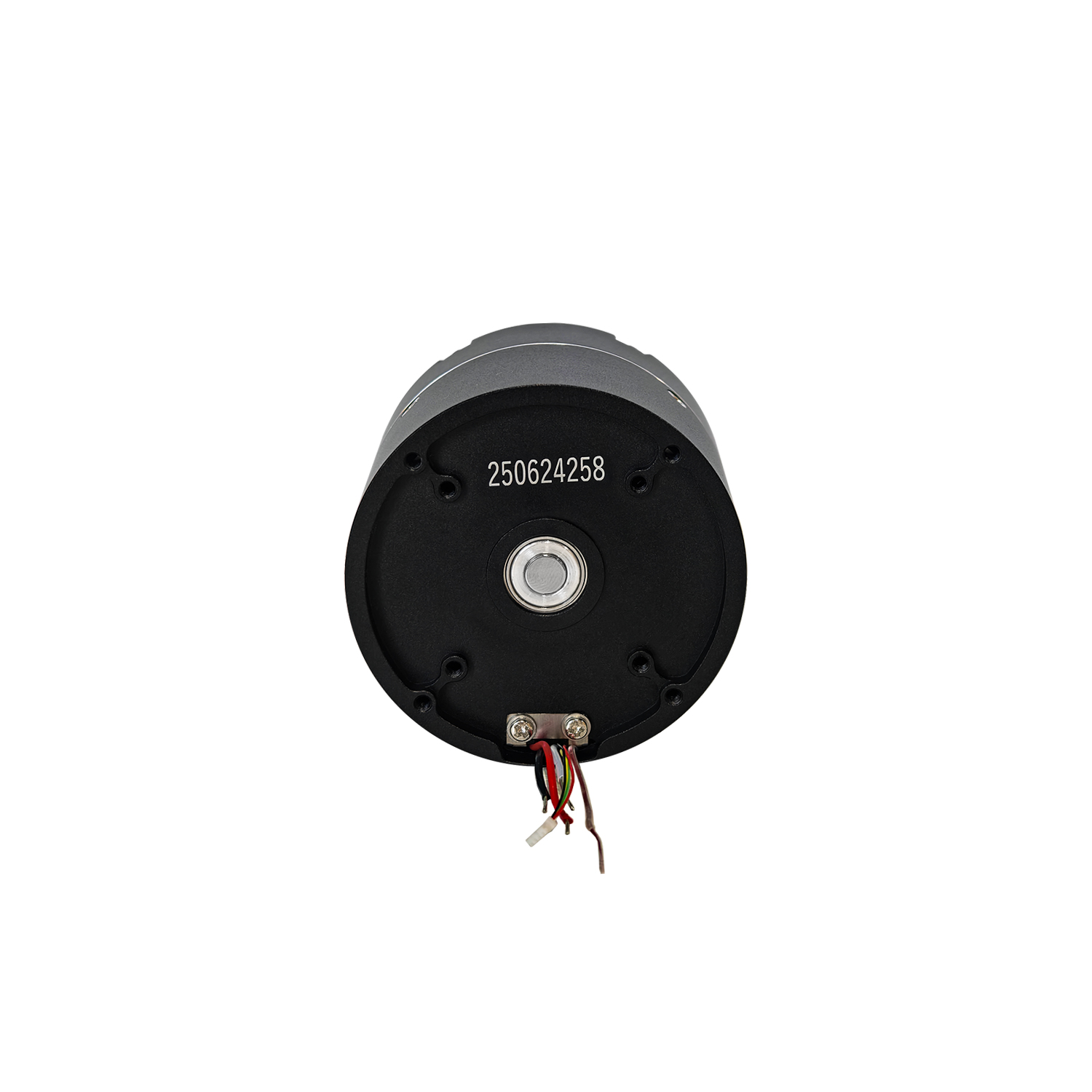

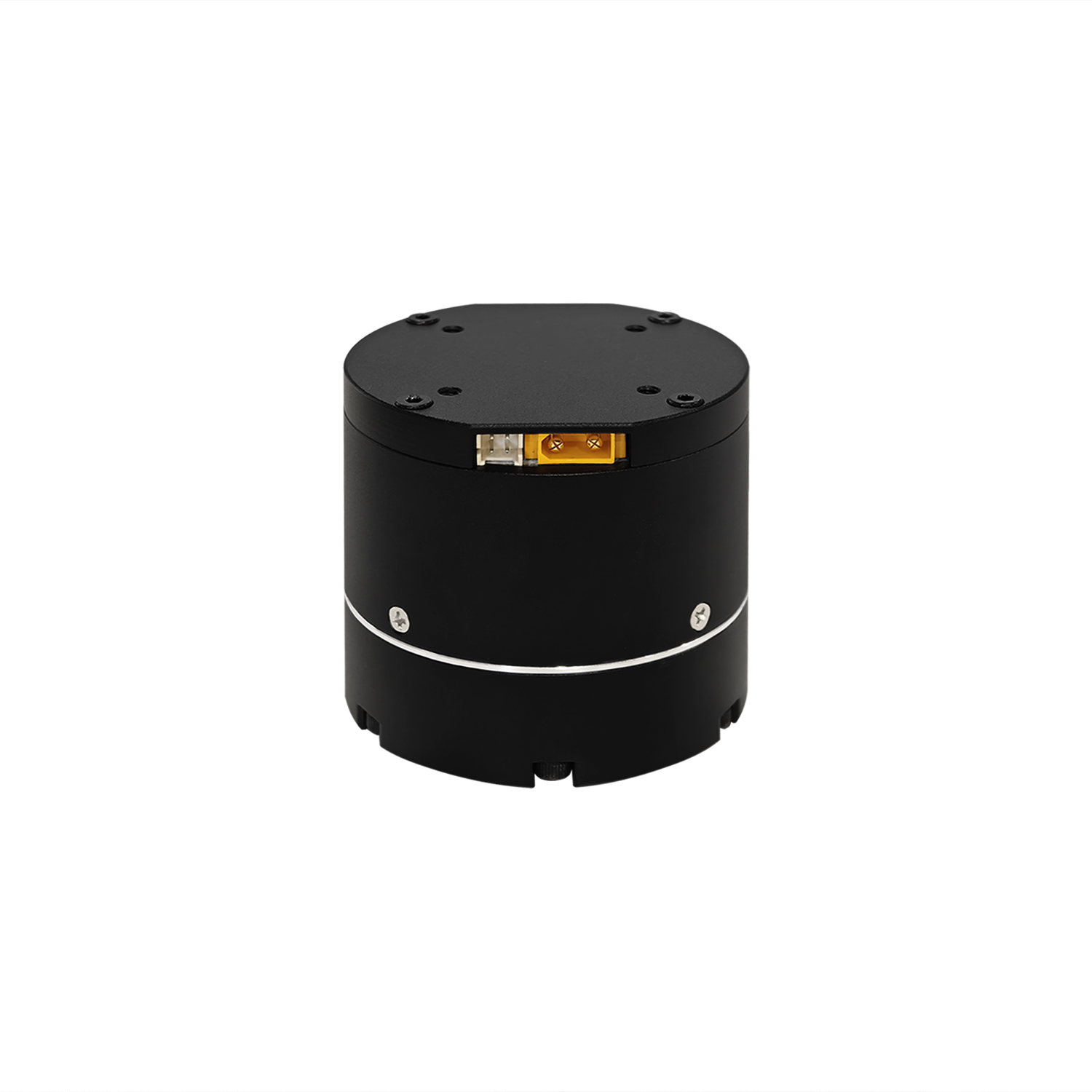

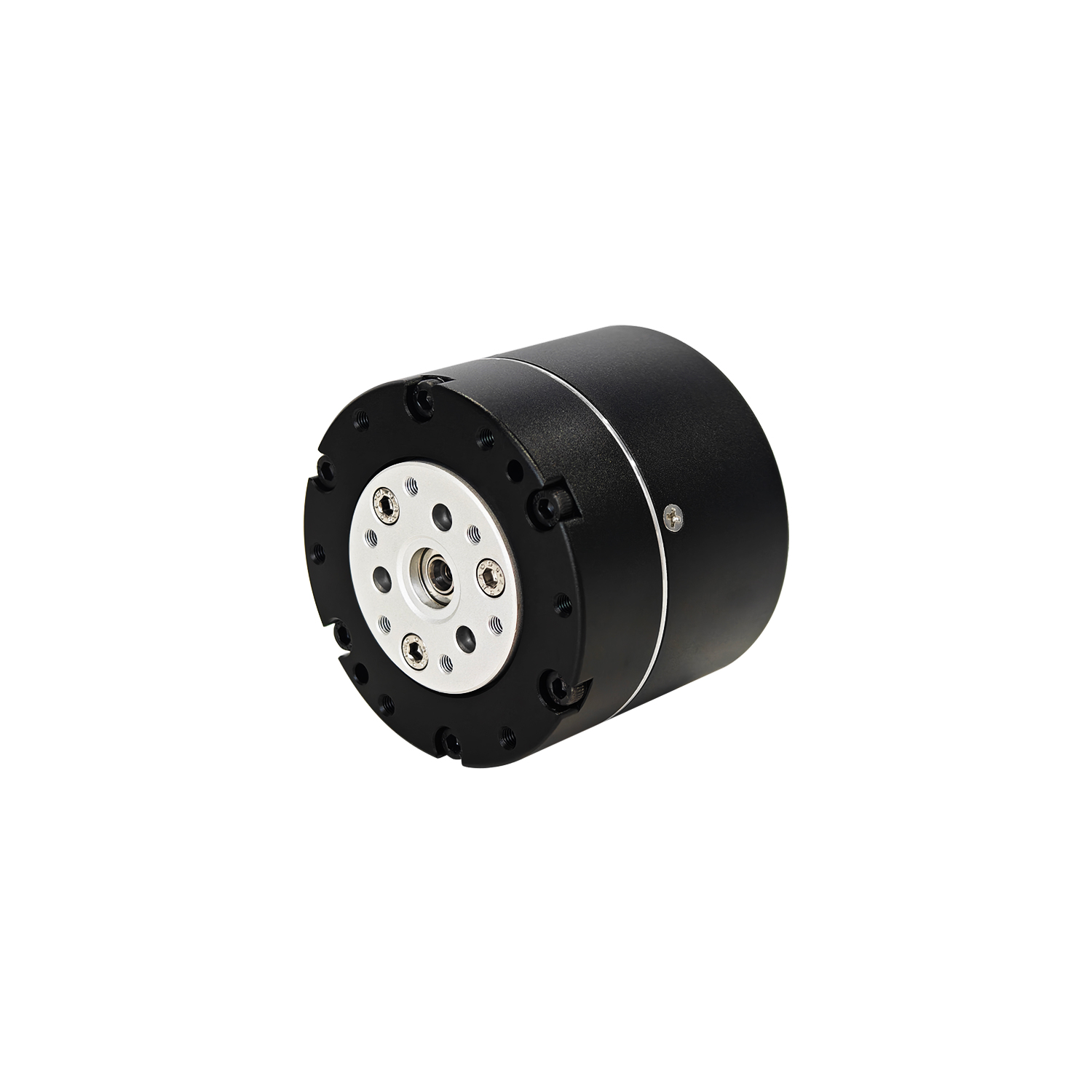

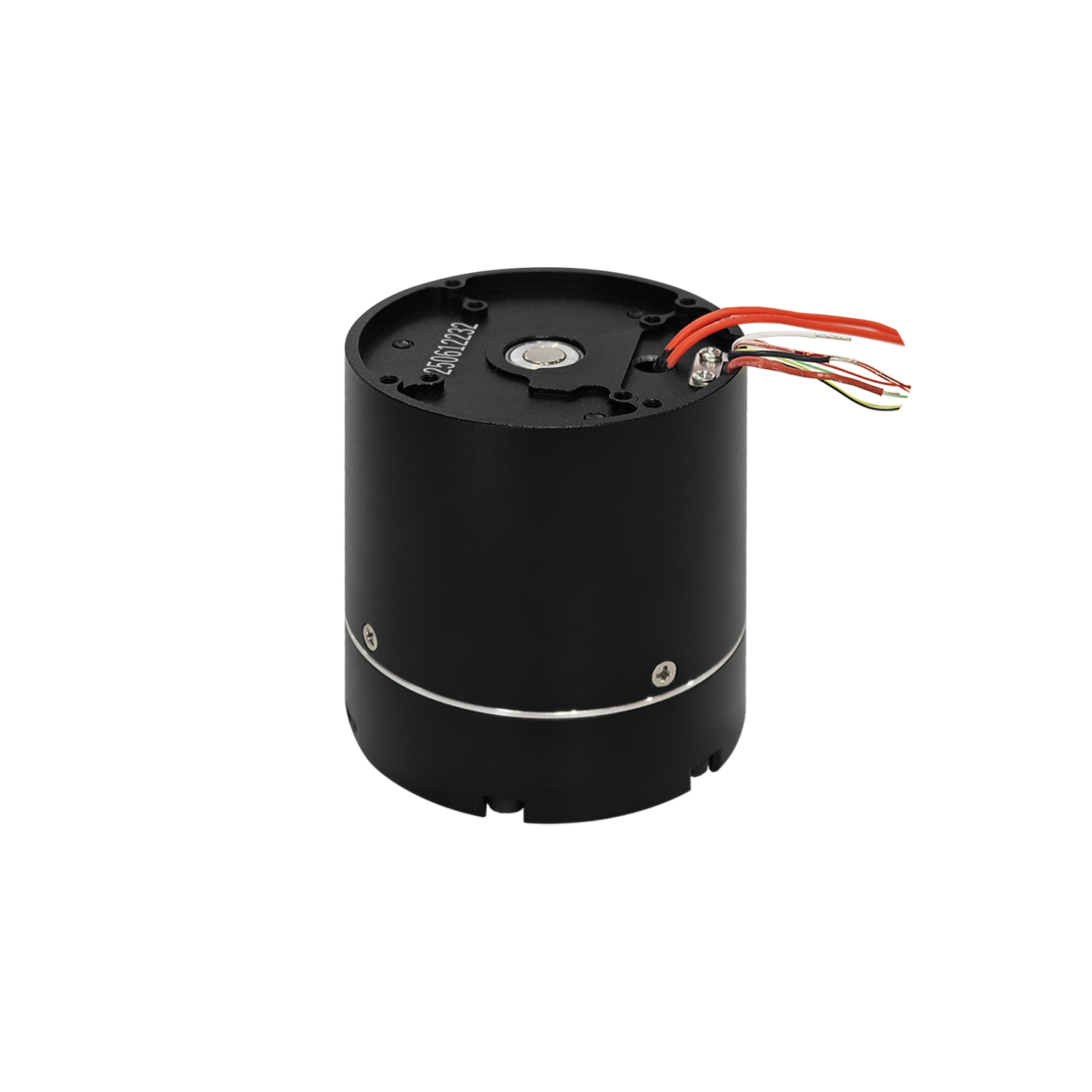

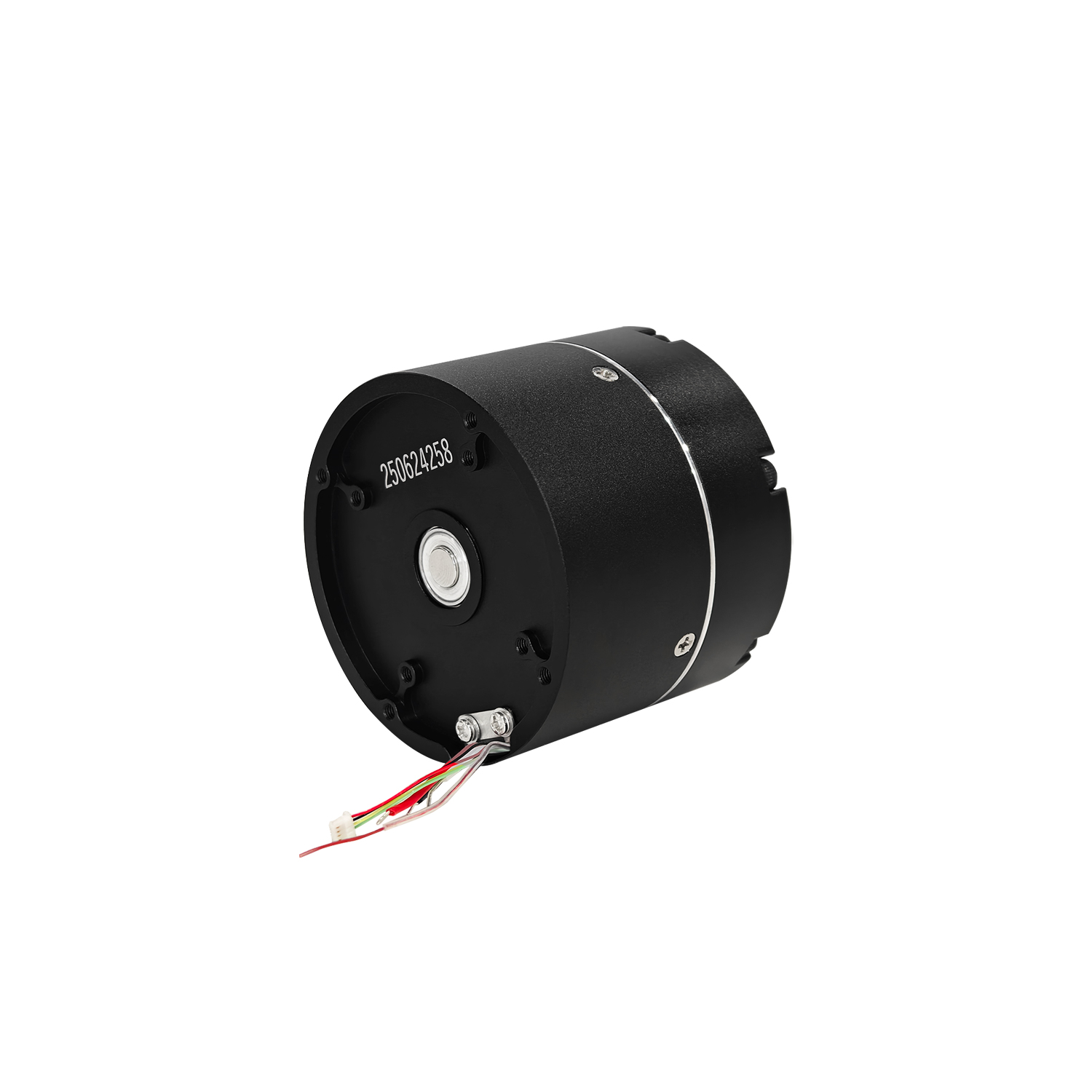

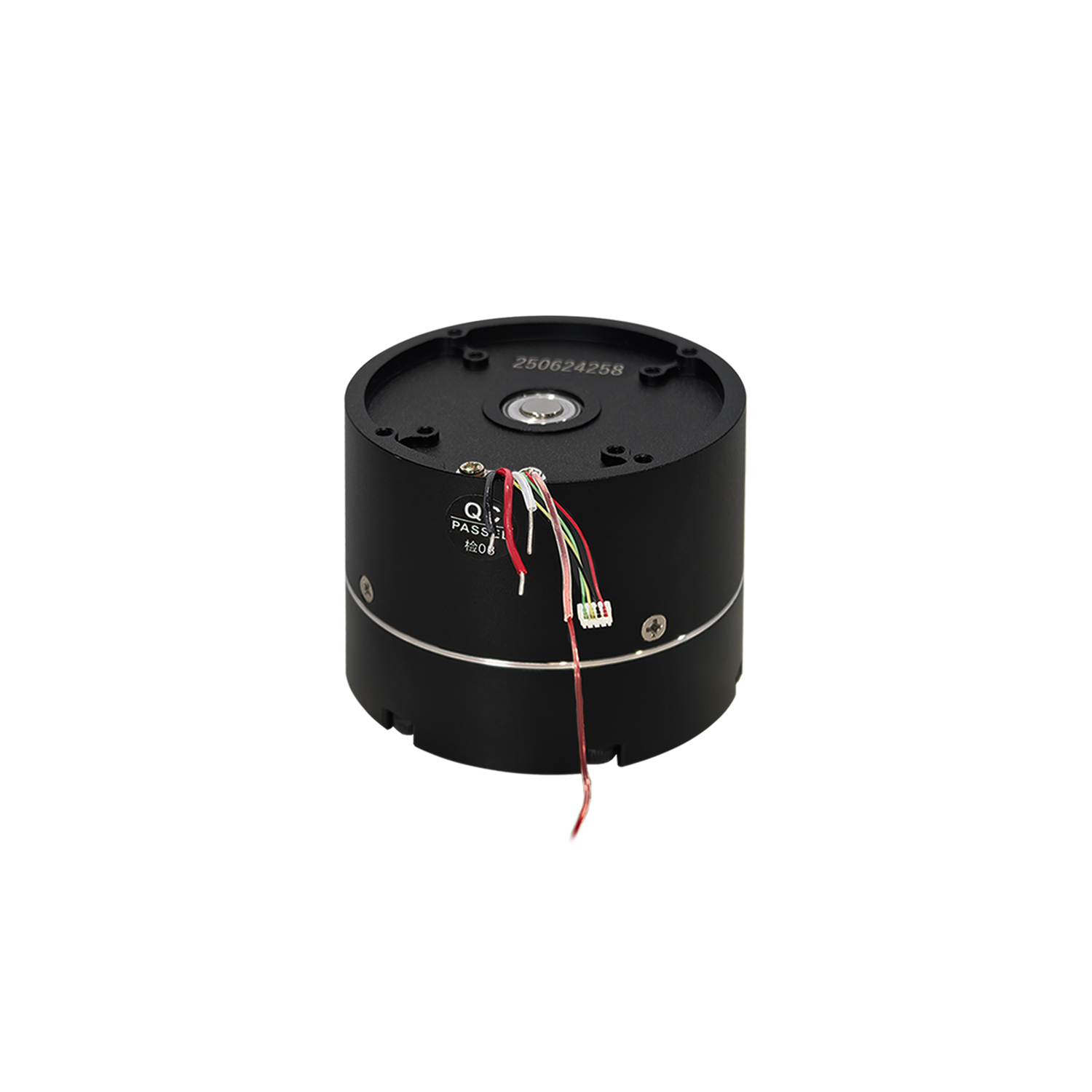

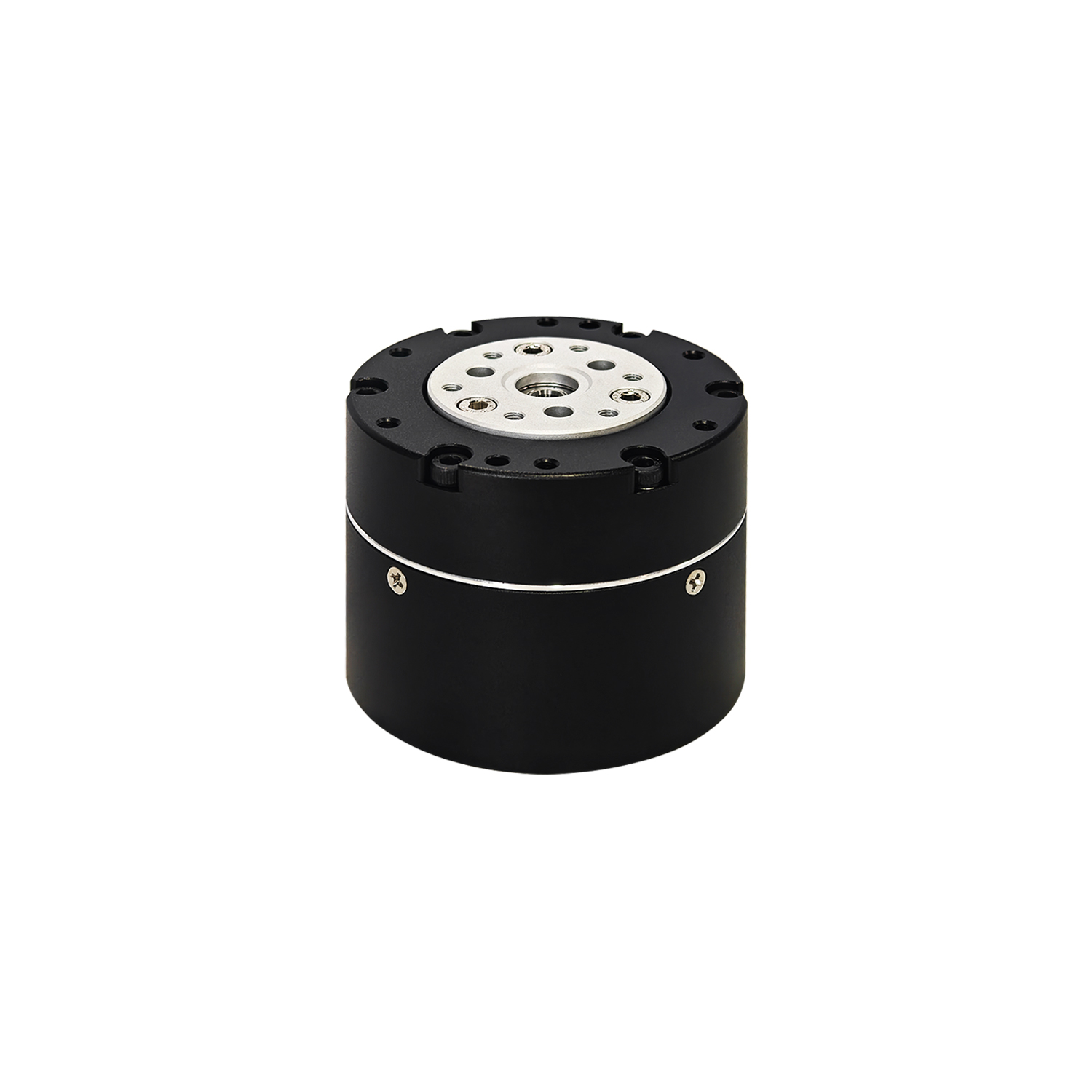

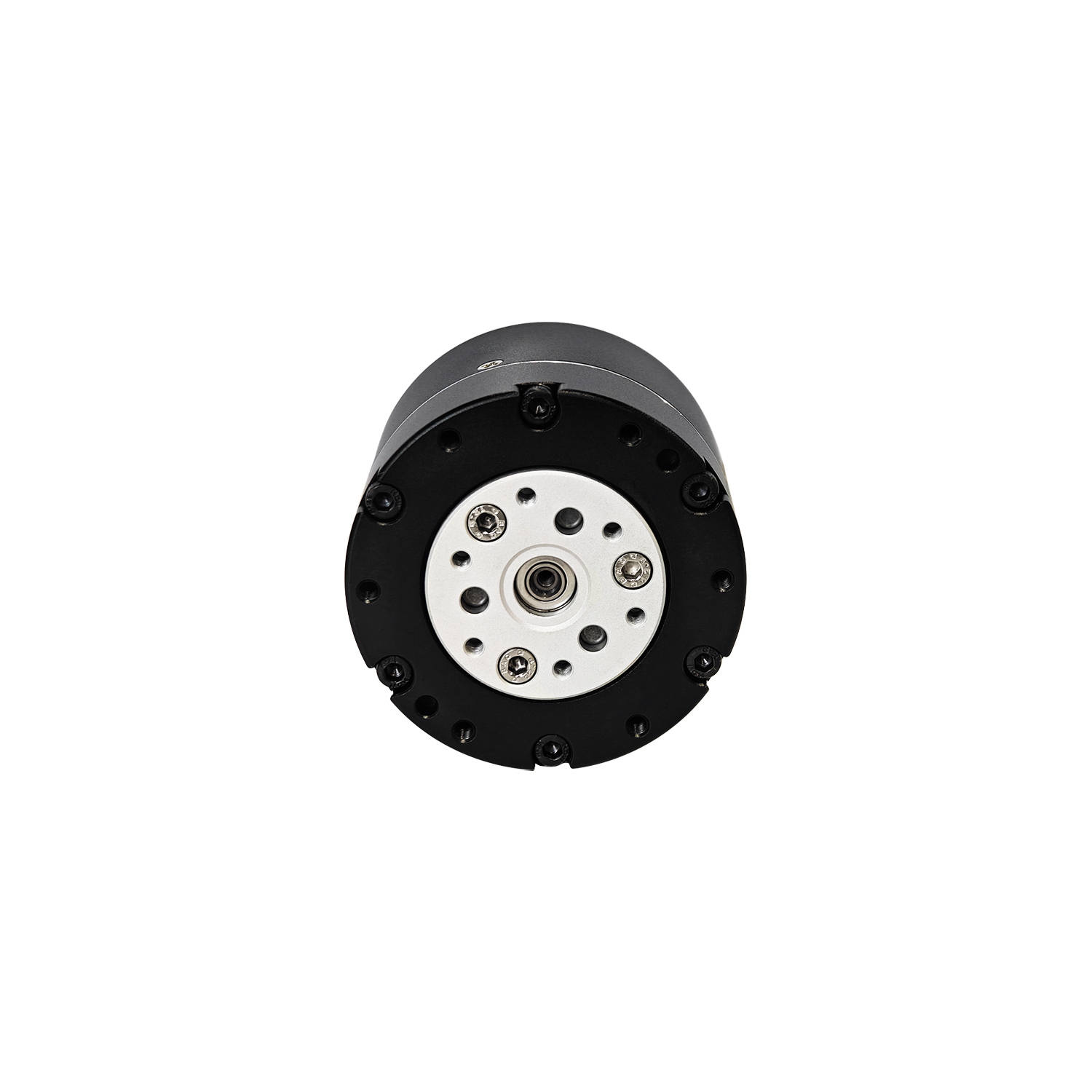

GIM4310-40

Model： GIM4310-40
Brand： SteadyWin
产品详情

GIM4310-40 installation drawing

GIM4310-40 with driver installation drawing

‍GIM4310-40 core installation drawing

GIM4310-40 with brake installation drawing

GIM4310-40 3D model

GIM4310-40 with driver 3D model‍‍‍

‍GIM4310-40 core 3D model‍ ‍ ‍ ‍ ‍ ‍ ‍ ‍

GIM4310-40 with brake 3D model‍ ‍ ‍


GIM4310-40
绕组方式(Winding Type)/Y
驱动板型号(Driver Model)
/GDZ4-40
额定电压(Nominal Voltage)V24
电压范围(Voltage Range)V12~40
功率(Power)
W
89
额定扭矩(Nominal Torque)N.M8.5
堵转扭矩(Stall Torque)N.M30.59
减速后额定转速(Nominal Speed after Reduce)RPM70
减速后最大转速(Max Speed after Reduce)RPM86
额定电流(Nominal Current)A3.7
堵转电流(Stall Current)A17.1
相间电阻(Phase to Phase Resistance)Ω0.27
相间电感(Phase to Phase Inductance)mH0.8
转速常数(Speed Constant)rpm/v3.58
扭矩常数(Torque Constant)N.M/A1.79
极对数(Number of Pole Pairs)Pairs14
减速比(Gear Rate)/40:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/STEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g336.7
电机重量带驱动(Motor Weight with Driver)g364.5
电机尺寸不带驱动(Size without Driver)mmØ57*46
电机尺寸带驱动(Size with Driver)mmØ57*56
轴向最大负载(Max Axial Load)N125
径向最大负载(Max Radial Load)N500
噪音(Noise)dB＜60
通信协议(Communication)/CAN & RS485
第二编码器(Second Encoder)/YES
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit14
是否支持单独编码器(Separate Encoder)/NO
是否支持定制抱闸(Custom Brake)/YES
