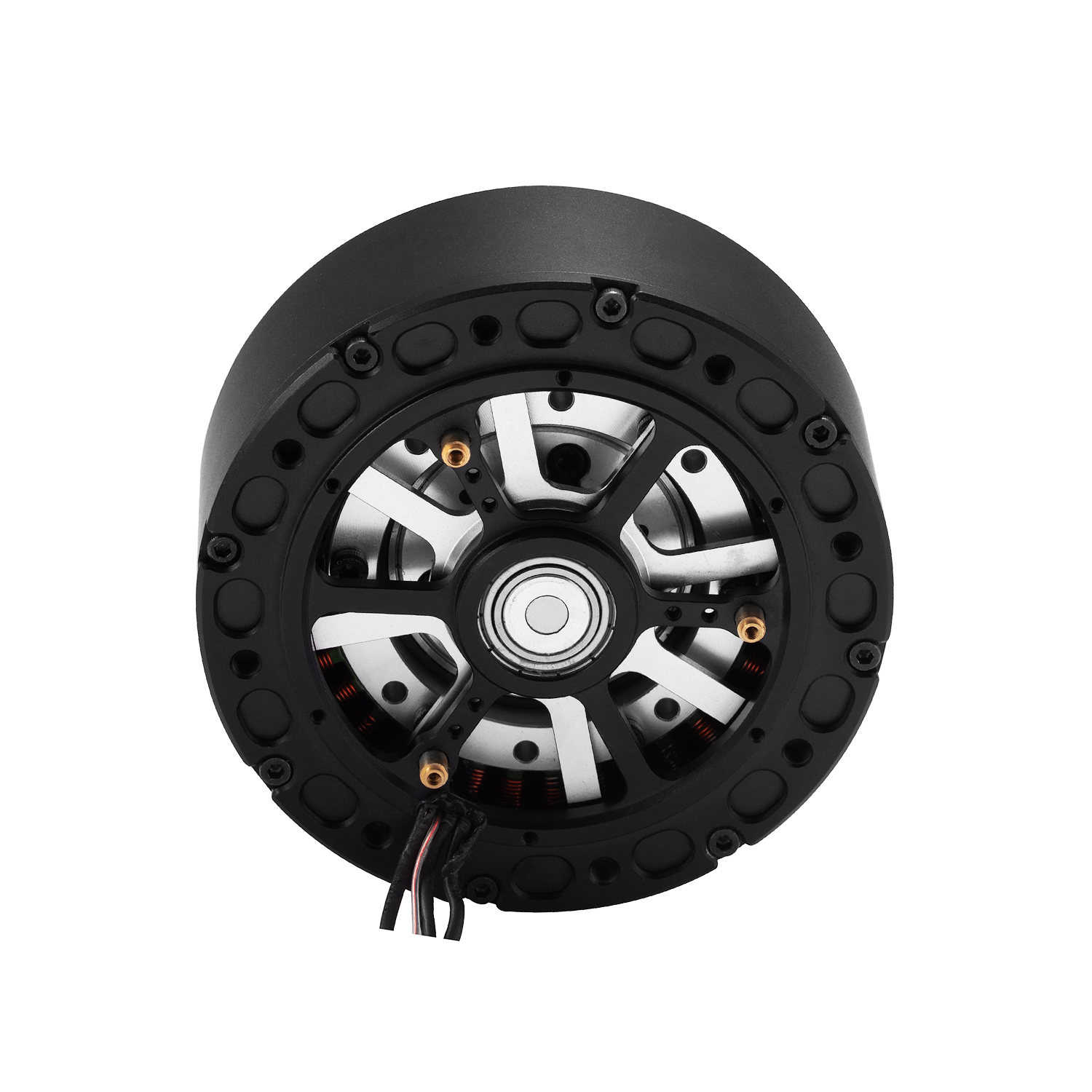

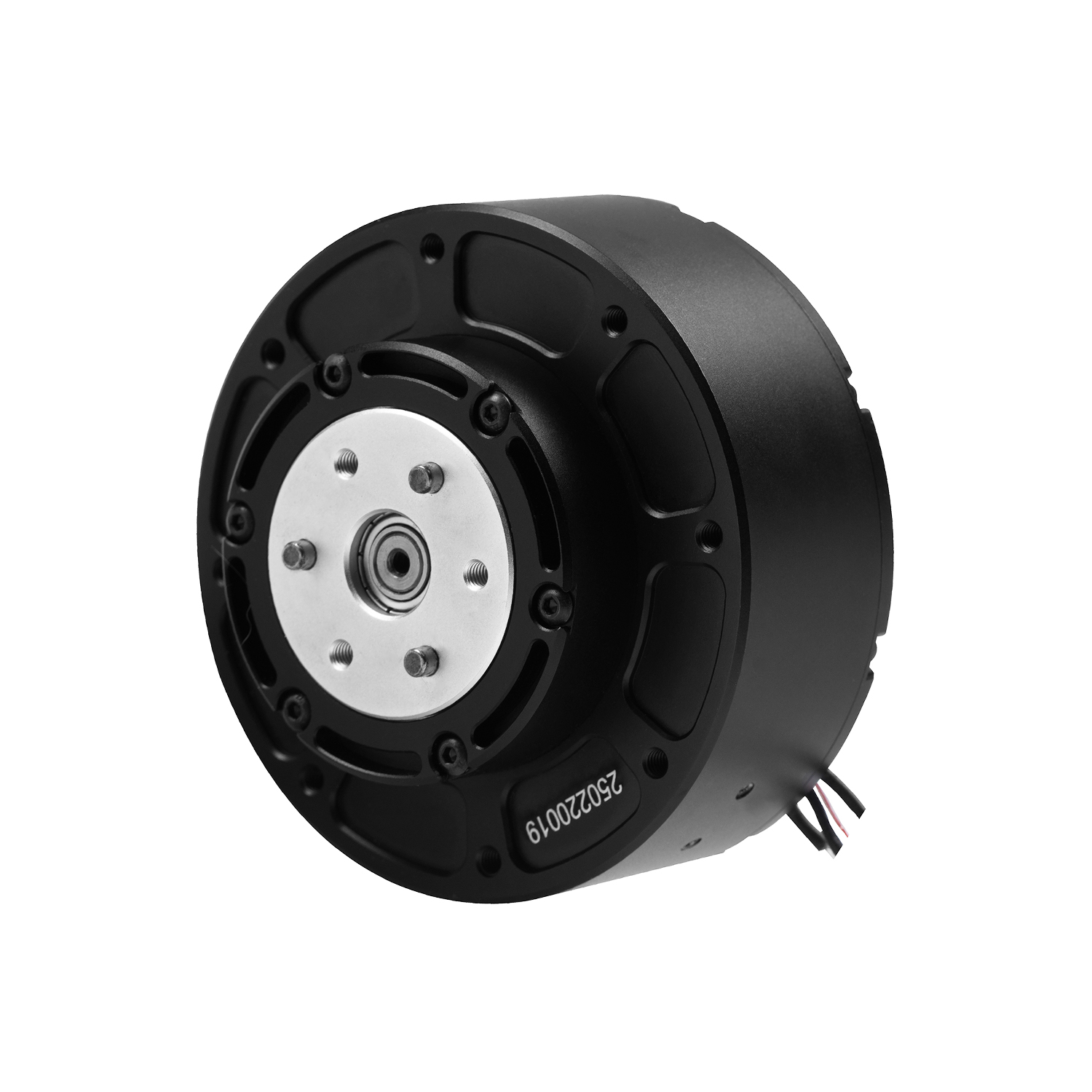

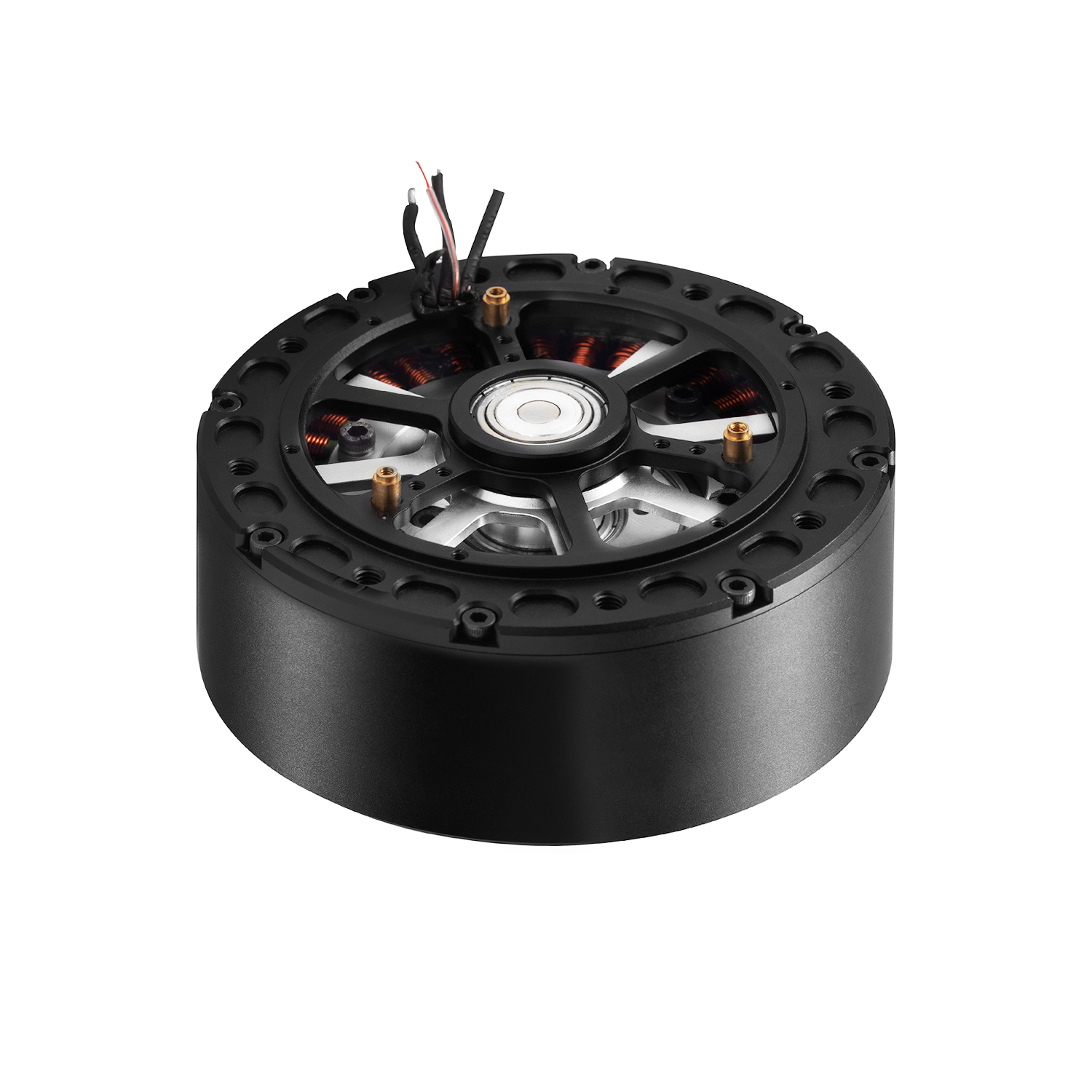

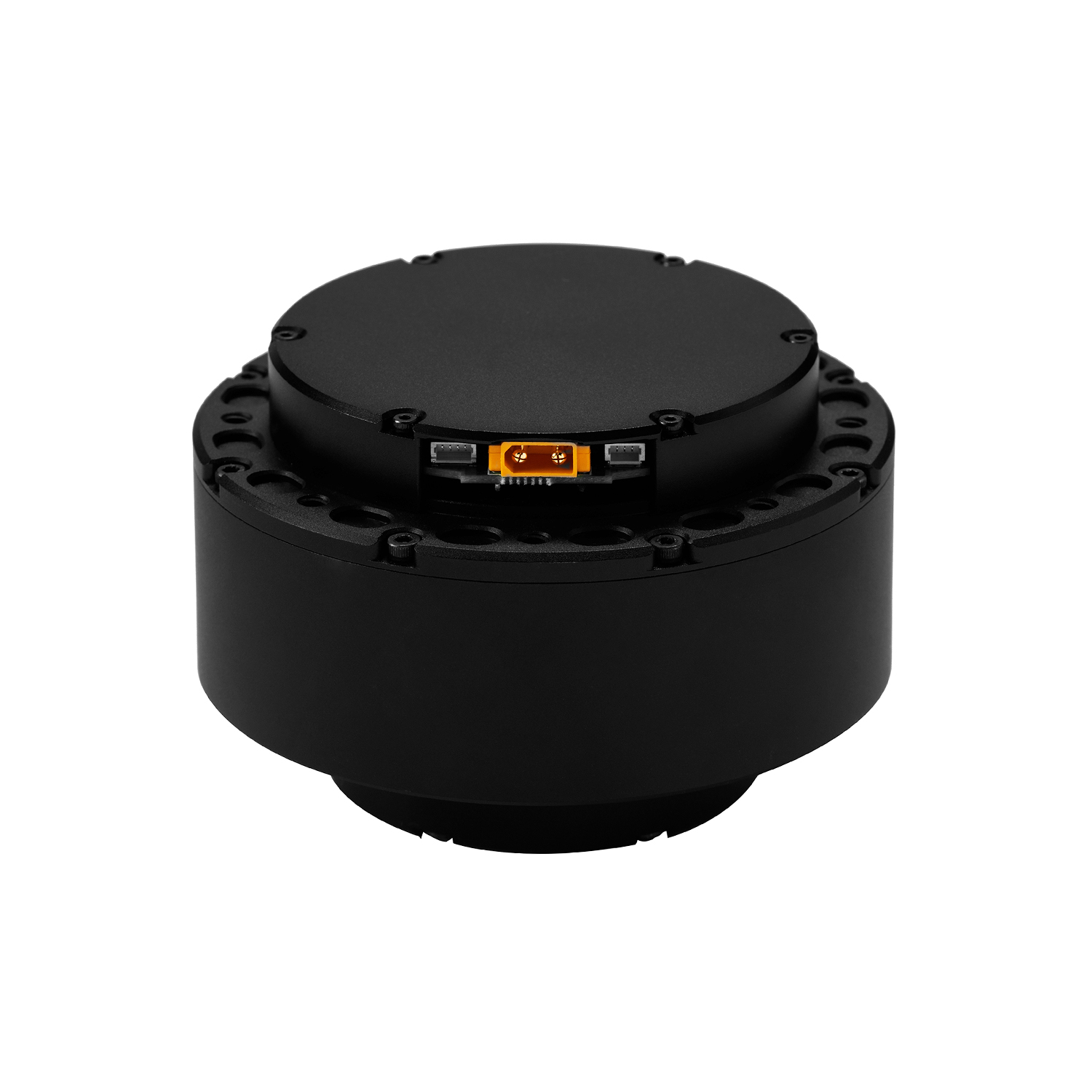

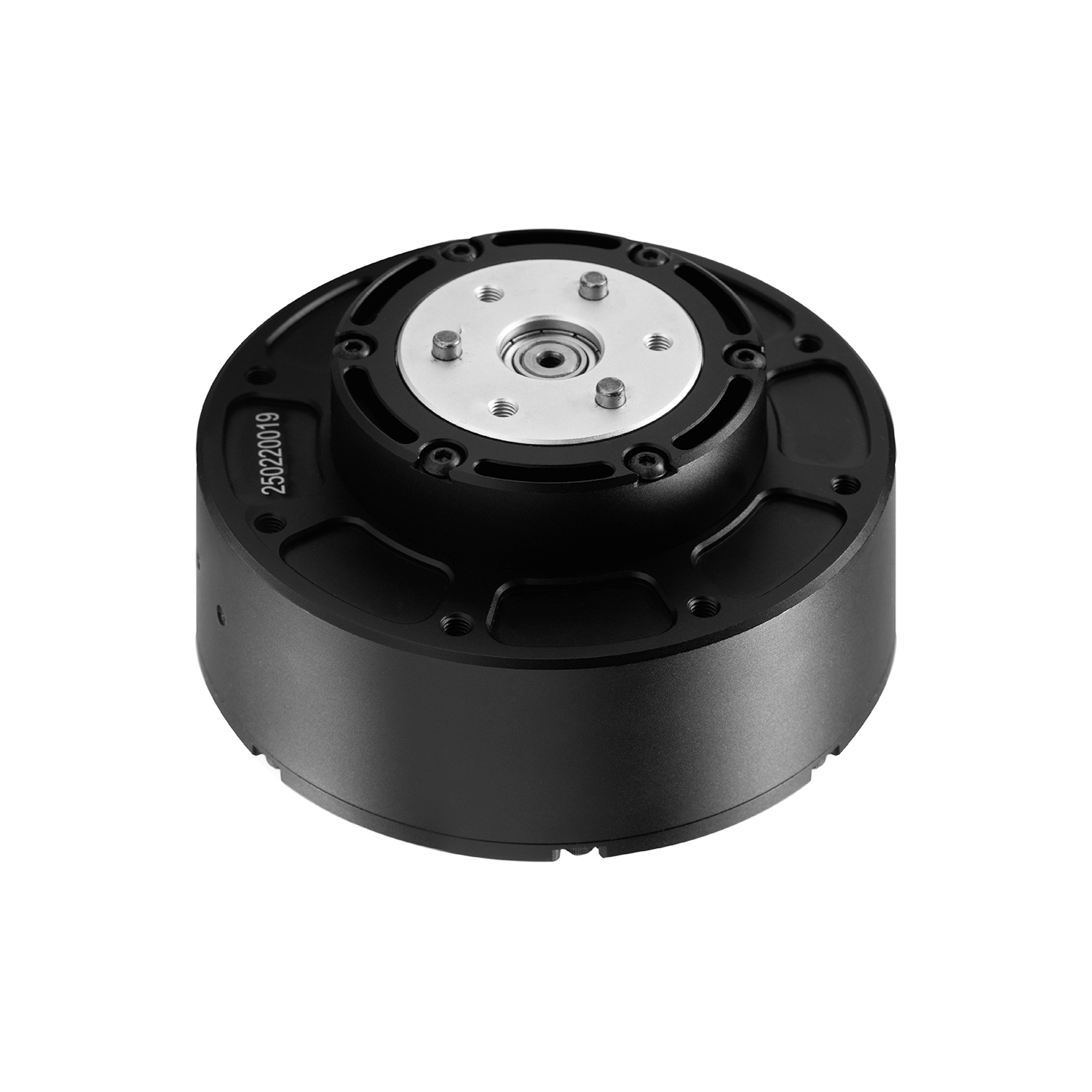

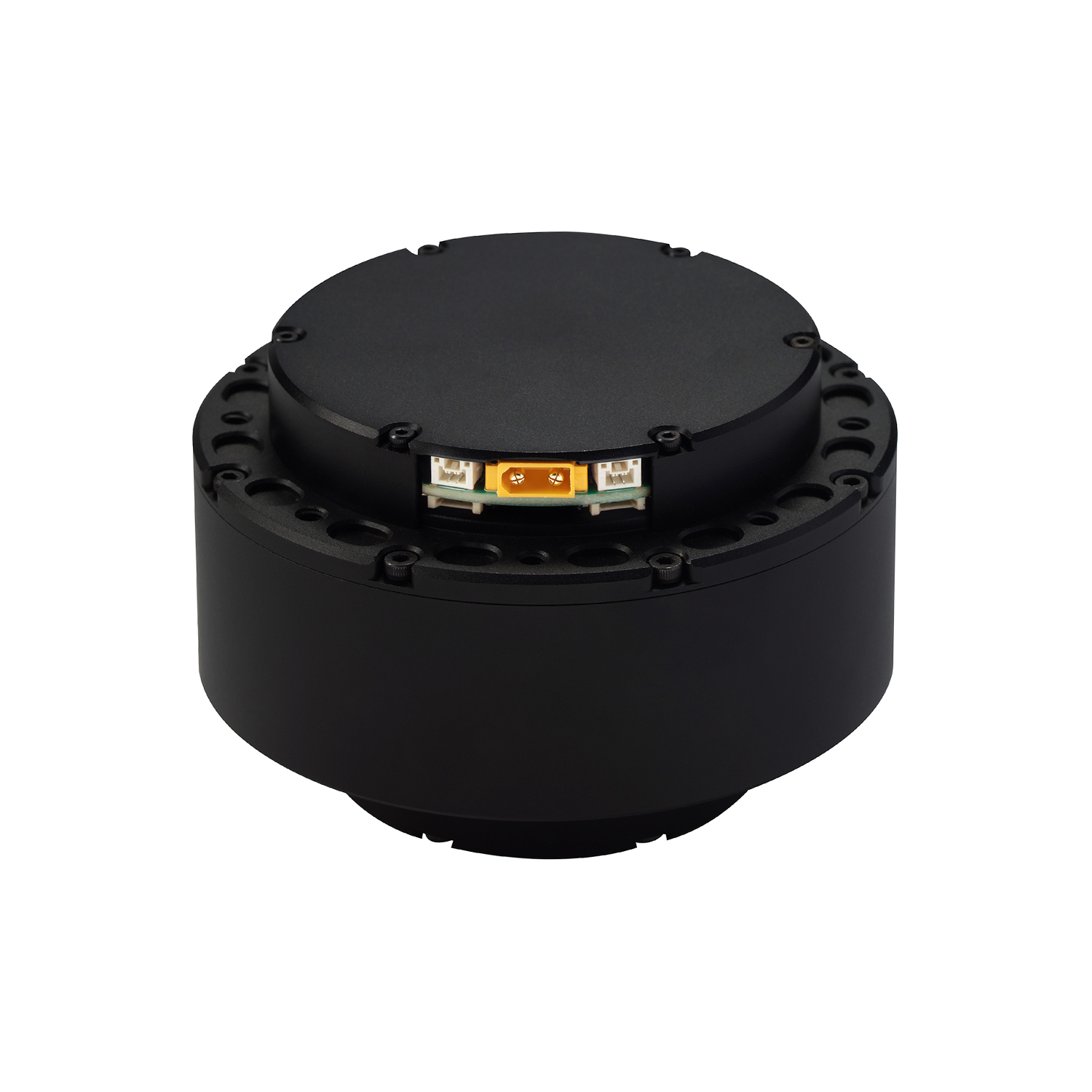

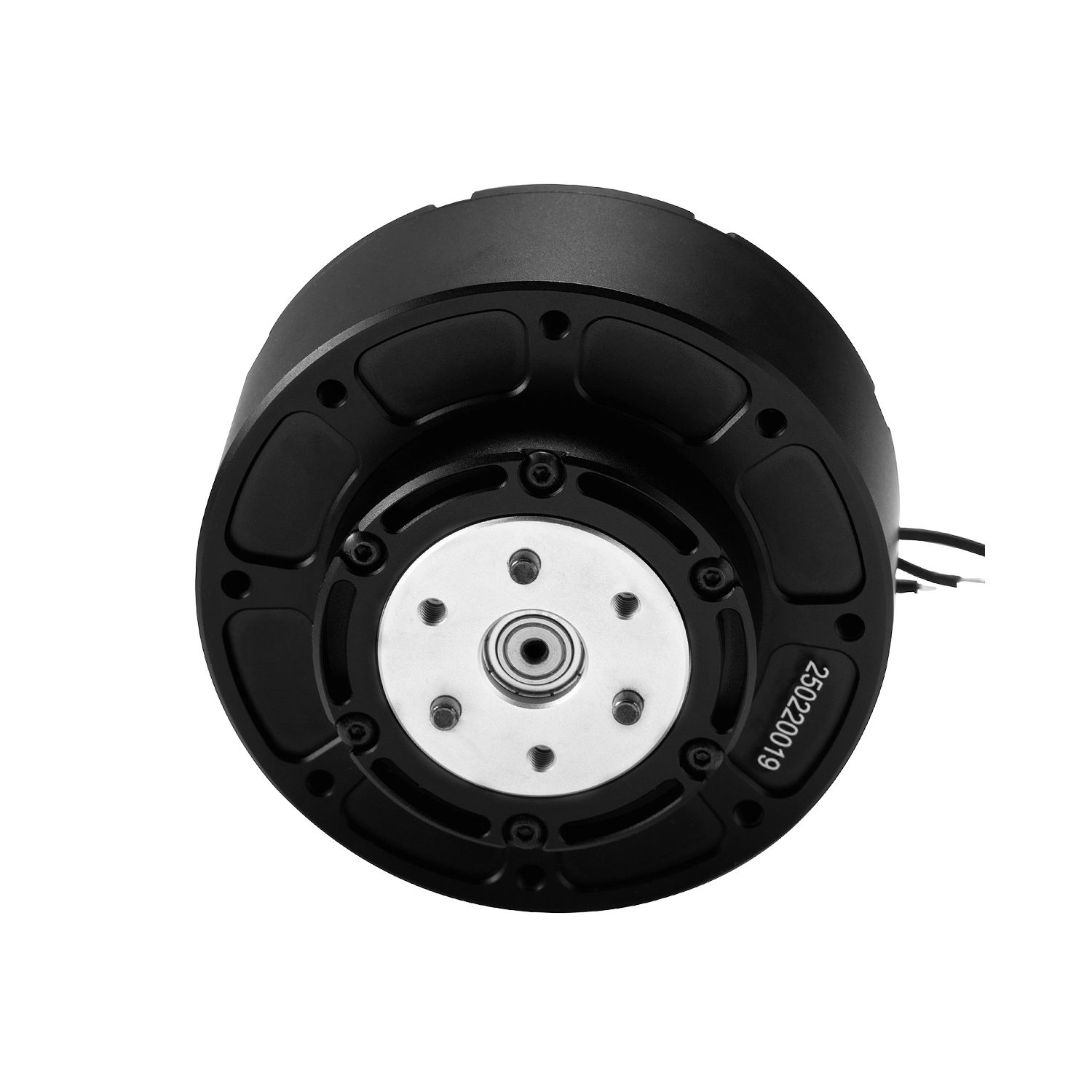

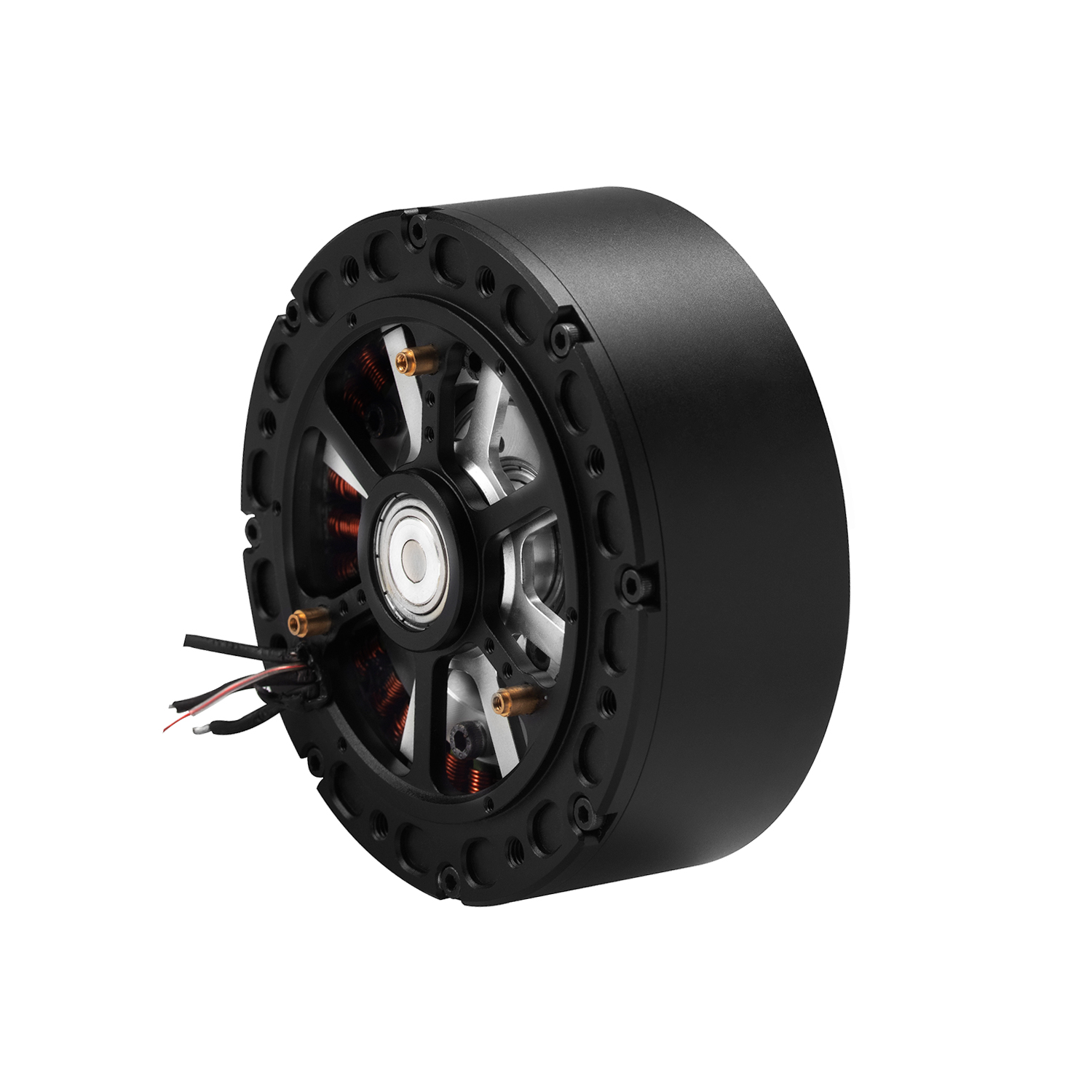

GIM8115-36

Model： GIM8115-36
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

‍GIM8115-36 installation drawing

GIM8115-36 3D model‍


GIM8115-36
绕组方式(Winding Type)/▲Y▲Y
驱动板型号(Driver Model)/GDS810GDM810
额定电压(Nominal Voltage)V24482448
电压范围(Voltage Range)V12~4812~4812~4812~48
功率(Power)W163230197226
额定扭矩(Nominal Torque)N.M45.65450.445
堵转扭矩(Stall Torque)N.M132228186216
减速后额定转速(Nominal Speed after Reduce)RPM26292935
减速后最大转速(Max Speed after Reduce)RPM32363540
额定电流(Nominal Current)A6.84.88.24.7
堵转电流(Stall Current)A20.5212320
相间电阻(Phase to Phase Resistance)Ω0.980.980.980.98
相间电感(Phase to Phase Inductance)mH0.550.550.550.55
转速常数(Speed Constant)rpm/v1.330.751.460.83
扭矩常数(Torque Constant)N.M/A6.5611.055.939.68
极对数(Number of Pole Pairs)Pairs21212121
减速比(Gear Rate)/36:136:136:136:1
减速器类型(Gear Type)/PlanetaryPlanetaryPlanetaryPlanetary
减速器齿轮材料(Reducer Gear Material)/STEELSTEELSTEELSTEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15151515
电机重量不带驱动(Motor Weight without Driver)g920920920920
电机重量带驱动(Motor Weight with Driver)g960960960960
电机尺寸不带驱动(Size without Driver)mmØ96*51.5Ø96*51.5Ø96*51.5Ø96*51.5
电机尺寸带驱动(Size with Driver)mmØ96*64Ø96*64Ø96*64Ø96*64
轴向最大负载(Max Axial Load)N250250250250
径向最大负载(Max Radial Load)N1000100010001000
噪音(Noise)dB＜65＜65＜65＜65
通信协议(Communication)/CANCANCANCAN
第二编码器(Second Encoder)/NONONONO
电机防水防尘等级(Motor Protection Grade)/IP54IP54IP54IP54
工作温度范围(Working Temperature)℃-20~+80-20~+80-20~+80-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit

14

141414
是否支持单独编码器(Separate Encoder)/NO
NONONO
是否支持定制抱闸(Custom Brake)/YES
YESYESYES
