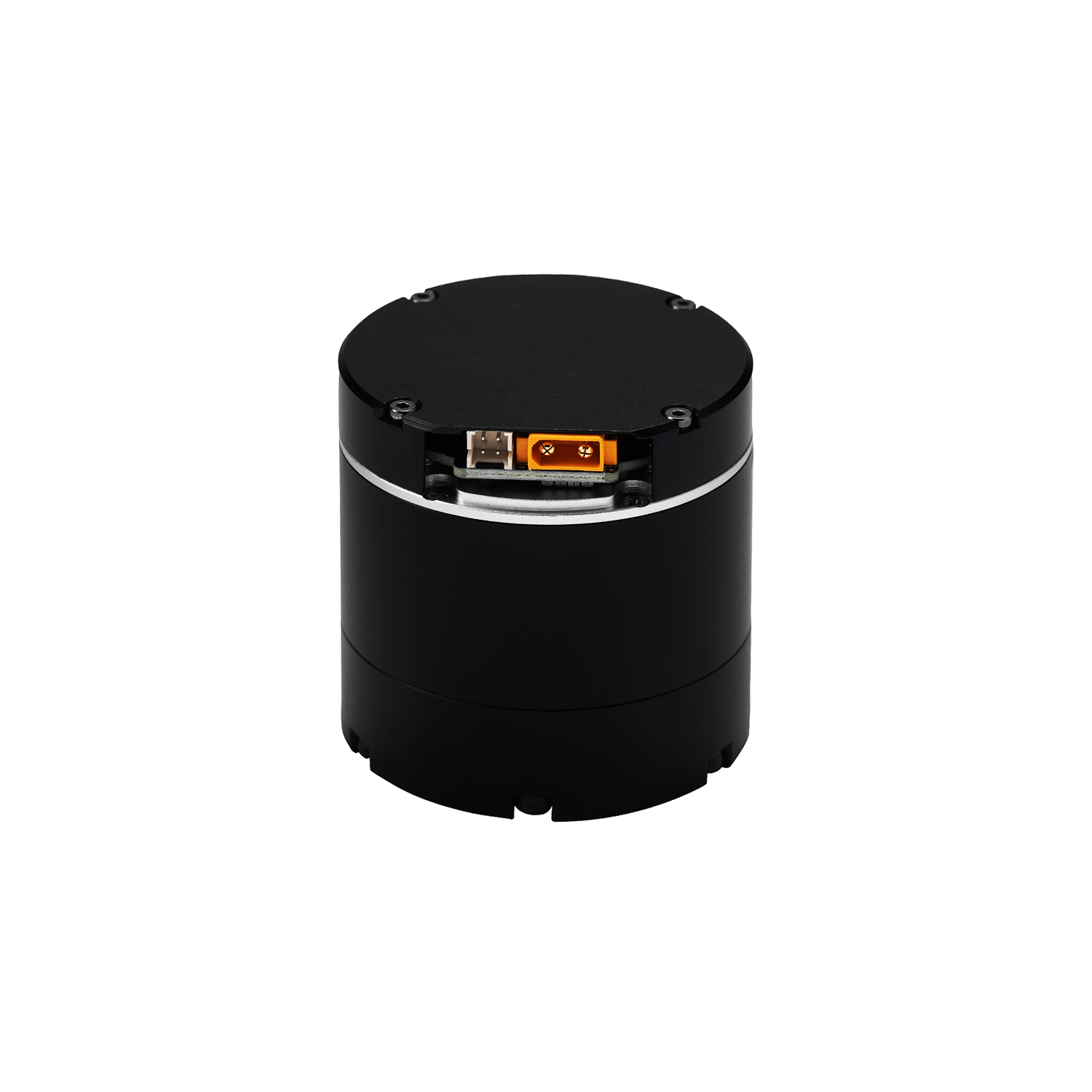

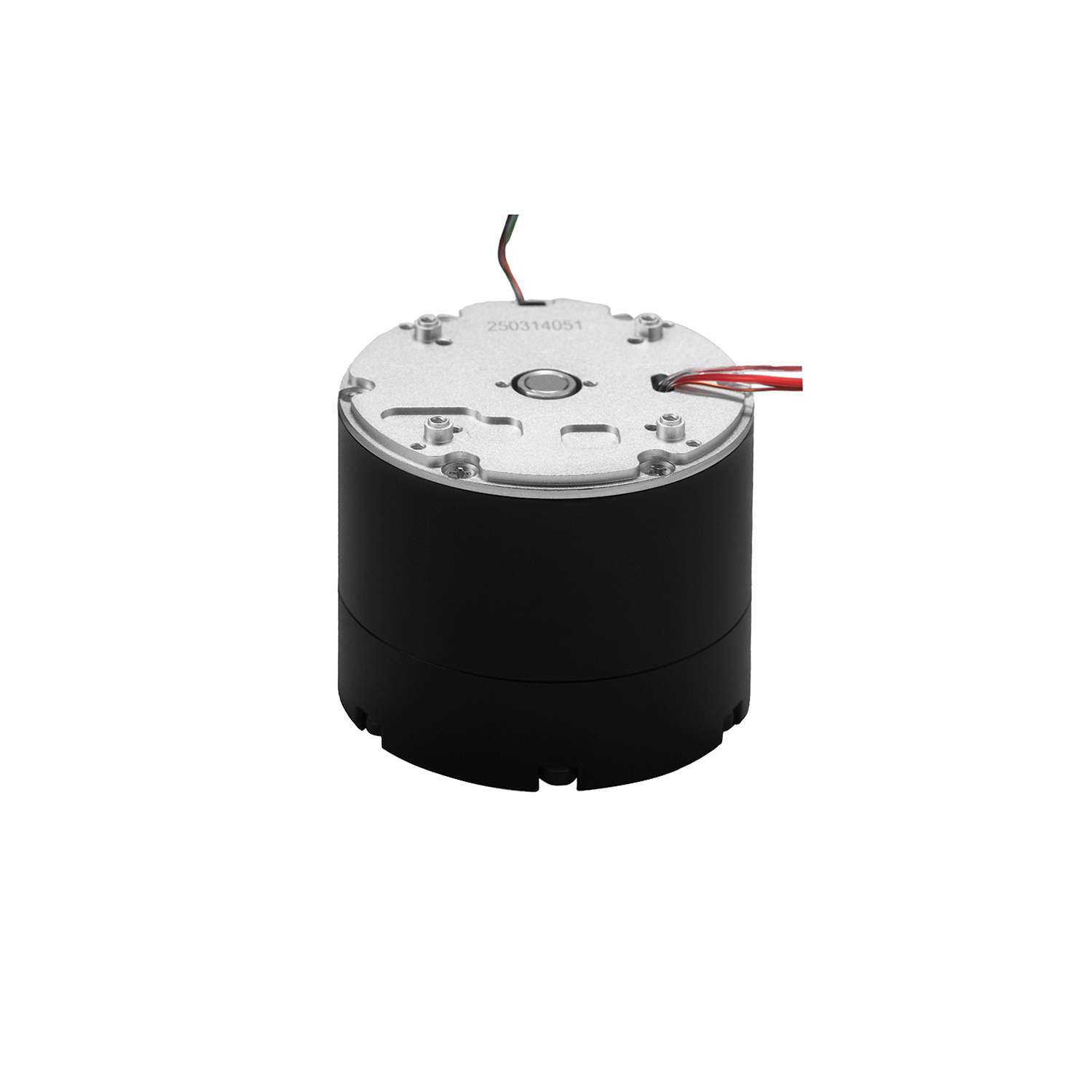

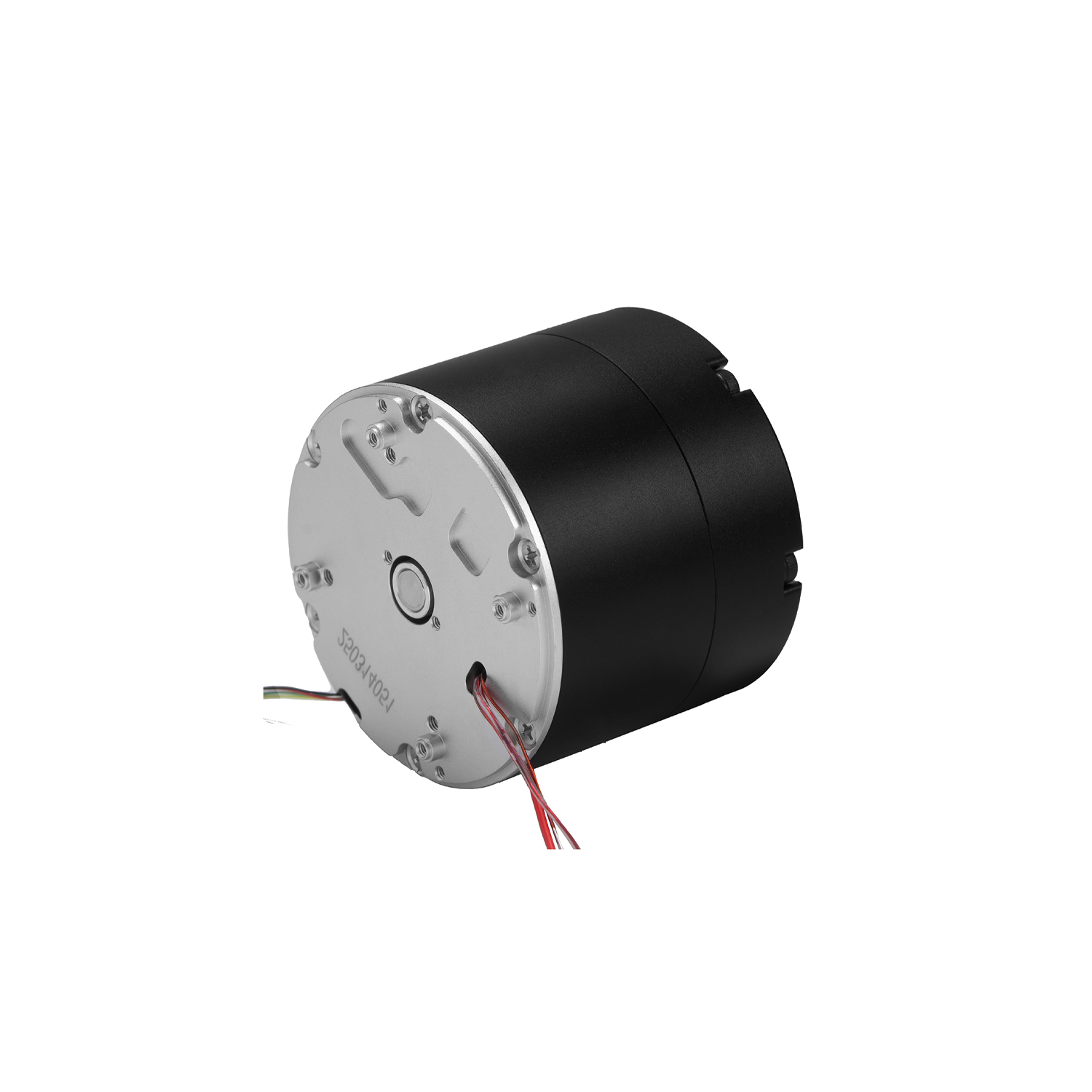

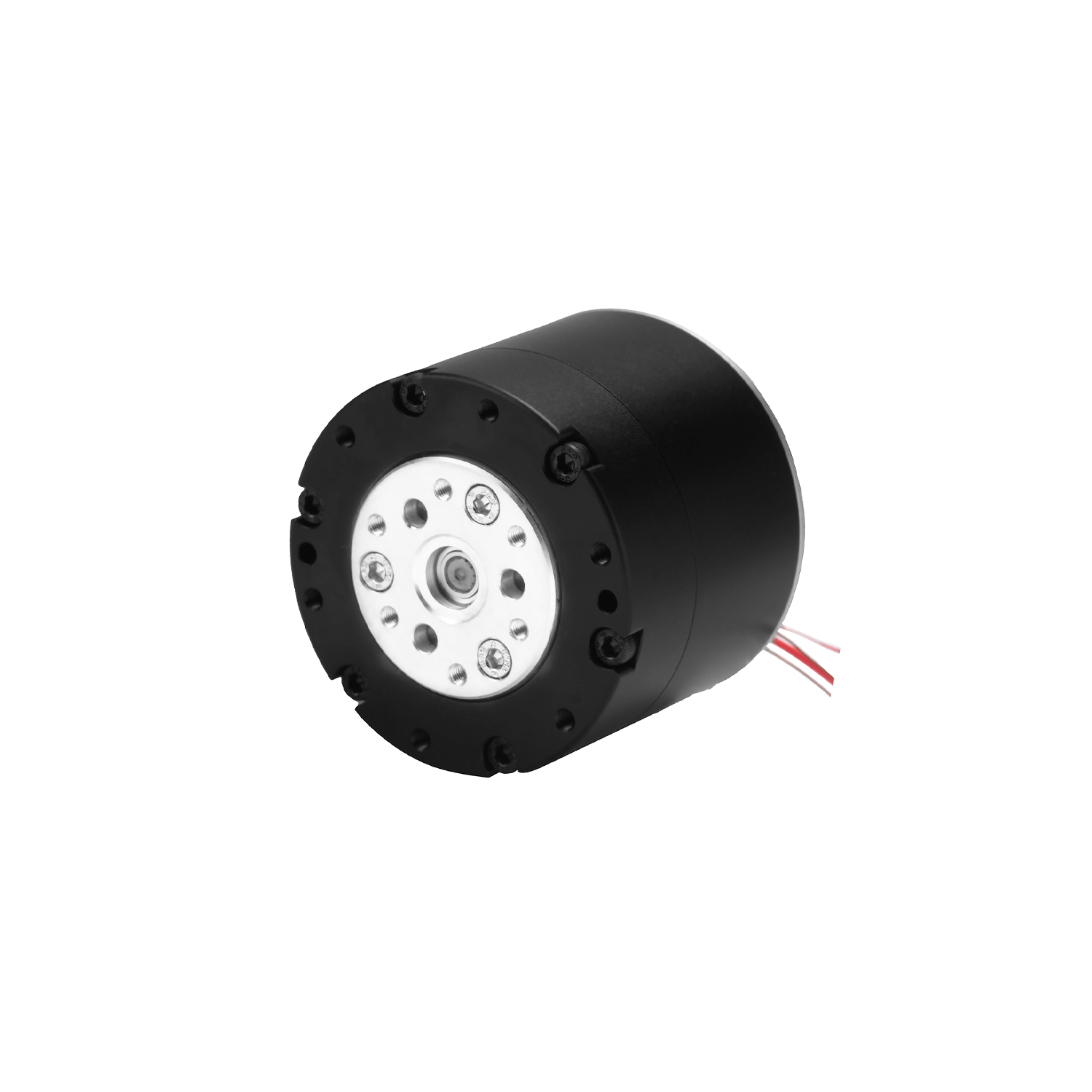

GIM4315-8

Model： GIM4315-8
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

GIM4315-8 without driver installation drawing

‍GIM4315-8 installation drawing

GIM4315-8 without driver 3D model

‍GIM4315-8 3D model‍

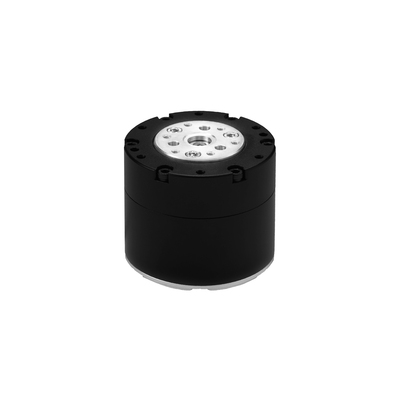

GIM4315-8
绕组方式(Winding Type)/▲
驱动板型号(Driver Model)
/GDZ468
额定电压(Nominal Voltage)V24
电压范围(Voltage Range)V12~40
功率(Power)
W
45
额定扭矩(Nominal Torque)N.M1.6
堵转扭矩(Stall Torque)N.M14.25
减速后额定转速(Nominal Speed after Reduce)RPM403
减速后最大转速(Max Speed after Reduce)RPM405
额定电流(Nominal Current)A1.86
堵转电流(Stall Current)A19.5
相间电阻(Phase to Phase Resistance)Ω1.5
相间电感(Phase to Phase Inductance)mH0.43
转速常数(Speed Constant)rpm/v16.88
扭矩常数(Torque Constant)N.M/A0.96
极对数(Number of Pole Pairs)Pairs14
减速比(Gear Rate)/8:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/STEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g343.3
电机重量带驱动(Motor Weight with Driver)g371.5
电机尺寸不带驱动(Size without Driver)mmØ57*47
电机尺寸带驱动(Size with Driver)mmØ57*58
轴向最大负载(Max Axial Load)N125
径向最大负载(Max Radial Load)N500
噪音(Noise)dB＜60
通信协议(Communication)/CAN & RS485
第二编码器(Second Encoder)/YES
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit14
是否支持单独编码器(Separate Encoder)/NO
是否支持定制抱闸(Custom Brake)/YES
