Product Detail

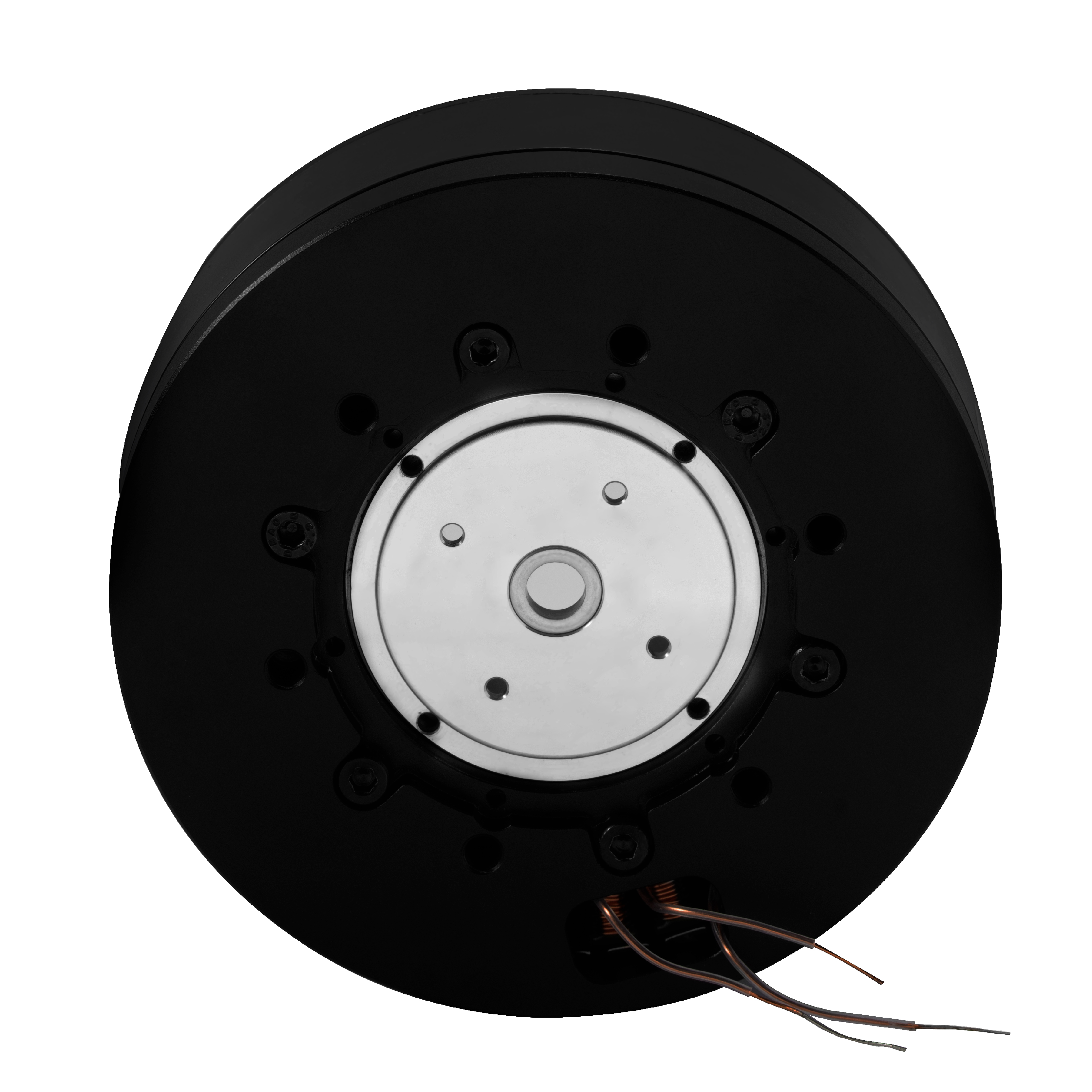

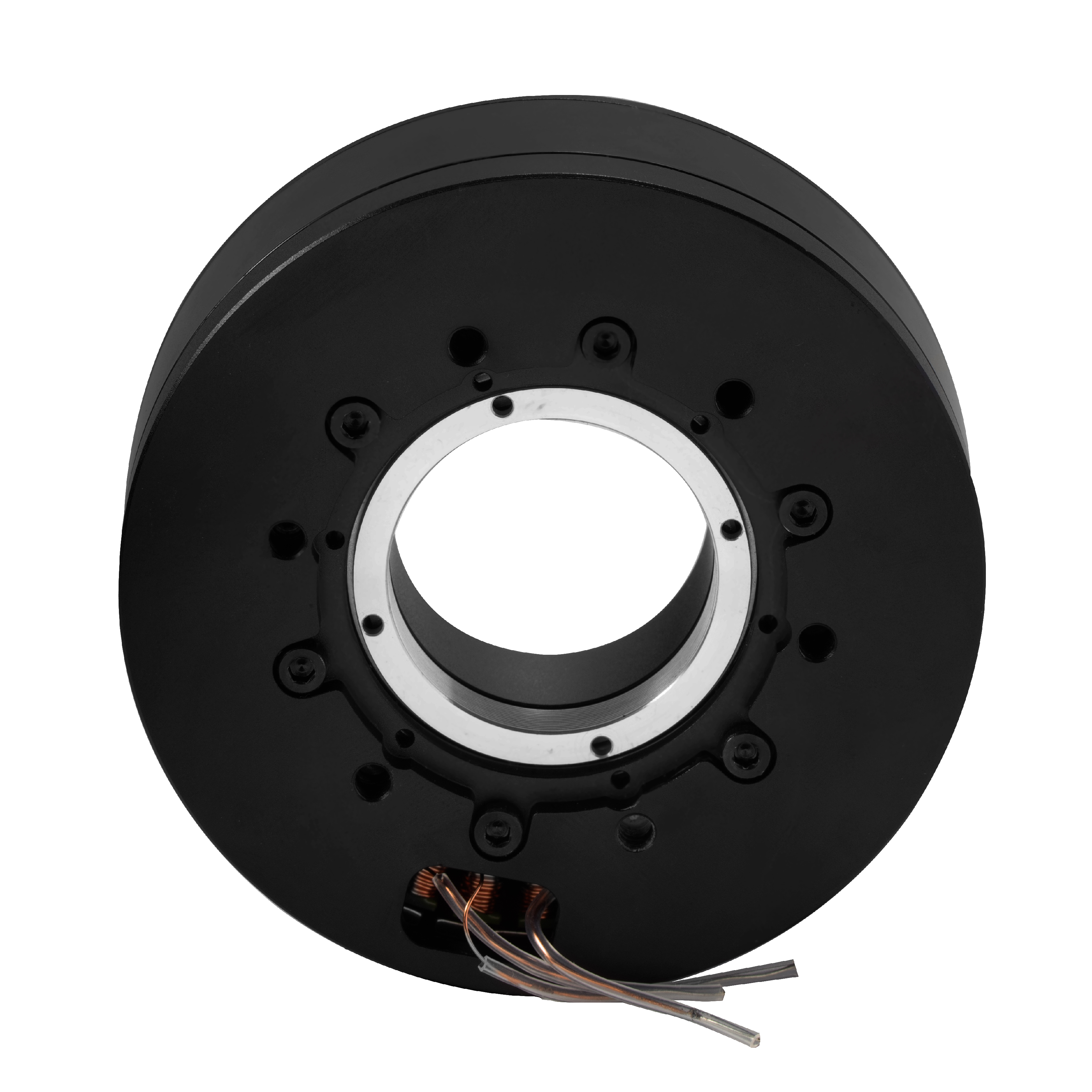

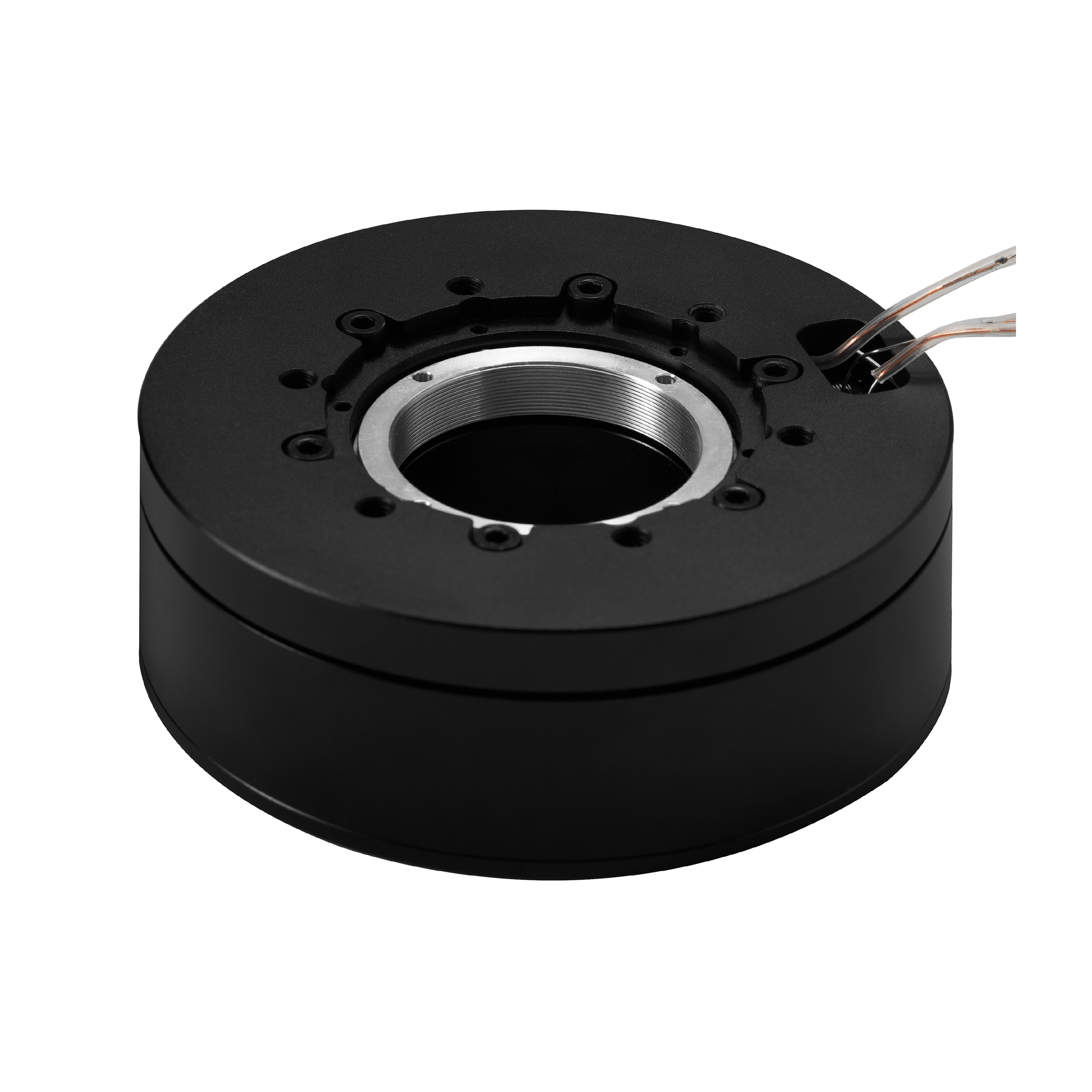

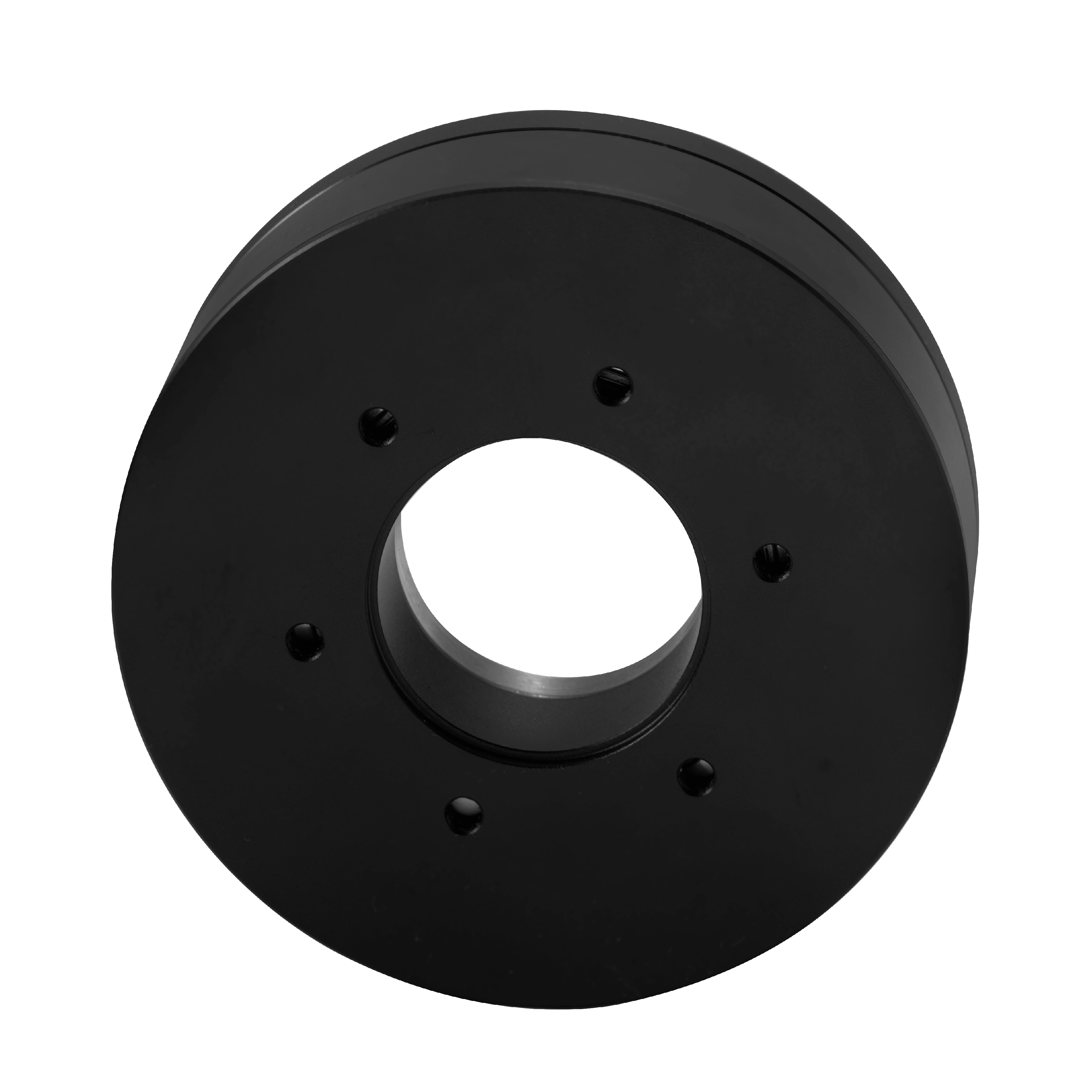

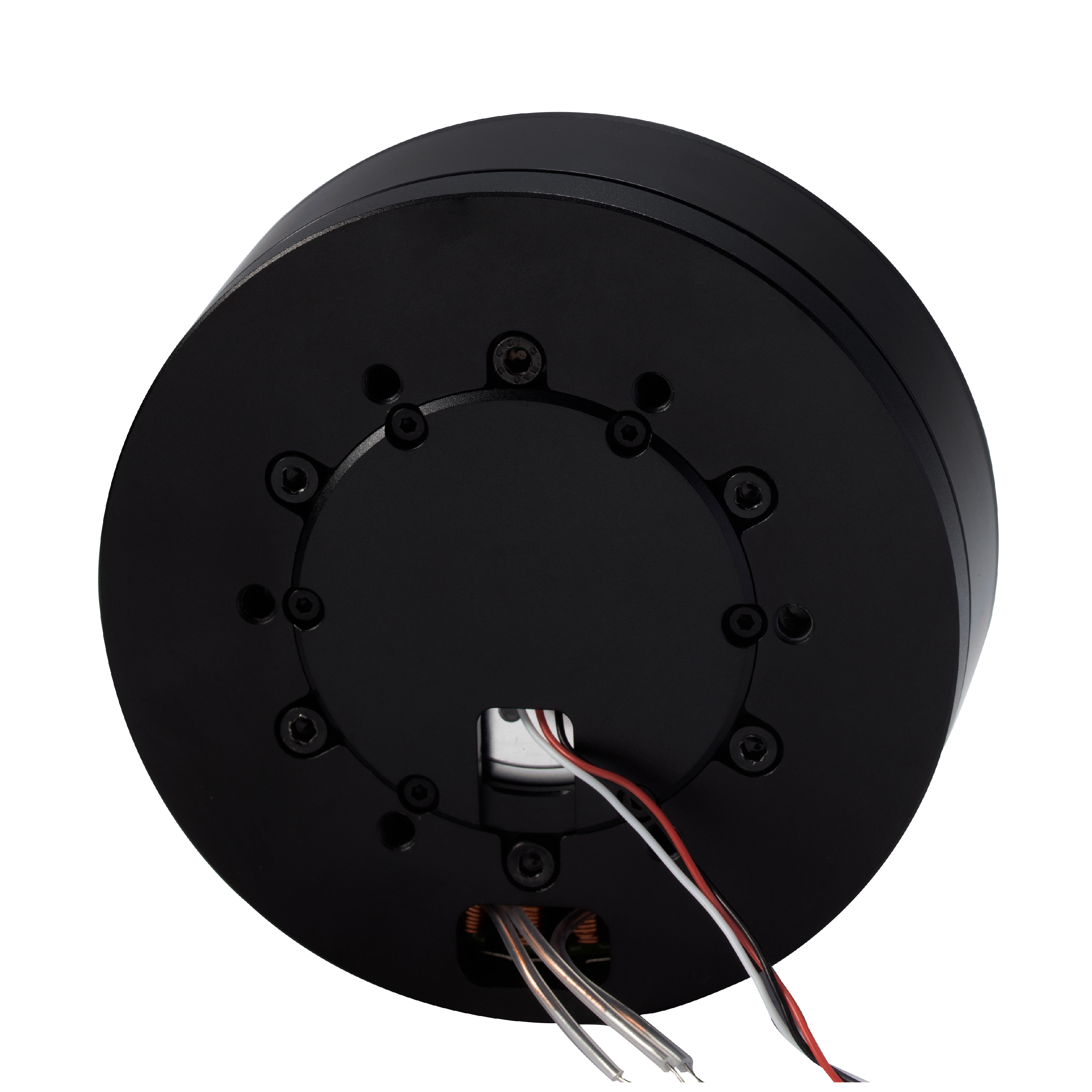

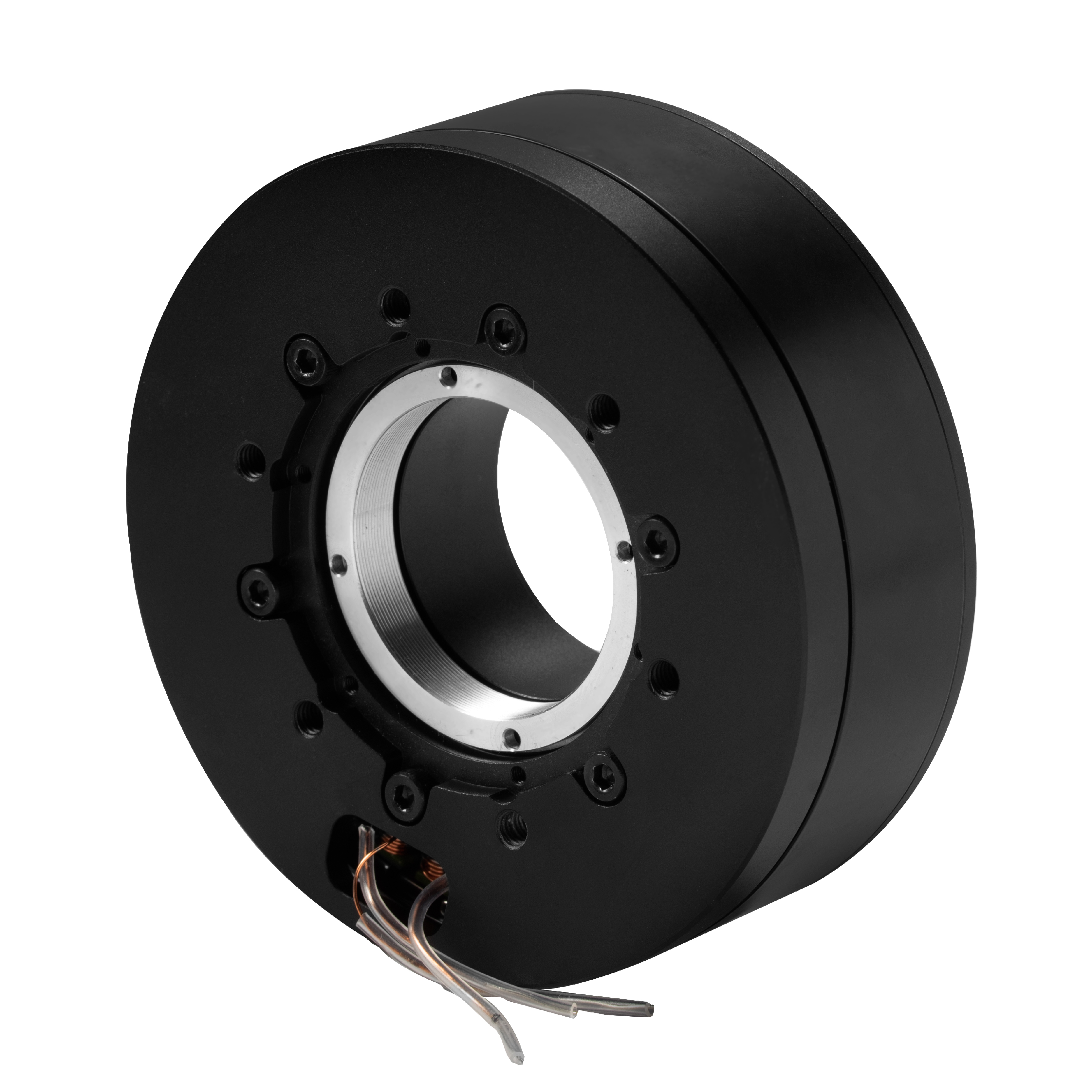

GB8115
Model
:
GB8115
Brand
:
SteadyWin
产品详情
参数/型号
单位
GB8115-1
GB8115-4
额定电压(Nominal voltage)
V
24
36
额定电流(Nominal current)
A
5.8
2.1
额定扭矩(Nominal torque)
N.M
1.1
1.26
额定转速(Nominal speed)
rpm
954
372
最大转速(Max speed)
rpm
1146
534
堵转扭矩(Stall torque)
N.M
5.17
4.11
堵转电流(Stall current)
A
33.1
6.6
相电阻(Phase resistance)
Ω
0.33
3.89
相电感(Phase inductance)
Mh
0.23
3.14
转速常数(Speed constant)
rpm/v
47.8
14.8
扭矩常数(Torque constant)
N.M/A
0.19
0.67
转子惯量(Rotor inertia)
gcm^2
2574
2574
极对数(Number of pole pairs)
Pairs
21
21
工作温度范围(Working temperature)
℃
-20~80
-20~80
编码器类型(Encoder type)
/
AS5048A/AS5600
AS5048A/AS5600
