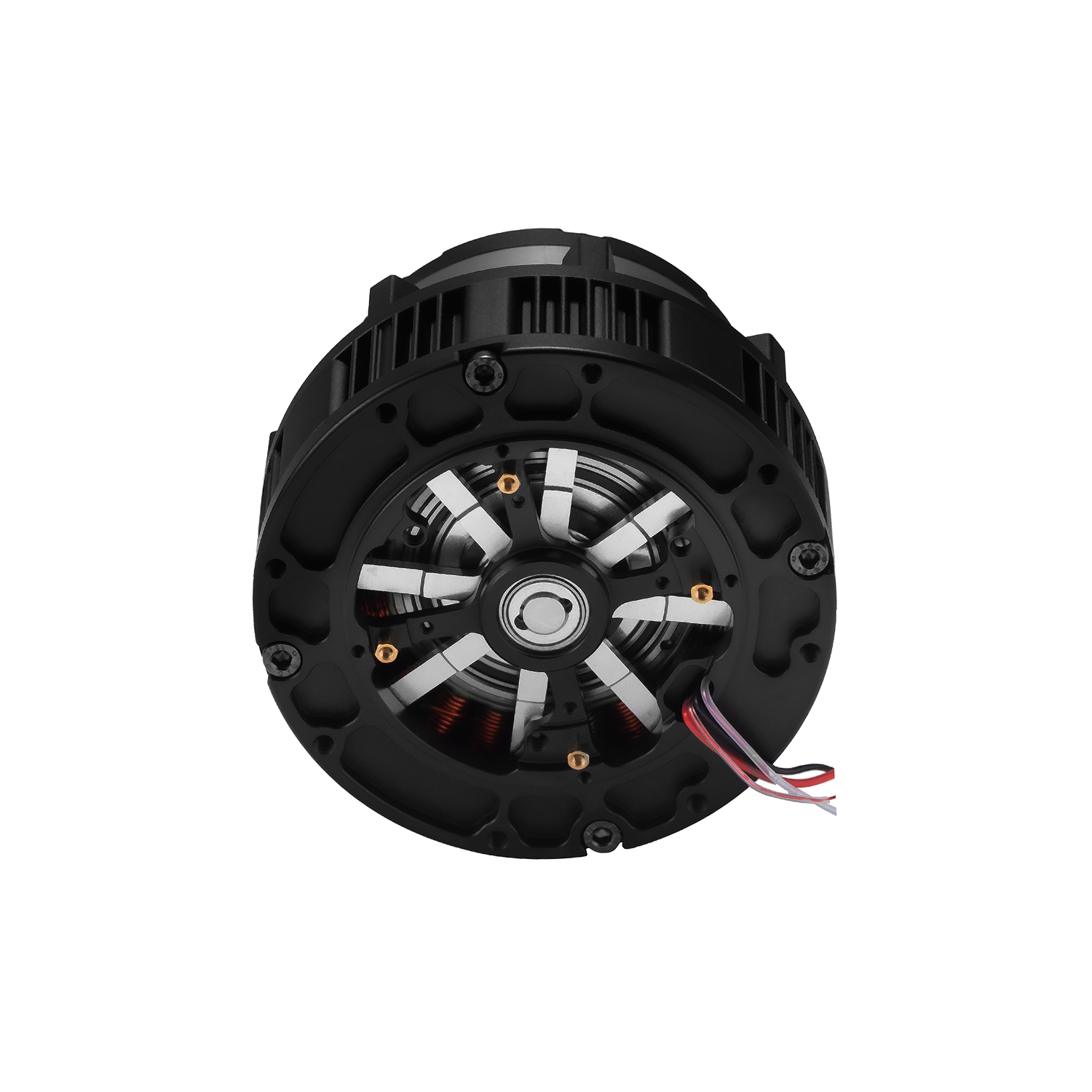

GIM6010-48

Model： GIM6010-48
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

‍GIM6010-48 installation drawing‍

‍GIM6010-48 with brake installation drawing

GIM6010-48 3D model‍

GIM6010-48 with brake 3D model‍

‍

GIM6010-48
绕组方式(Winding Type)/YY
驱动板型号(Driver Model)/GDS68GDZ468
额定电压(Nominal Voltage)V2424
电压范围(Voltage Range)V12~5612~36
功率(Power)W252156
额定扭矩(Nominal Torque)N.M3027
堵转扭矩(Stall Torque)N.M6655.9
减速后额定转速(Nominal Speed after Reduce)RPM2038
减速后最大转速(Max Speed after Reduce)RPM7049
额定电流(Nominal Current)A10.56.5
堵转电流(Stall Current)A23.413.5
相间电阻(Phase to Phase Resistance)Ω0.420.42
相间电感(Phase to Phase Inductance)mH0.340.34
转速常数(Speed Constant)rpm/v2.922.04
扭矩常数(Torque Constant)N.M/A2.824.53
极对数(Number of Pole Pairs)Pairs1414
减速比(Gear Rate)/48:148:1
减速器类型(Gear Type)/PlanetaryPlanetary
减速器齿轮材料(Reducer Gear Material)/STEELSTEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin1515
电机重量不带驱动(Motor Weight without Driver)g758.9758.9
电机重量带驱动(Motor Weight with Driver)g776.9776.9
电机尺寸不带驱动(Size without Driver)mmØ80*56.5Ø80*56.5
电机尺寸带驱动(Size with Driver)mmØ80*67.5Ø80*67.5
轴向最大负载(Max Axial Load)N225225
径向最大负载(Max Radial Load)N900900
噪音(Noise)dB＜60＜60
通信协议(Communication)/CANCAN & RS485
第二编码器(Second Encoder)/NOYES
电机防水防尘等级(Motor Protection Grade)/IP54IP54
工作温度范围(Working Temperature)℃-20~+80-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit

16

14

是否支持单独编码器(Separate Encoder)/NO
NO
是否支持定制抱闸(Custom Brake)/YESYES
