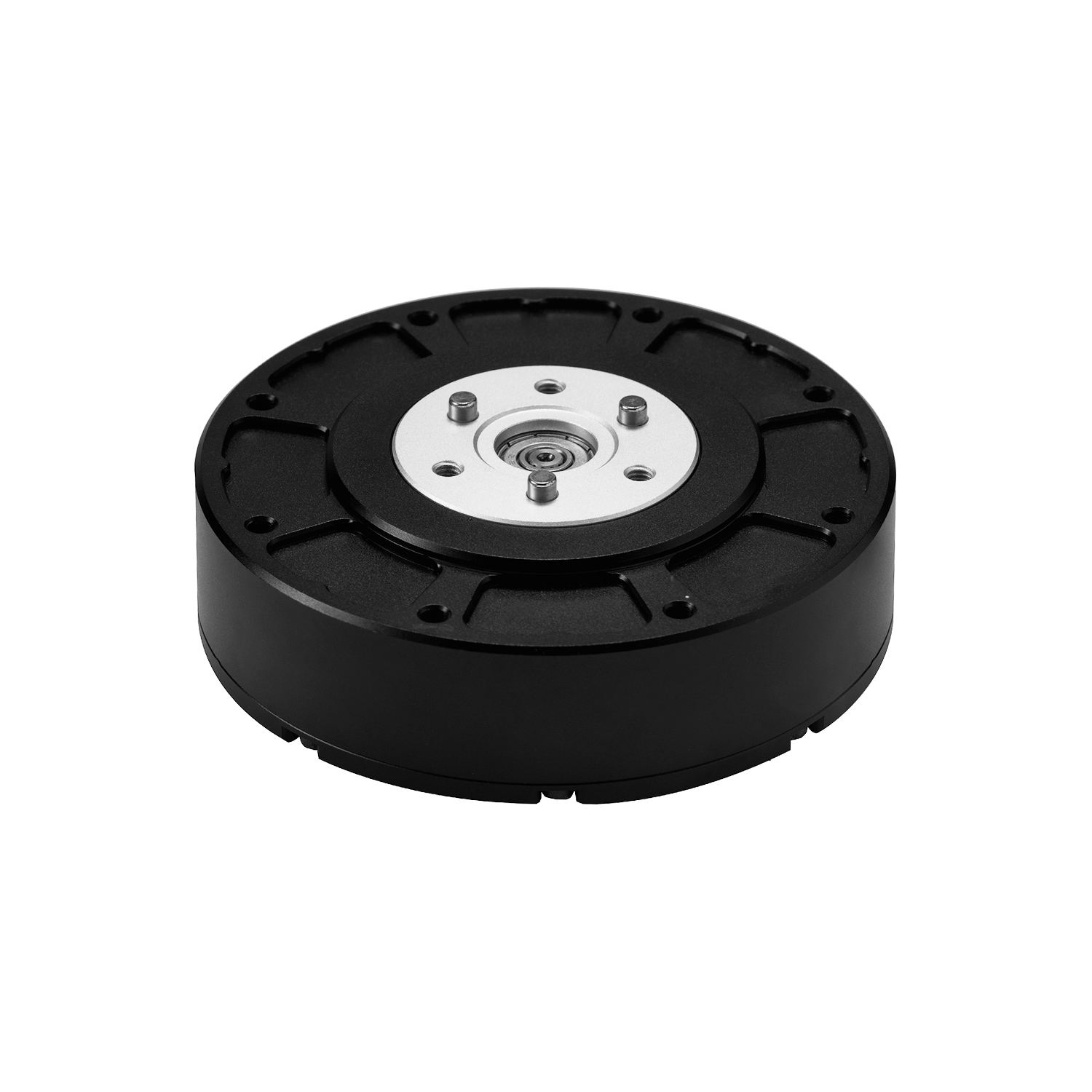

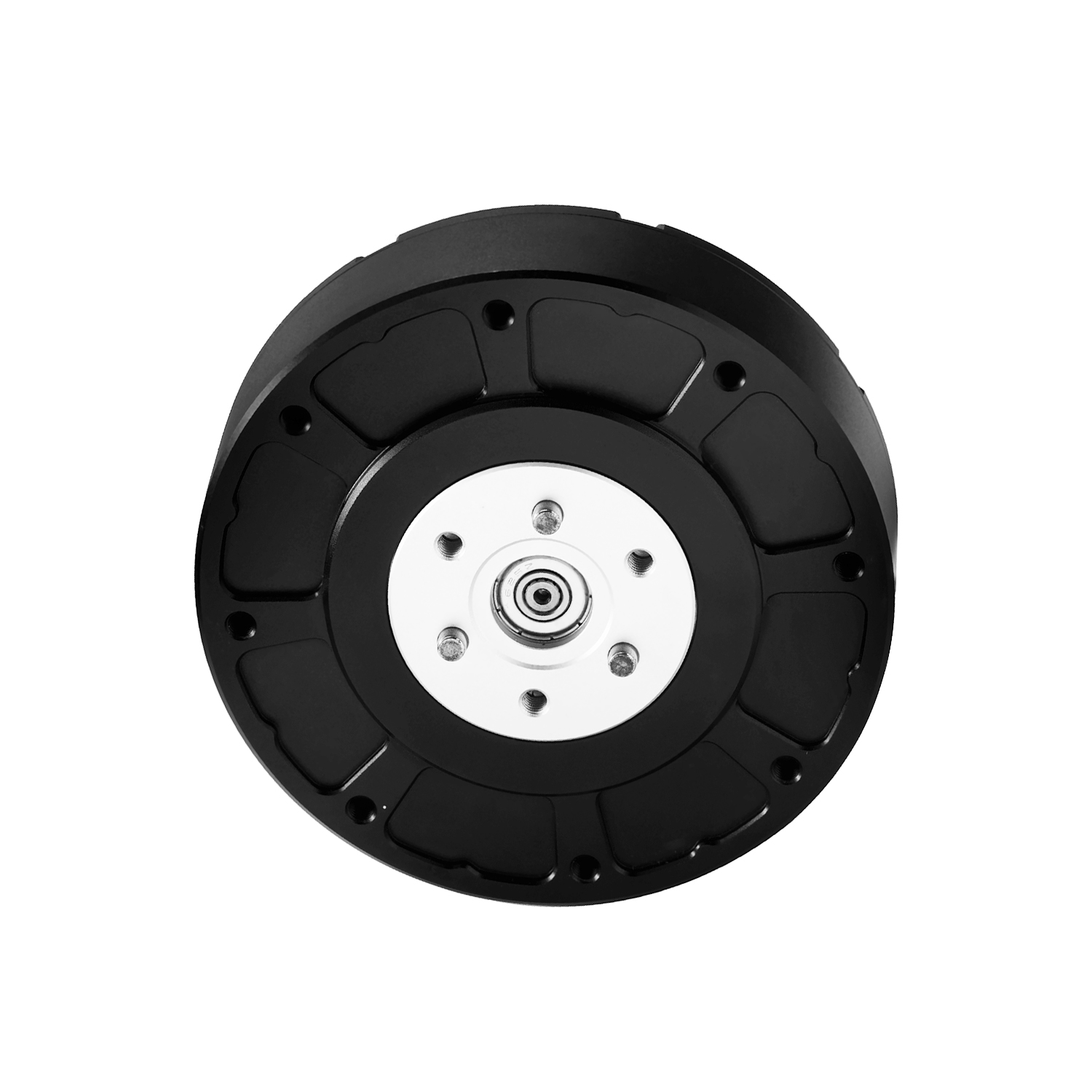

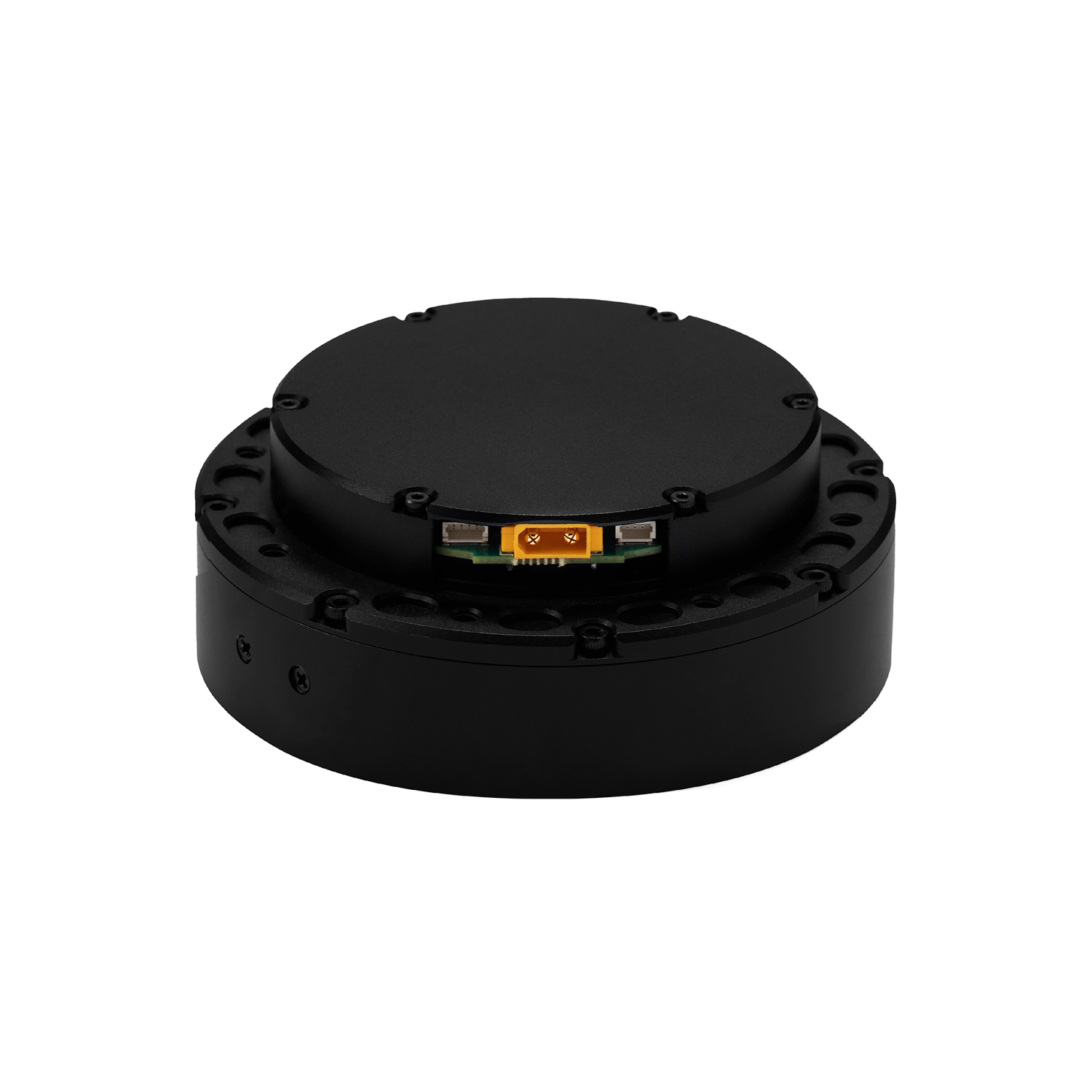

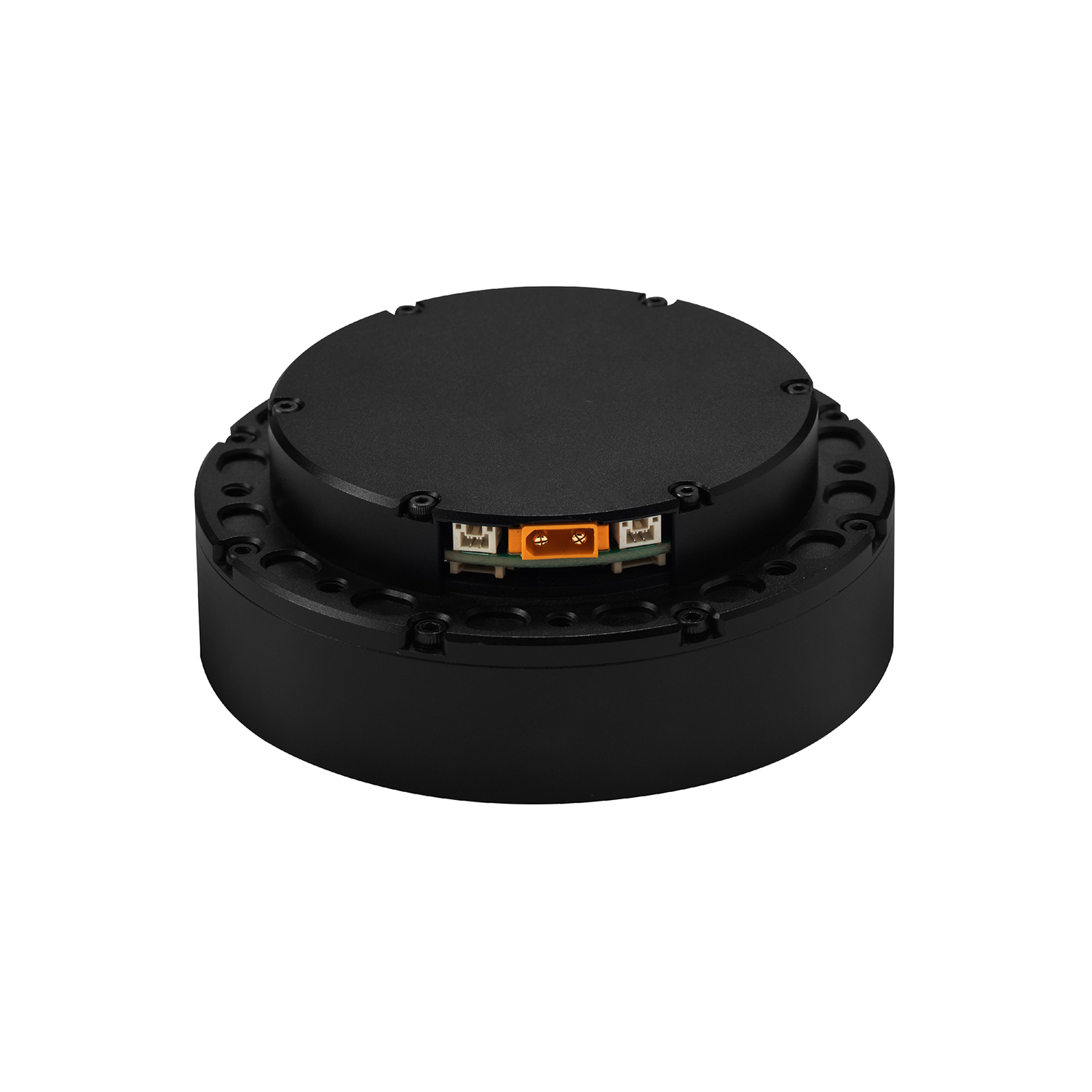

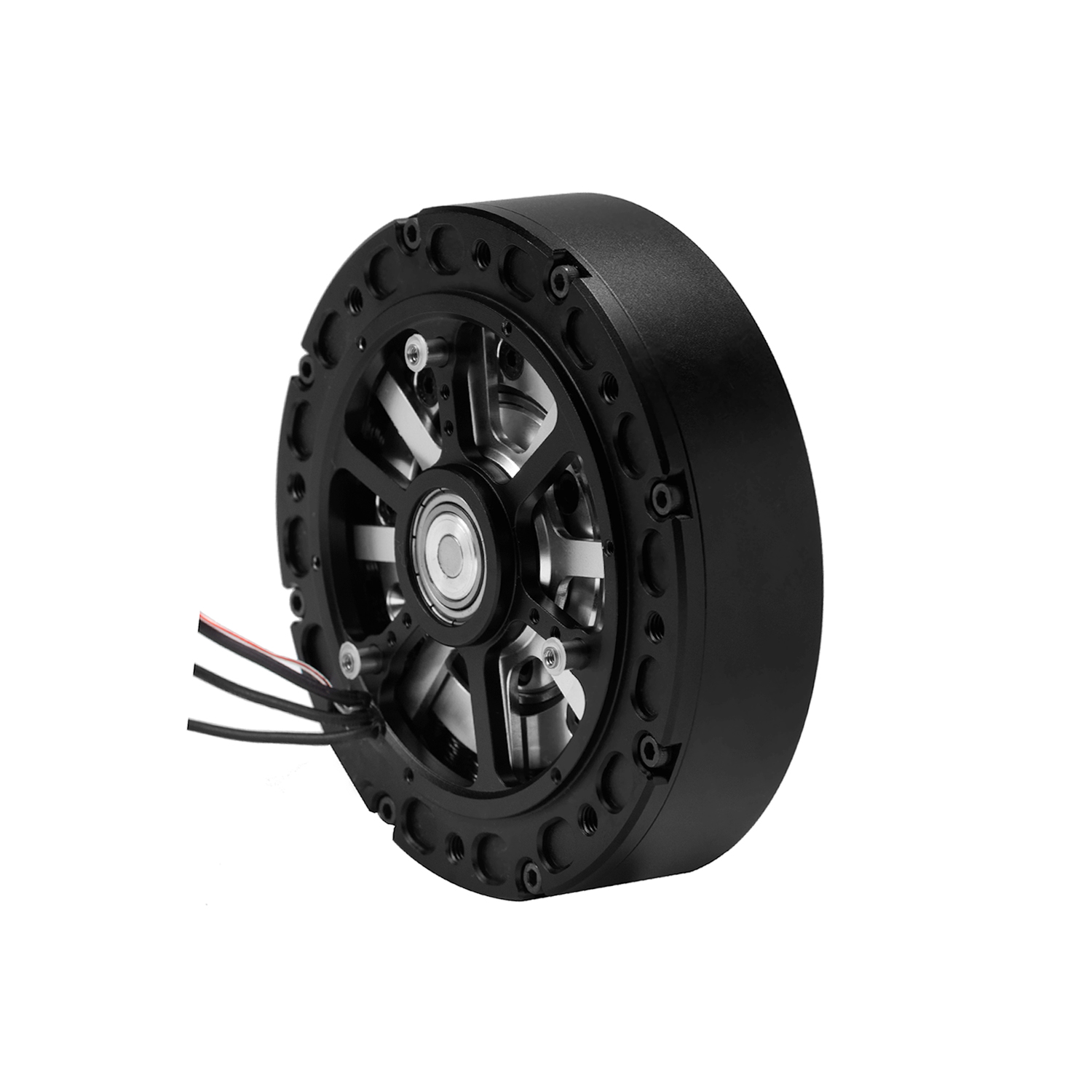

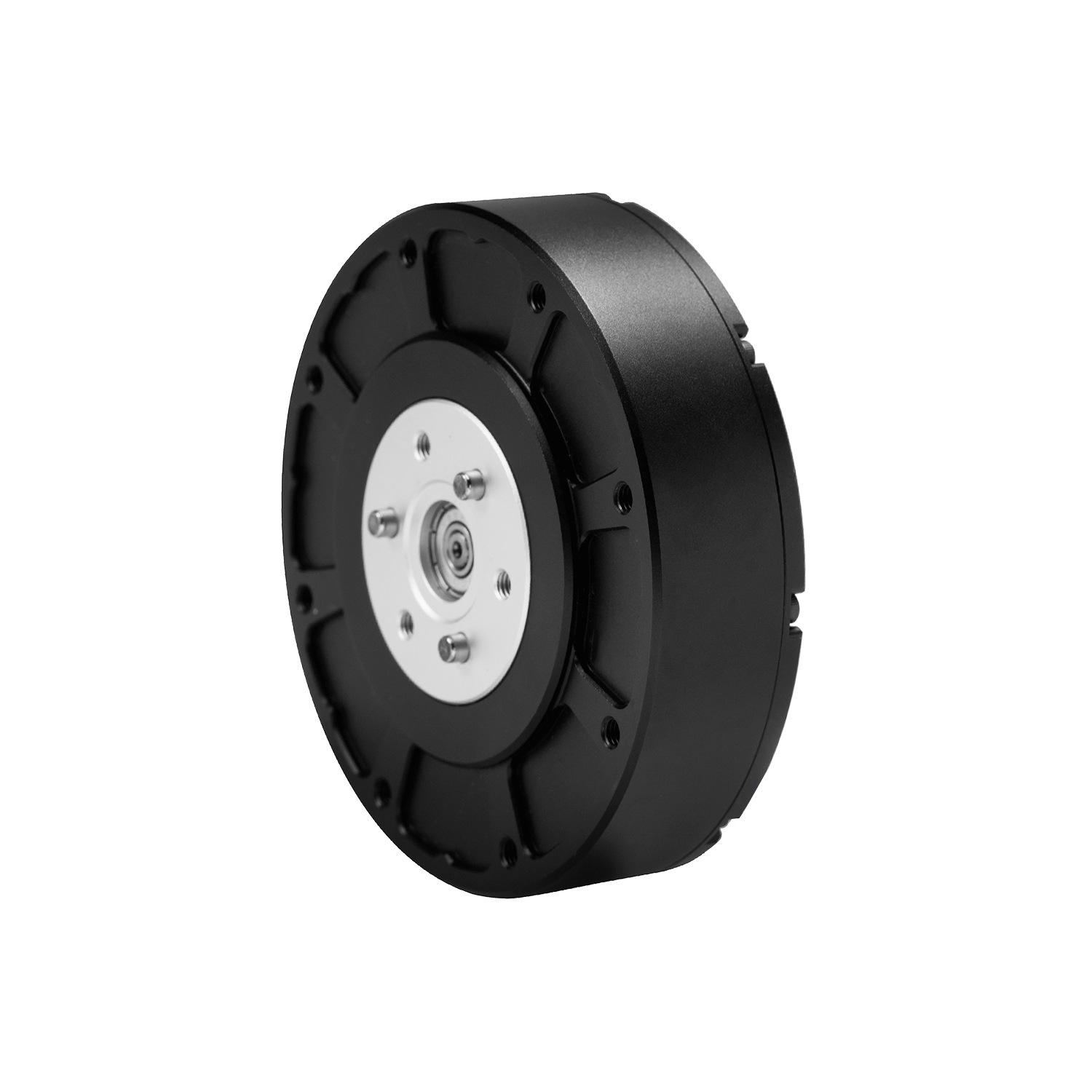

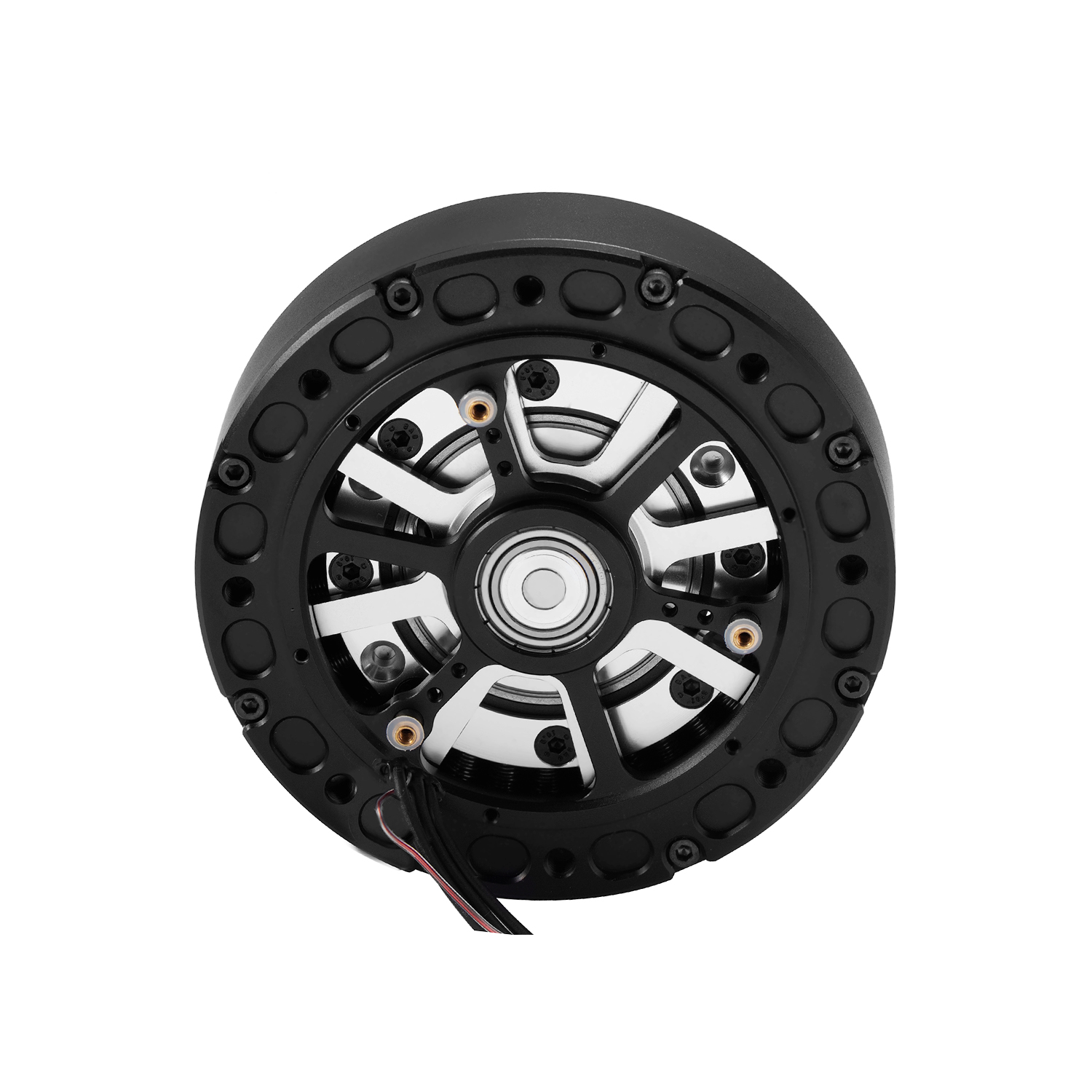

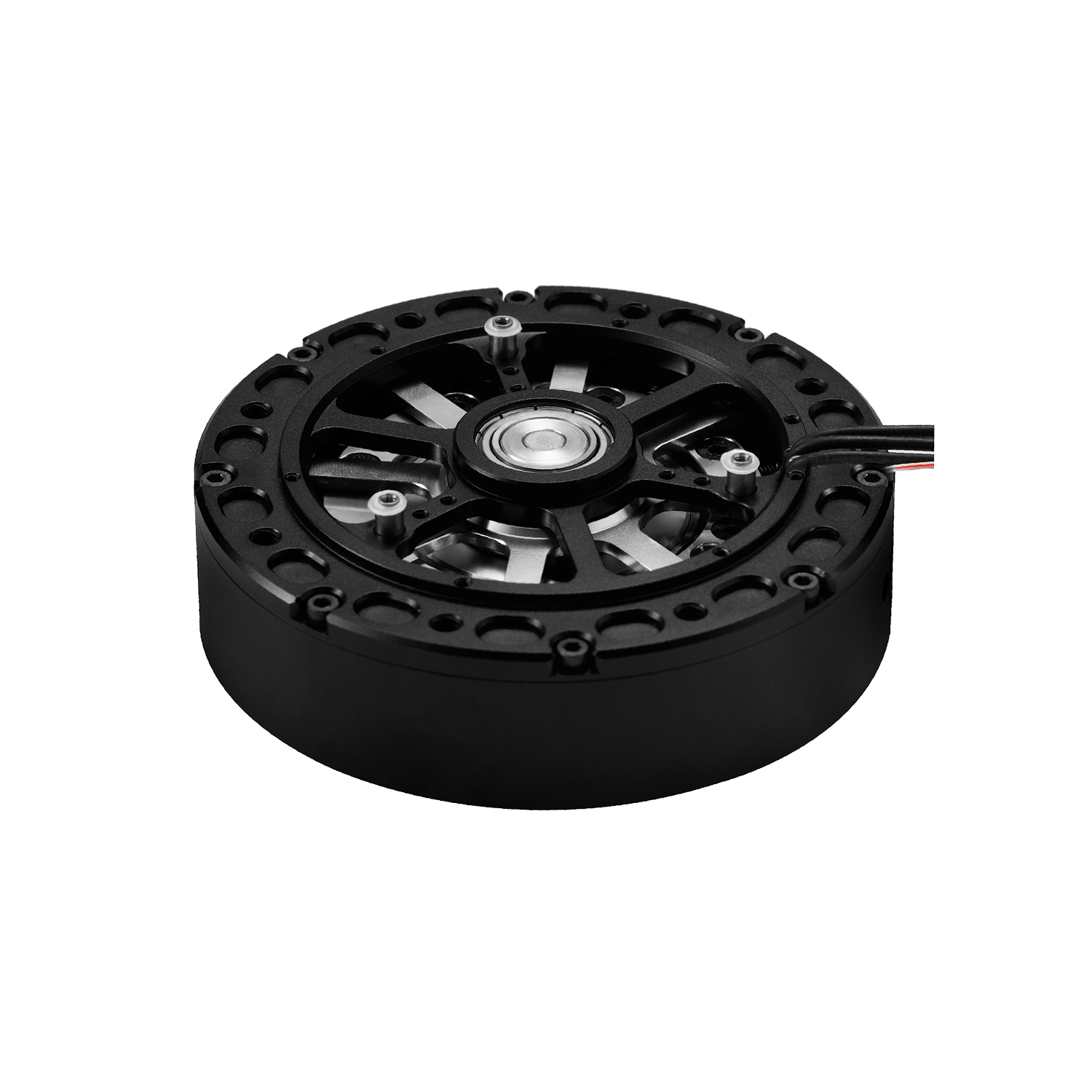

GIM8108-9

Model： GIM8108-9
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

‍GIM8108-9 installation drawing

GIM8108-9 3D model


GIM8108-9
绕组方式(Winding Type)
/Y
驱动板型号(Driver Model)
/GDS810
额定电压(Nominal Voltage)V48
电压范围(Voltage Range)V12~48
功率(Power)
W
192
额定扭矩(Nominal Torque)N.M8.19
堵转扭矩(Stall Torque)N.M27.38
减速后额定转速(Nominal Speed after Reduce)RPM207
减速后最大转速(Max Speed after Reduce)RPM242
额定电流(Nominal Current)A4
堵转电流(Stall Current)A19.8
相间电阻(Phase to Phase Resistance)Ω0.73
相间电感(Phase to Phase Inductance)mH0.49
转速常数(Speed Constant)rpm/v5.04
扭矩常数(Torque Constant)N.M/A1.83
极对数(Number of Pole Pairs)Pairs21
减速比(Gear Rate)/9:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/STEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g525
电机重量带驱动(Motor Weight with Driver)g567
电机尺寸不带驱动(Size without Driver)mmØ96*34
电机尺寸带驱动(Size with Driver)mmØ96*41.5
轴向最大负载(Max Axial Load)N225
径向最大负载(Max Radial Load)N900
噪音(Noise)dB＜60
通信协议(Communication)/CAN
第二编码器(Second Encoder)/YES
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit14
是否支持单独编码器(Separate Encoder)/NO
是否支持定制抱闸(Custom Brake)/YES
