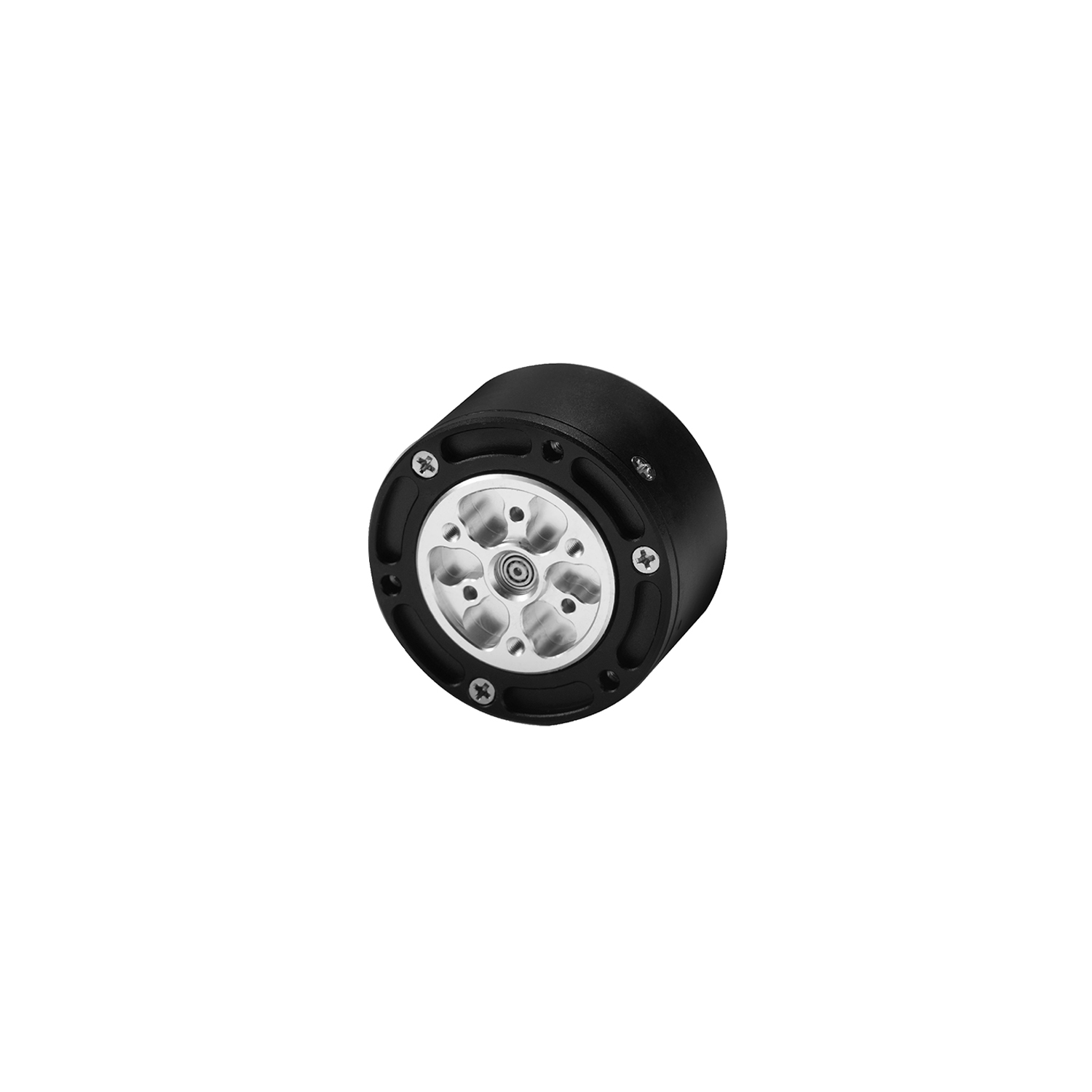

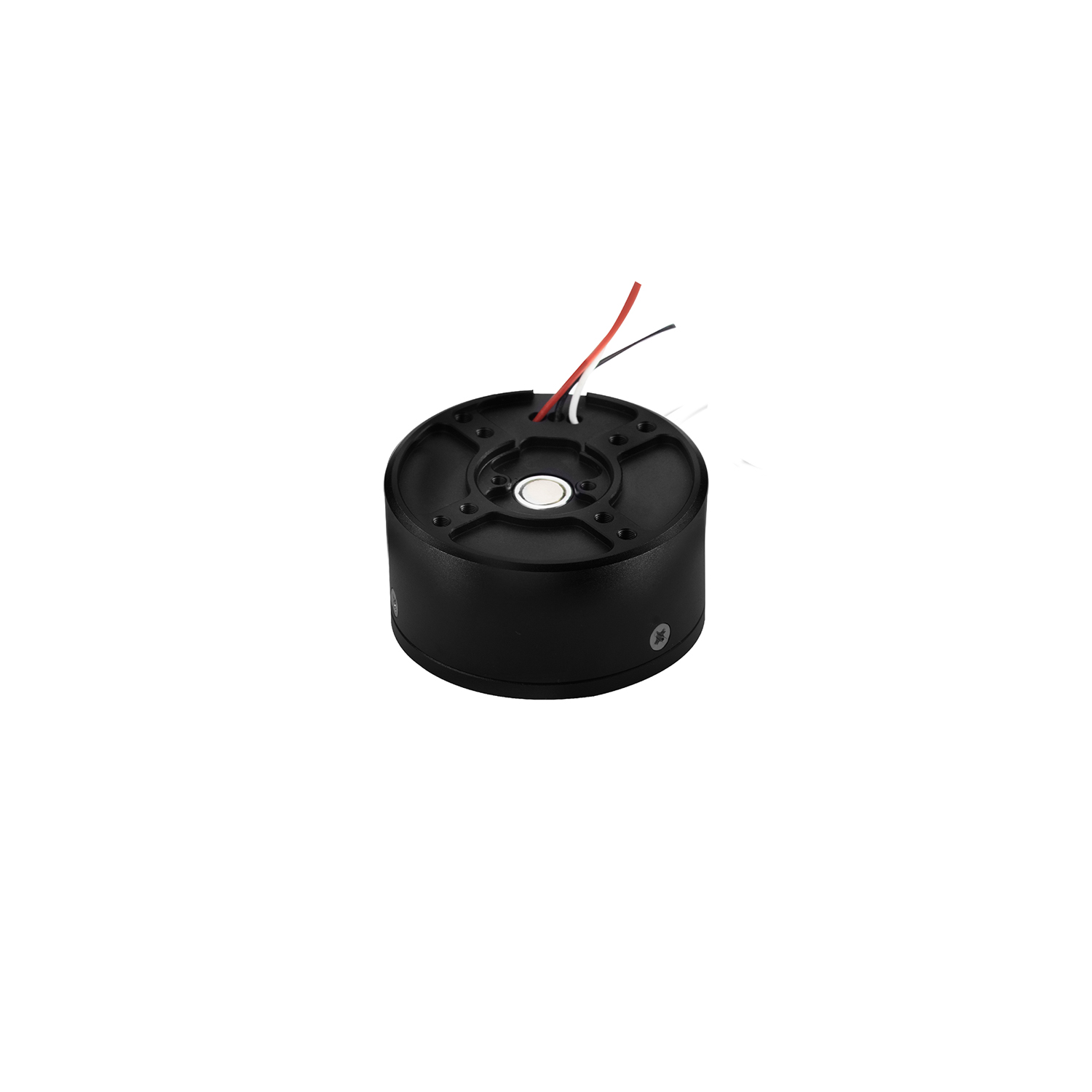

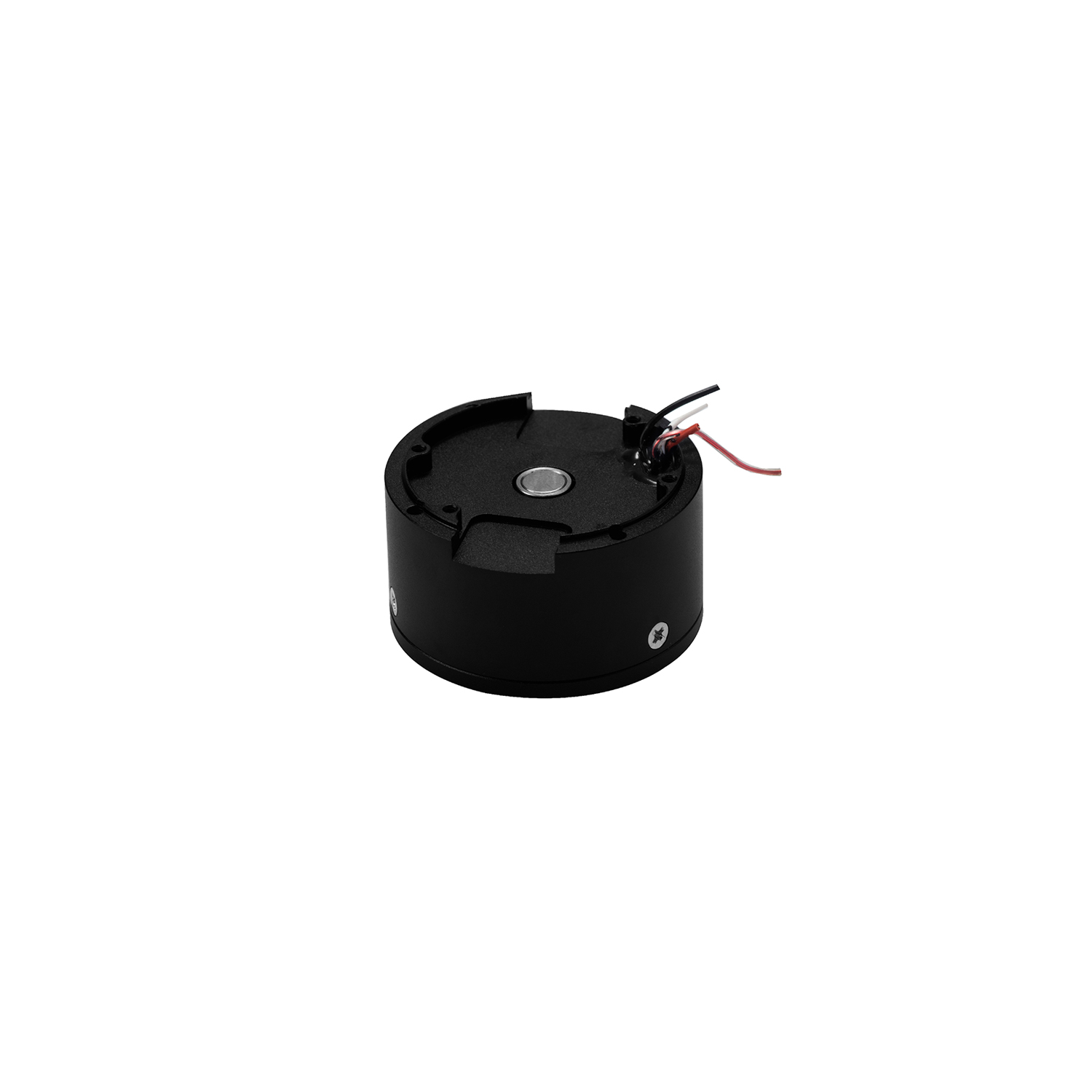

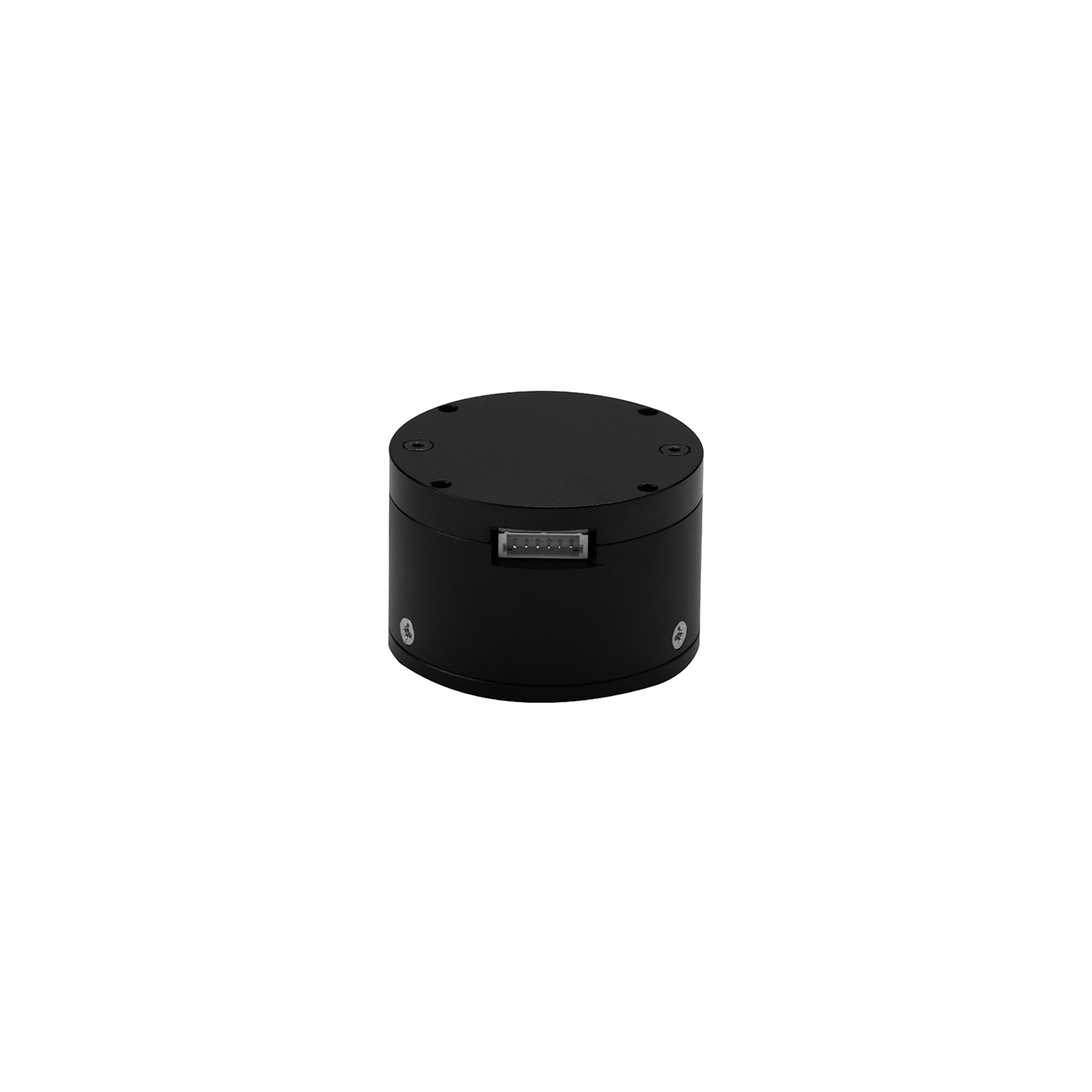

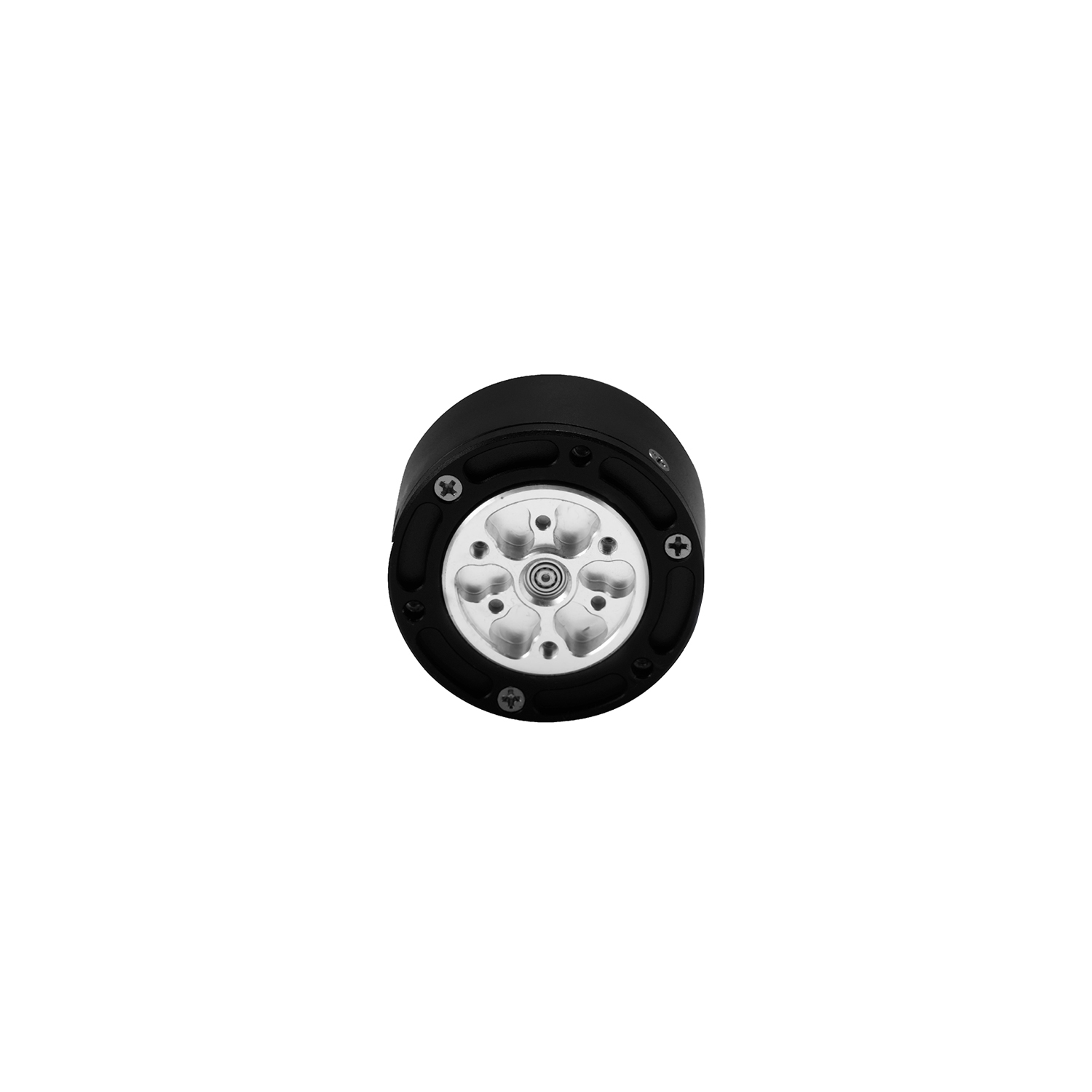

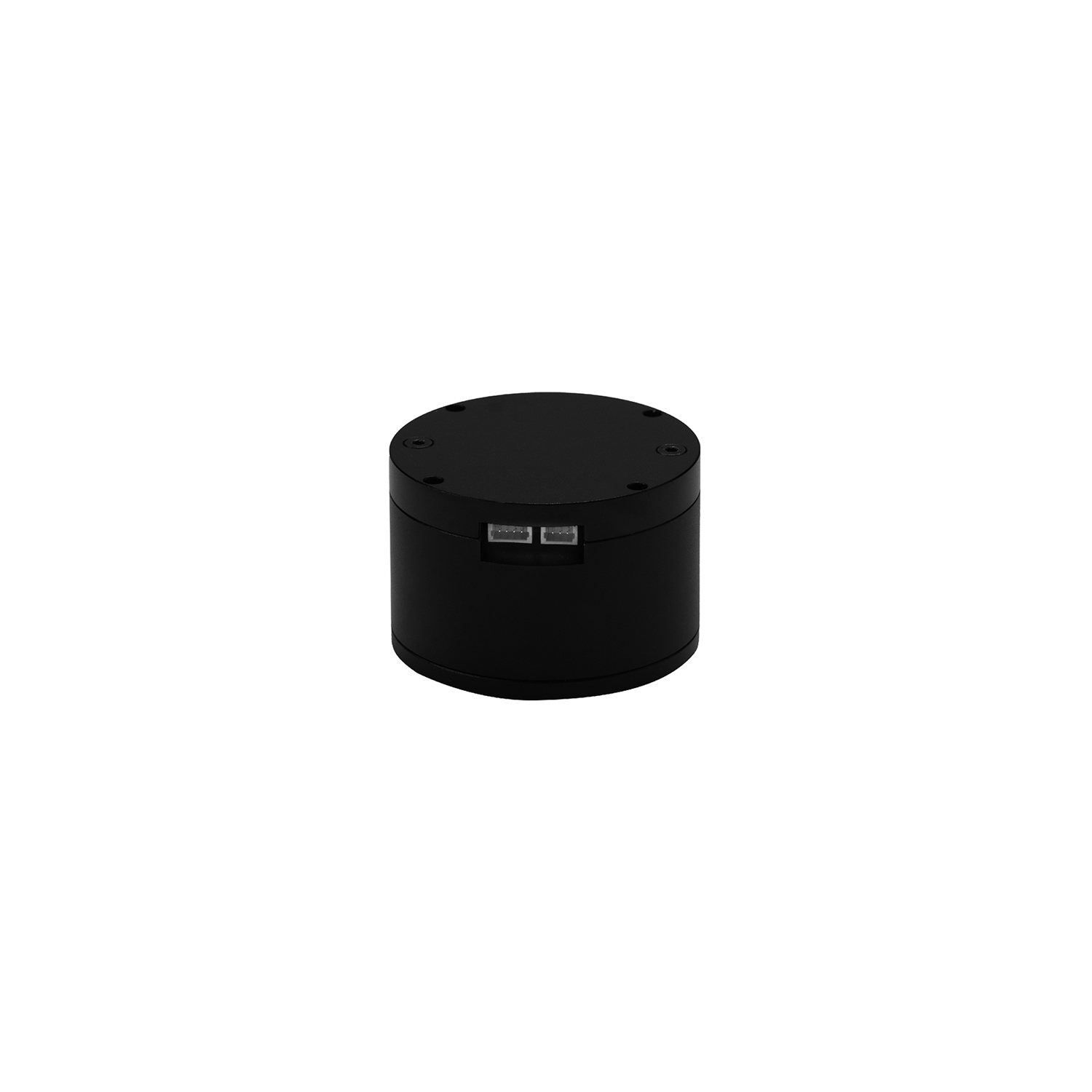

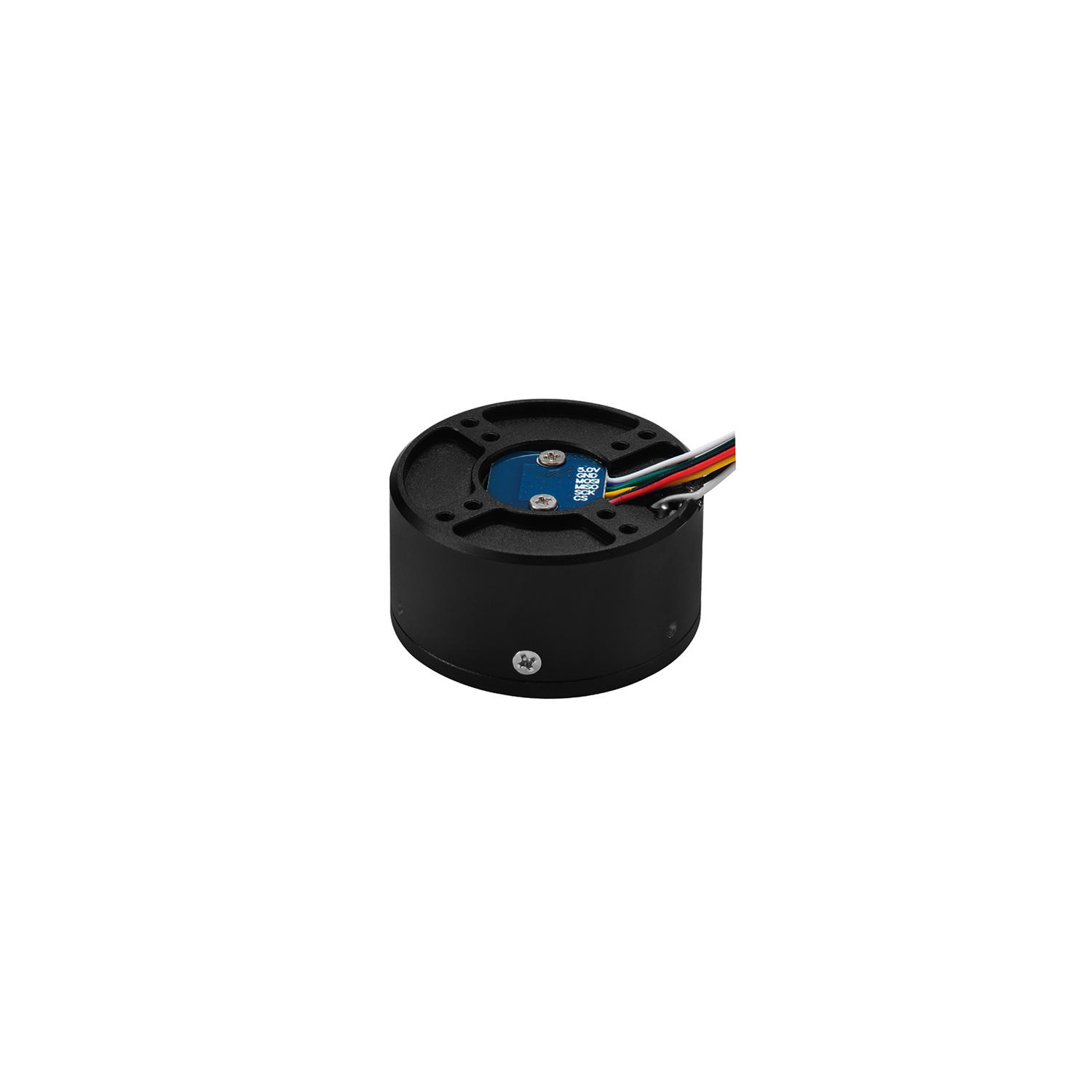

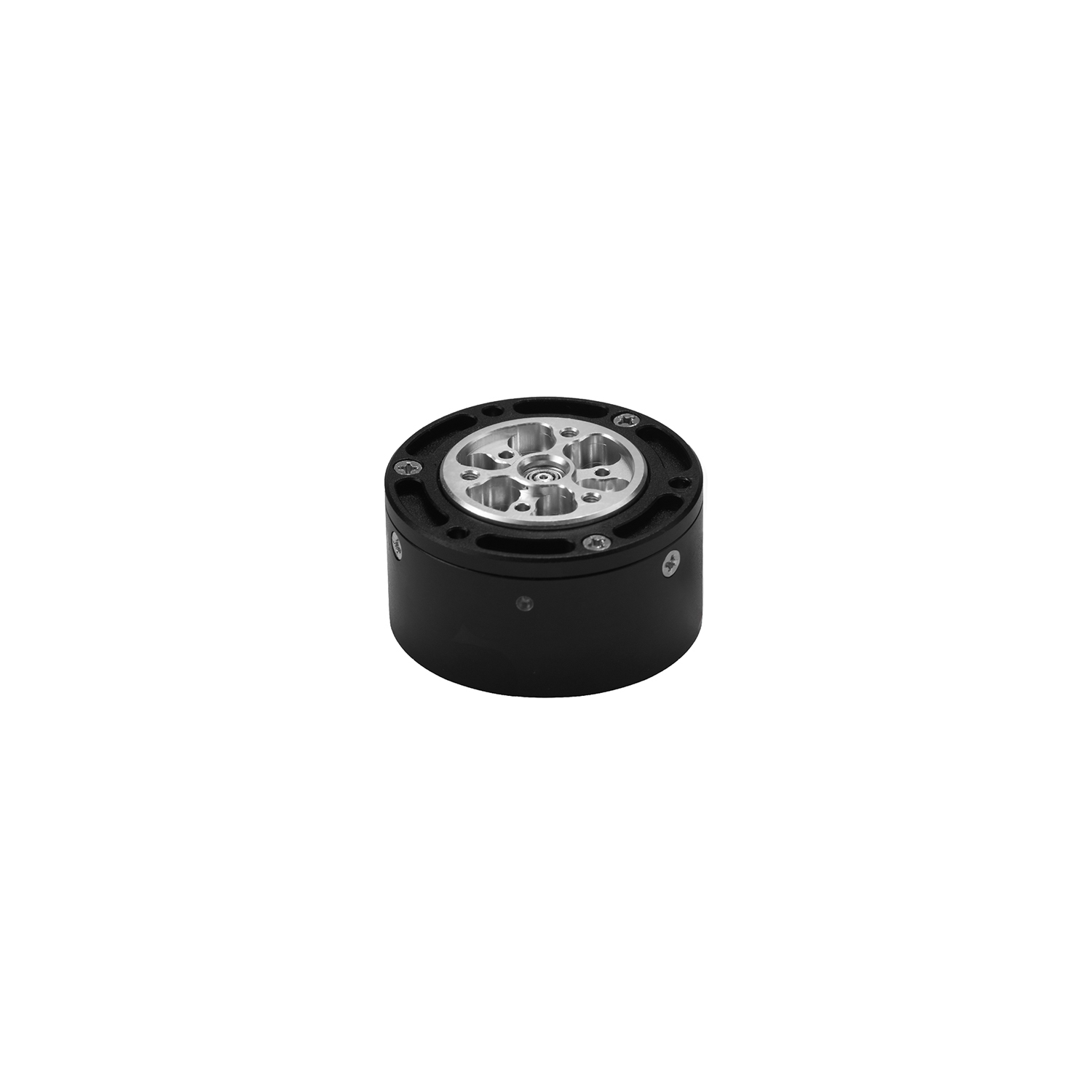

GIM3505-8

Model： GIM3505-8
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

‍GIM3505-8 installation drawing‍

GIM3505-8 with driver installation drawing

GIM3505-8 3D model‍


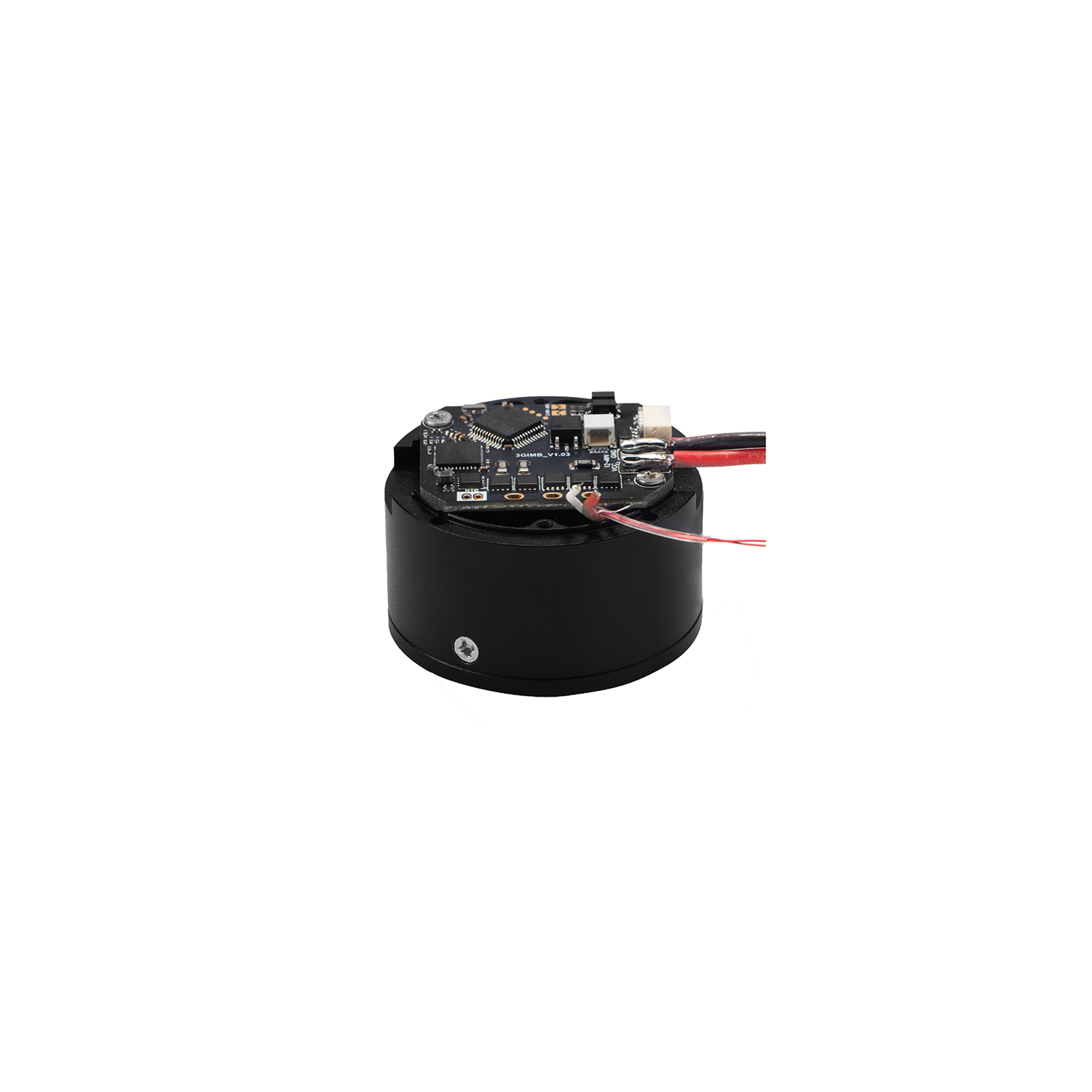

GIM3505-8
驱动板型号(Driver Model)
/SDC101
额定电压(Nominal Voltage)V24
电压范围(Voltage Range)V12~36
功率(Power)
W
29
额定扭矩(Nominal Torque)N.M0.65
堵转扭矩(Stall Torque)N.M1.27
减速后额定转速(Nominal Speed after Reduce)RPM225
减速后最大转速(Max Speed after Reduce)RPM384
额定电流(Nominal Current)A1.2
堵转电流(Stall Current)A2.4
相电阻(Phase Resistance)Ω5.06
相电感(Phase Inductance)mH0.62
转速常数(Speed Constant)rpm/v16
扭矩常数(Torque Constant)N.M/A0.52
极对数(Number of Pole Pairs)Pairs11
减速比(Gear Rate)/8:1
减速器类型(Gear Type)/Planetary
减速器齿轮材料(Reducer Gear Material)/ALU
减速器齿轮背隙(Reducer Gear Backlash)arcmin15
电机重量不带驱动(Motor Weight without Driver)g84
电机重量带驱动(Motor Weight with Driver)g97
电机尺寸不带驱动(Size without Driver)mmØ43*23.6
电机尺寸带驱动(Size with Driver)mmØ43*30
轴向最大负载(Max Axial Load)N75
径向最大负载(Max Radial Load)N300
噪音(Noise)dB＜60
通信协议(Communication)/CAN
第二编码器(Second Encoder)/NO
电机防水防尘等级(Motor Protection Grade)/IP54
工作温度范围(Working Temperature)℃-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit14
是否支持单独编码器(Separate Encoder)/YES
是否支持定制抱闸(Custom Brake)/YES
