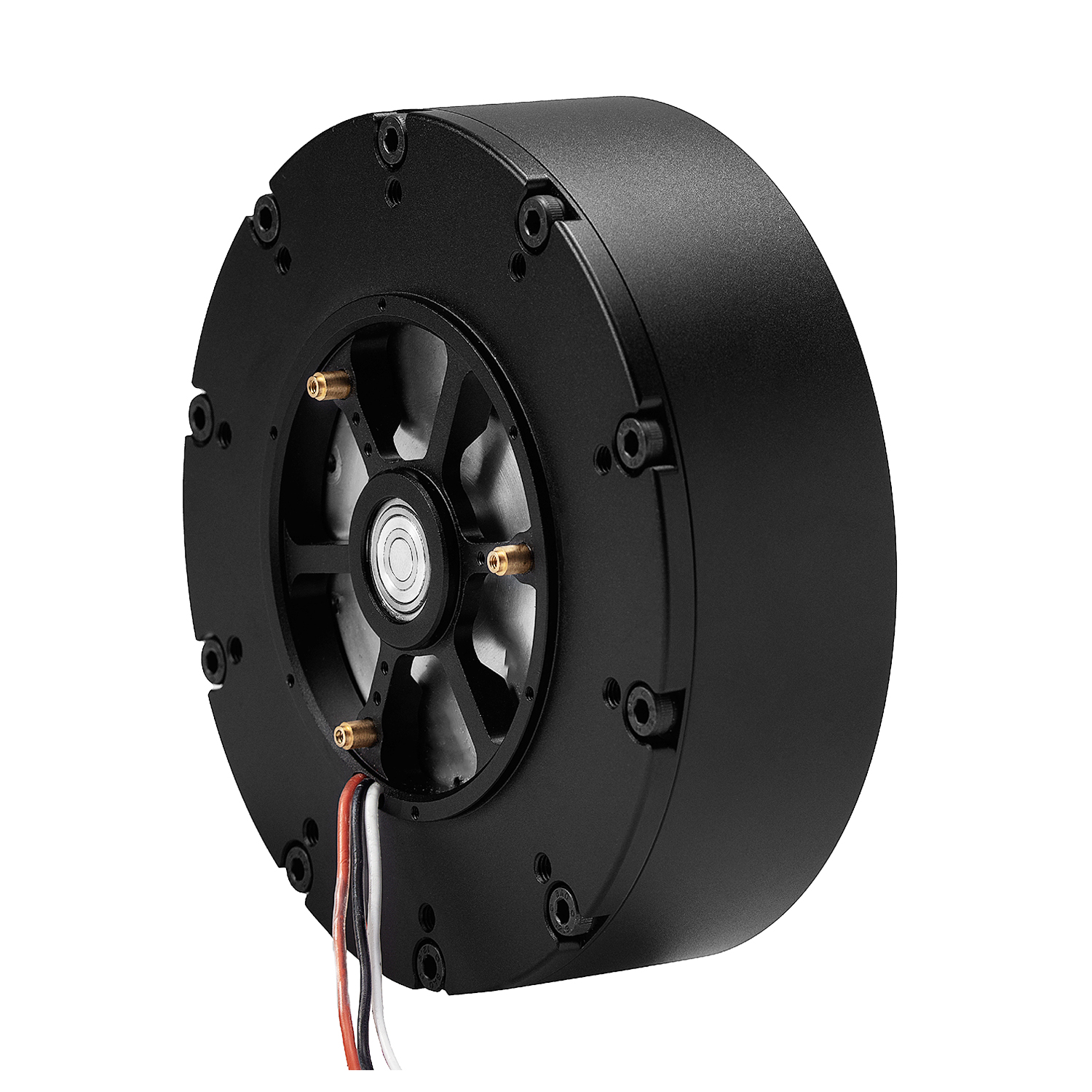

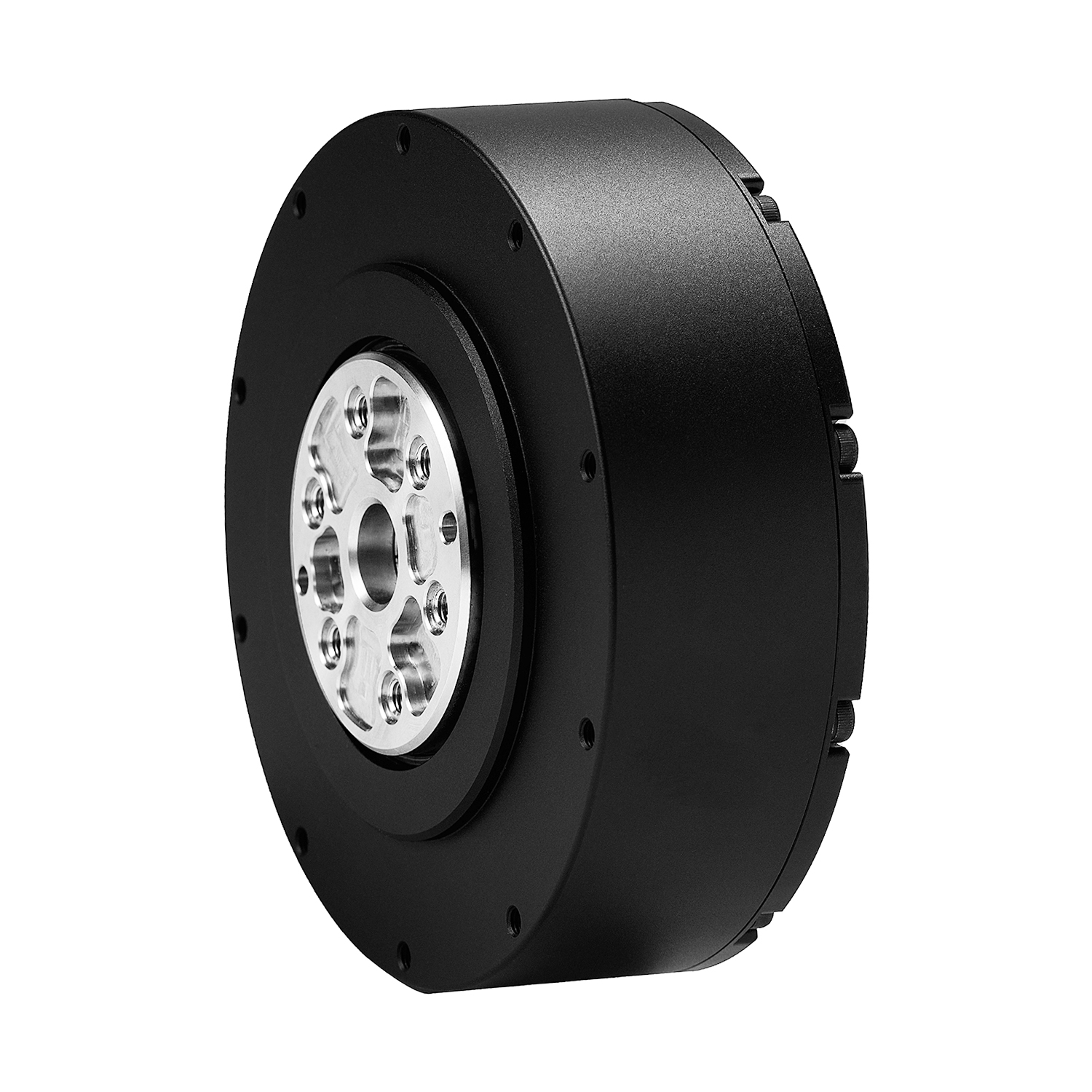

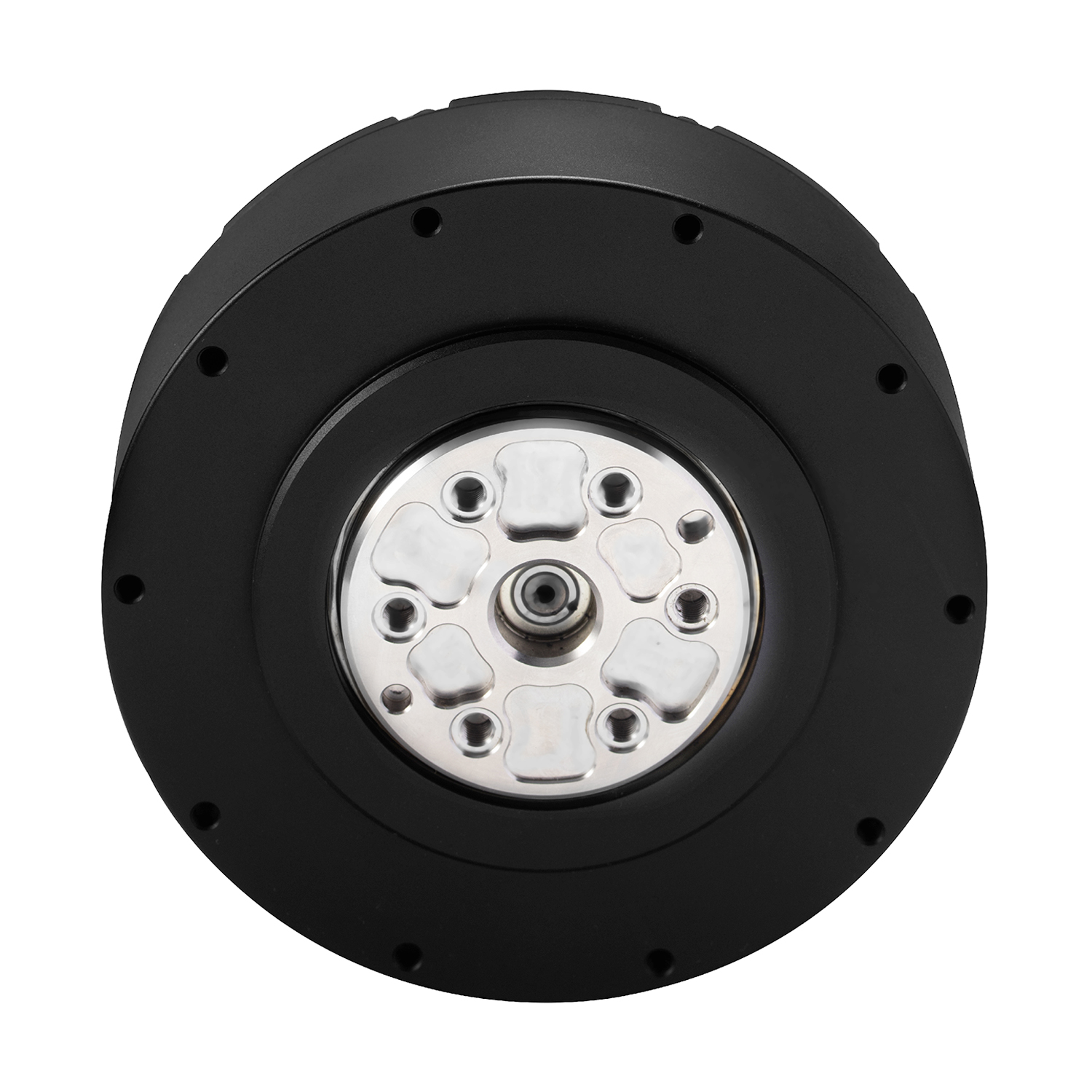

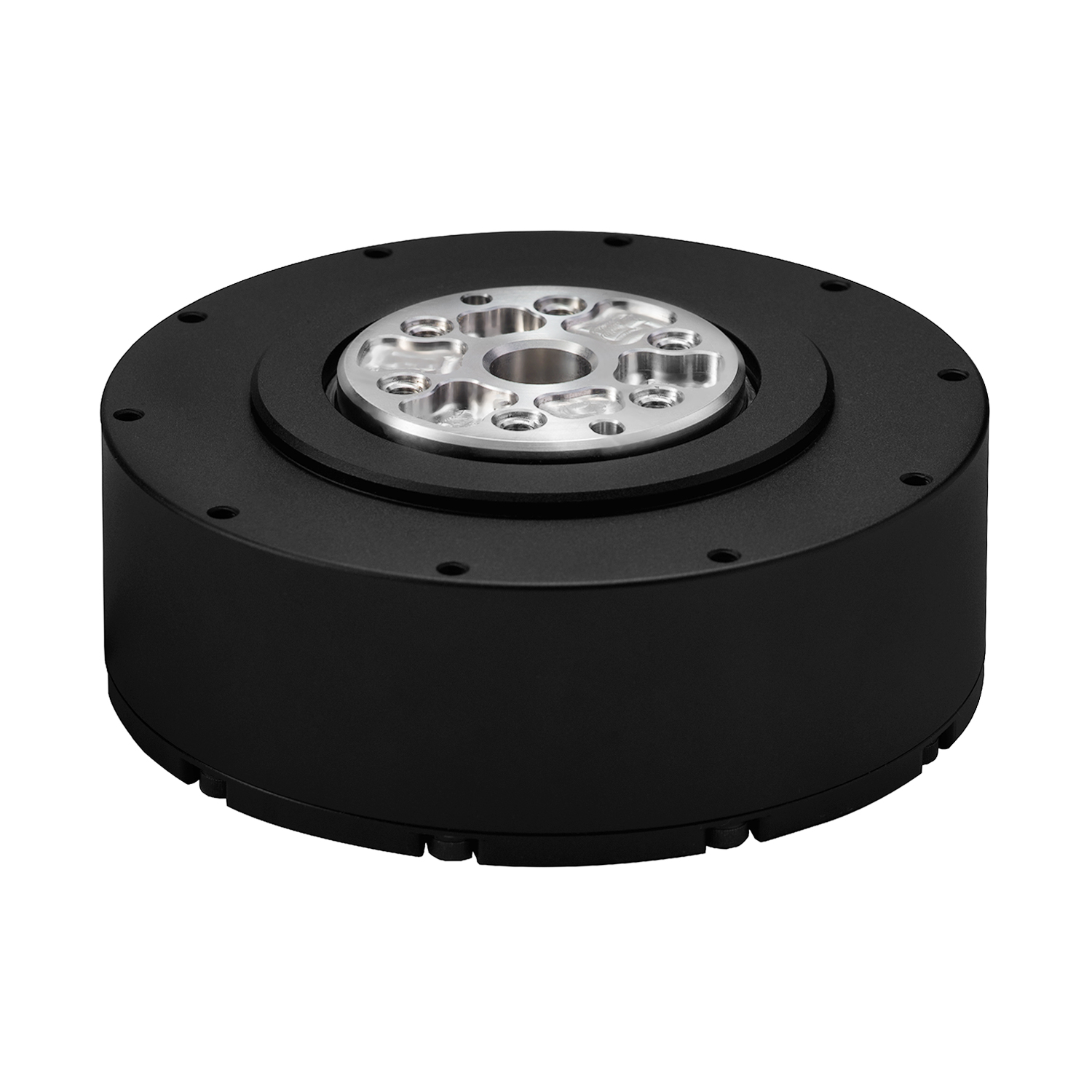

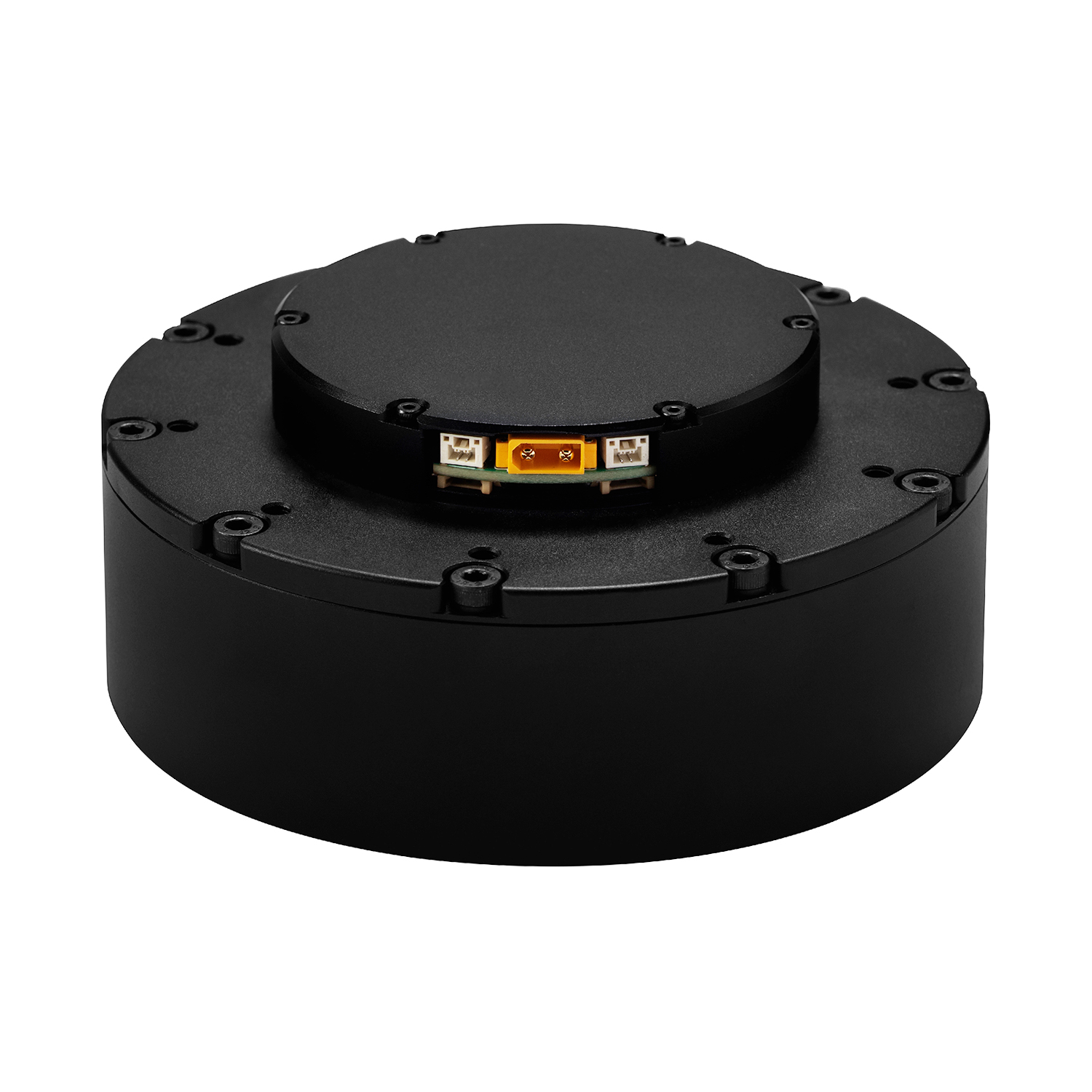

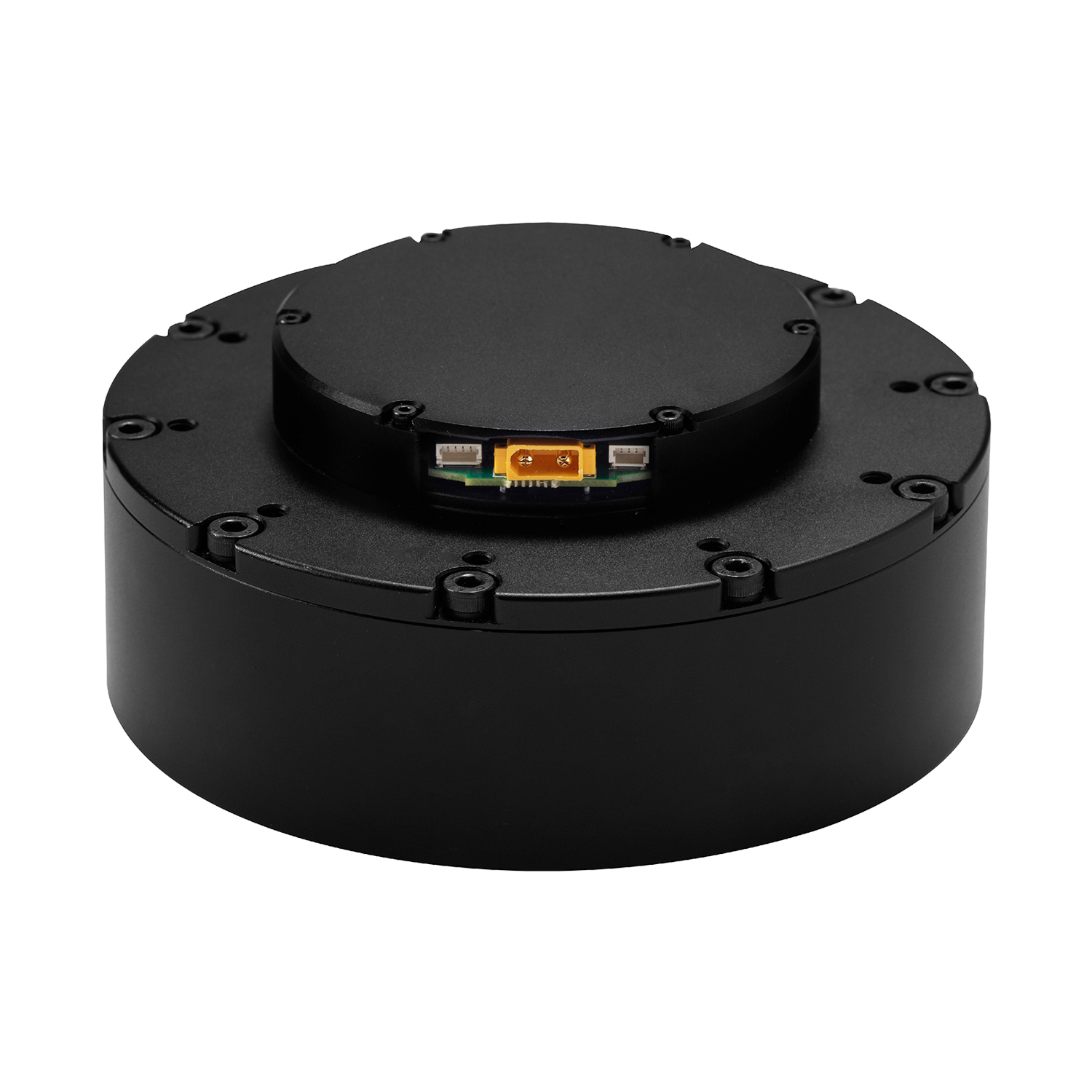

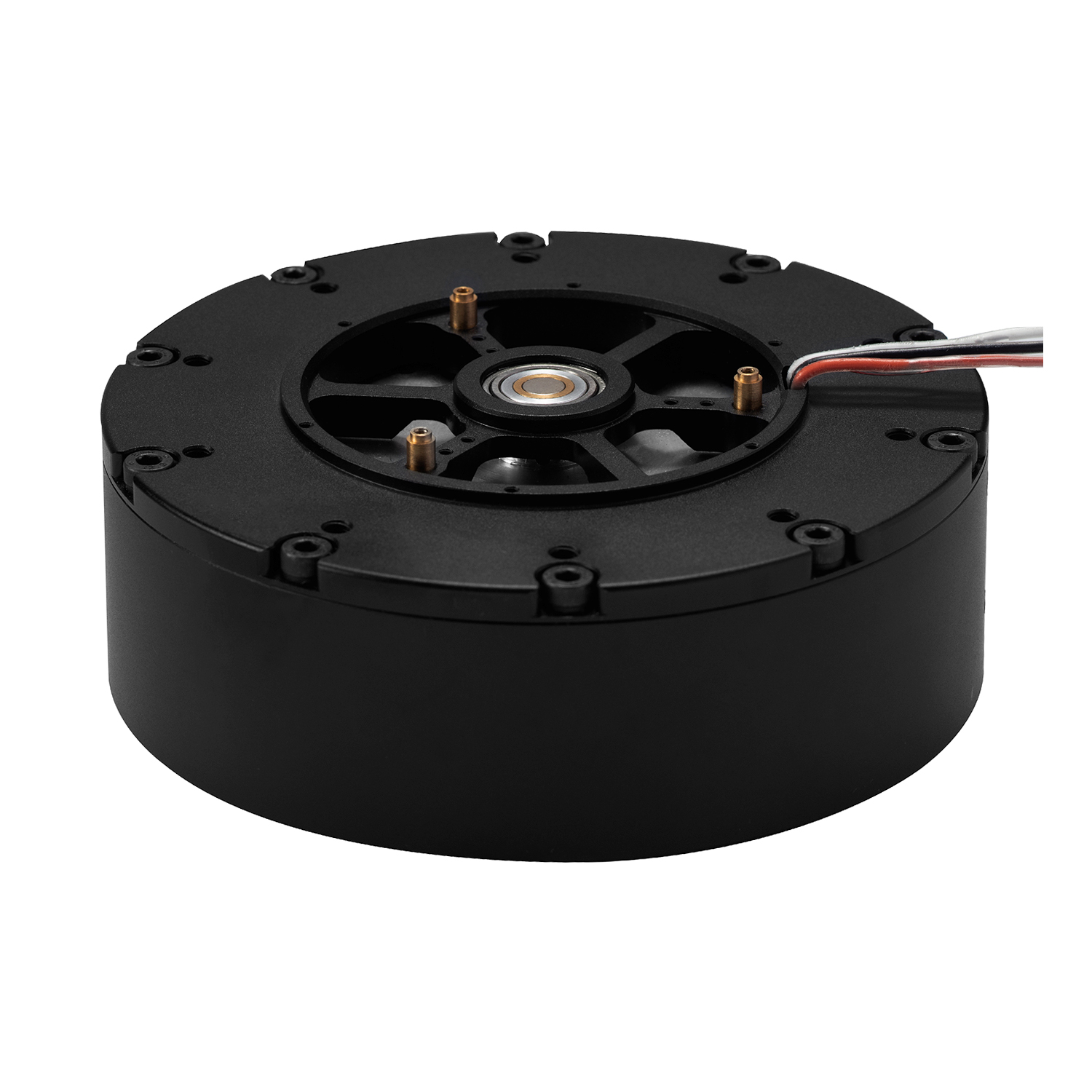

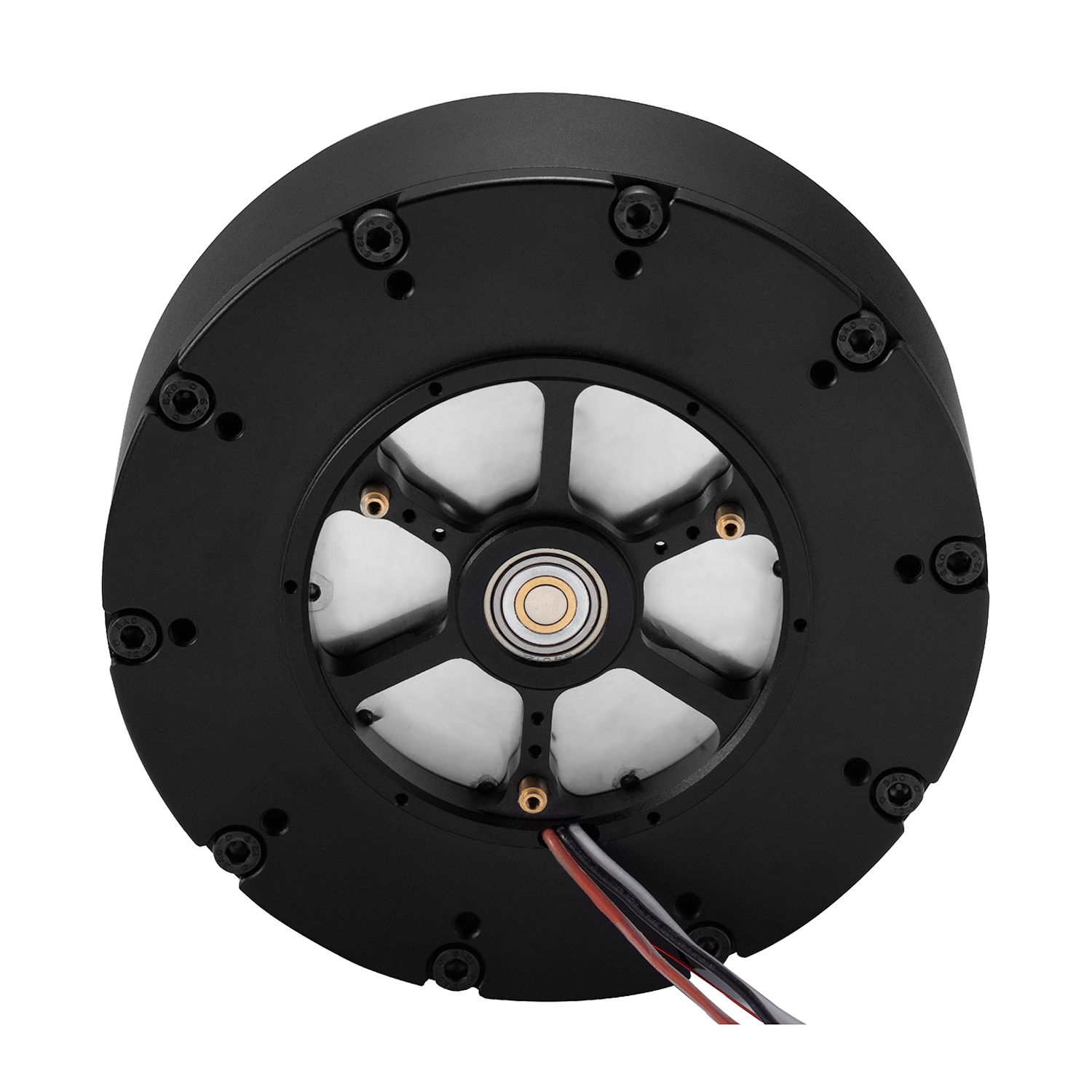

GIM10015-9

Model： GIM10015-9
Brand： SteadyWin
产品详情

    DRAWINGS DOWNLOAD

‍GIM10015-9 installation drawing

GIM10015-9 3D model‍



参数(Parameter)UnitGIM10015-9_24
GIM10015-9_48
绕组方式(Winding Type)/▲Y
驱动板型号(Driver Model)/GDS810GDZ810
额定电压(Nominal Voltage)V2448
电压范围(Voltage Range)V12~4812~48
功率(Power)W341264
额定扭矩(Nominal Torque)N.M3020.5
堵转扭矩(Stall Torque)N.M62.1112
减速后额定转速(Nominal Speed after Reduce)RPM67101
减速后最大转速(Max Speed after Reduce)RPM104114
额定电流(Nominal Current)A14.25.5
堵转电流(Stall Current)A30.239.28
相间电阻(Phase to Phase Resistance)Ω0.280.76
相间电感(Phase to Phase Inductance)mH0.460.42
转速常数(Speed Constant)rpm/v4.332.38
扭矩常数(Torque Constant)N.M/A2.181.5
极对数(Number of Pole Pairs)Pairs2121
减速比(Gear Rate)/9:19:1
减速器类型(Gear Type)/PlanetaryPlanetary
减速器齿轮材料(Reducer Gear Material)/STEELSTEEL
减速器齿轮背隙(Reducer Gear Backlash)arcmin1515
电机重量不带驱动(Motor Weight without Driver)g13251325
电机重量带驱动(Motor Weight with Driver)g13721372
电机尺寸不带驱动(Size without Driver)mmØ120*45Ø120*45
电机尺寸带驱动(Size with Driver)mmØ122*57.5Ø122*57.5
轴向最大负载(Max Axial Load)N12501250
径向最大负载(Max Radial Load)N50005000
噪音(Noise)dB＜60＜60
通信协议(Communication)/

CAN

CAN & RS485
第二编码器(Second Encoder)/NONO
电机防水防尘等级(Motor Protection Grade)/IP54IP54
工作温度范围(Working Temperature)℃-20~+80-20~+80
板载编码器精度(Resolution of Encoder on Driver)Bit

14

14
是否支持单独编码器(Separate Encoder)/NO
NO
是否支持定制抱闸(Custom Brake)/YES
YES
